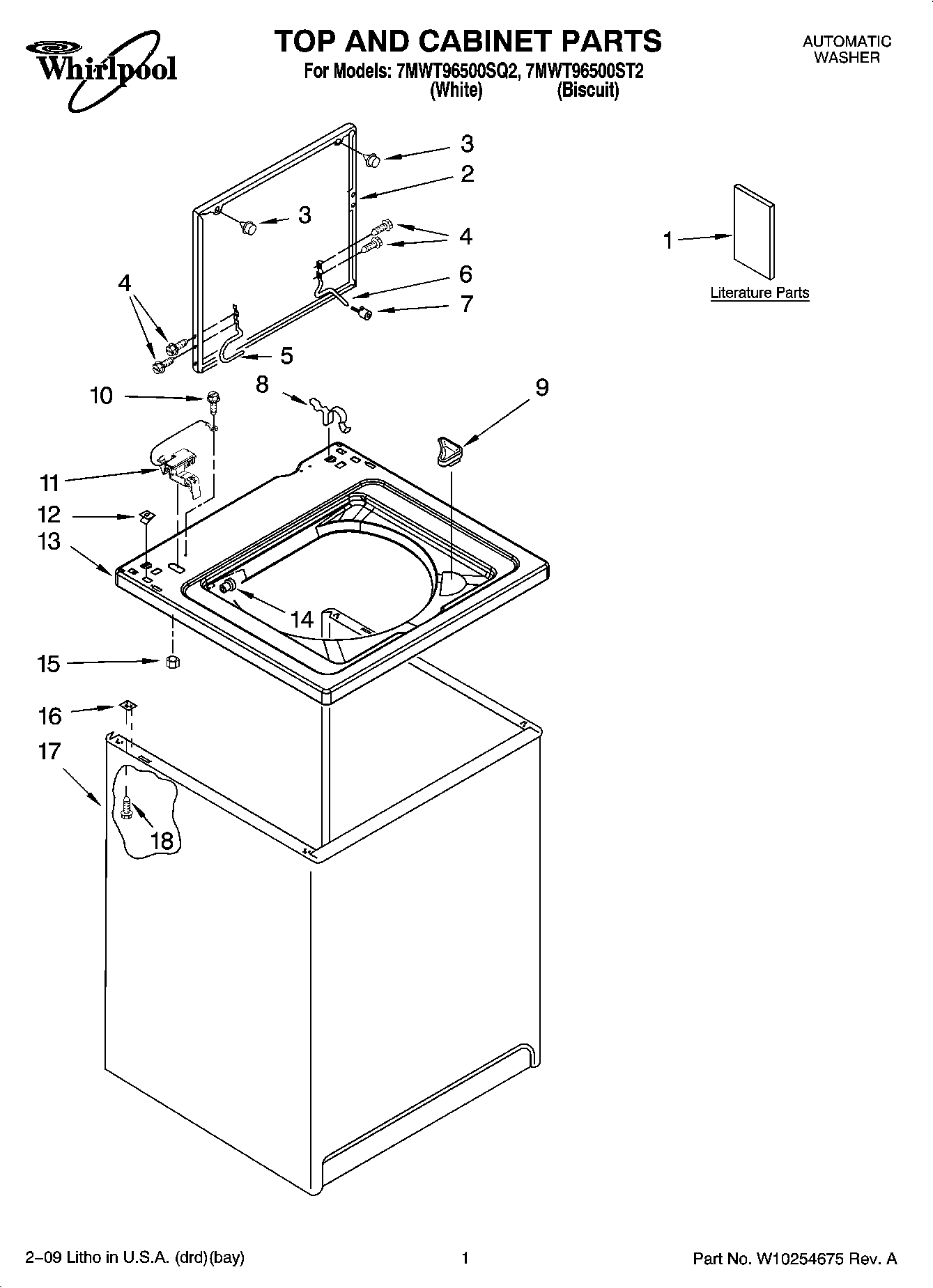

7MWT96500SQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
1Feature Sheet
1Energy Guide (Mexico)
2Lid (Biscuit)
2WPW10193857 Whirlpool Lid Assembly
3WP9724509 Whirlpool Bumper
4SCREW
5Hinge, Lid (L.H.)
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP62780 Whirlpool Cabinet Clip
9WP3362952 Whirlpool Bezel
10WP3351614 Whirlpool Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP357213 Whirlpool Hinge Stopper
13Top (Biscuit)
13Top (White)
14WP21258 Whirlpool Washer Lid Hinge Bearing
15W10080180 Whirlpool Nut
16WP62750 Whirlpool Spacer
1763424 Whirlpool Cabinet Assembly
17Cabinet (Biscuit)
18WP3390631 Whirlpool Screw
