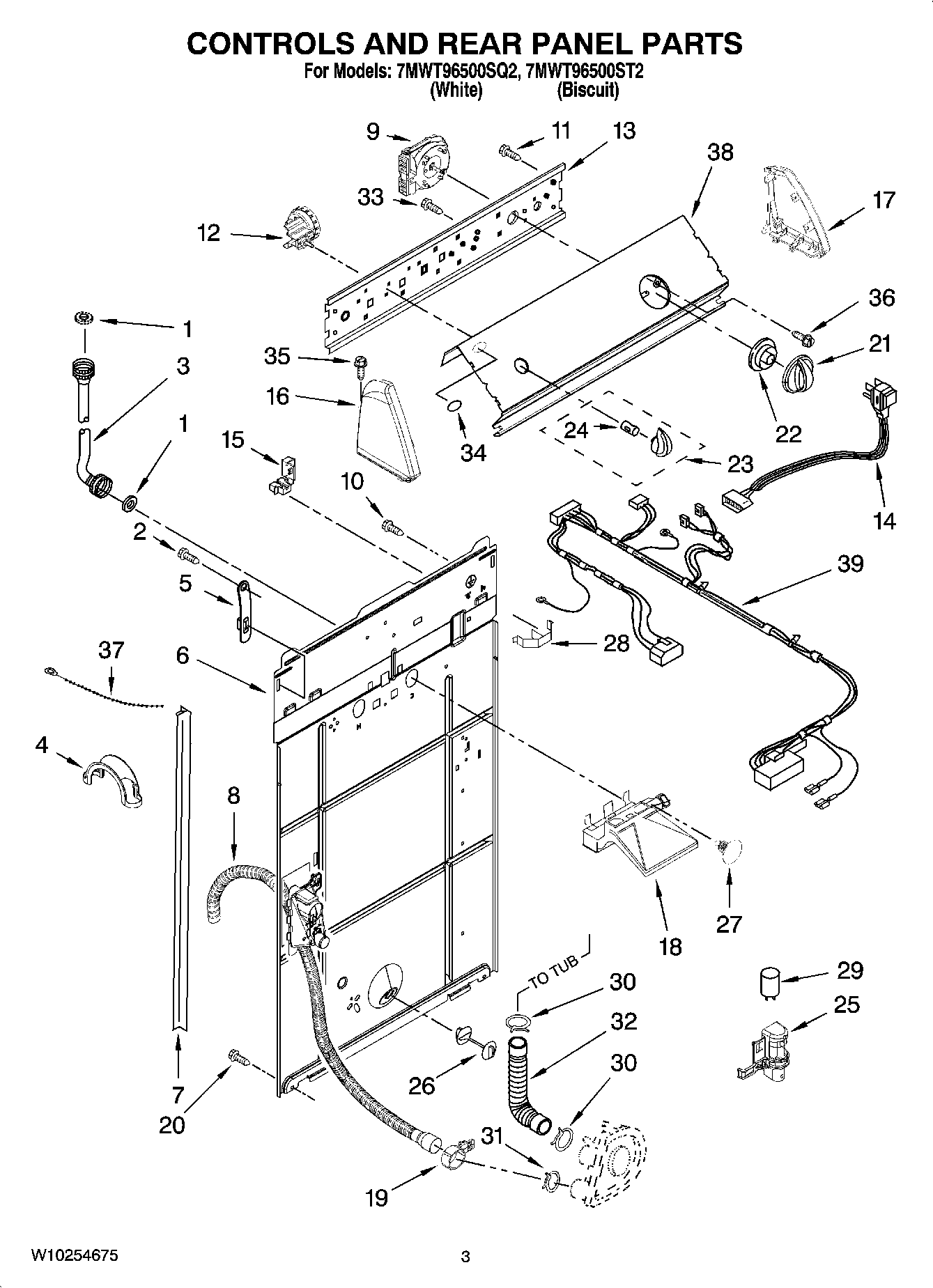

7MWT96500SQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339334 Whirlpool Washer Water Level Control Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	W10820038 Whirlpool Endcap
17	WPL 8271362
18	VALVE, WATER INLET W/VACUUM BREAK (SNGL PORT)
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	W10034740 Whirlpool Knob Assembly
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control (B
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	Clip, Capacitor
26	WP8519200 Whirlpool Support Assembly
27	Clip, Push-In Retainer
28	Clip, Harness & Pressure Hose
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
34	WPL 3400985
35	WP388326 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	WPW10339879 Whirlpool Wire Tie
38	Panel, Console (Includes Item 34) (White)
38	Panel, Console (Includes Item 34) (Biscuit)
39	Harness, Wiring (For Detail See Page 9 &
