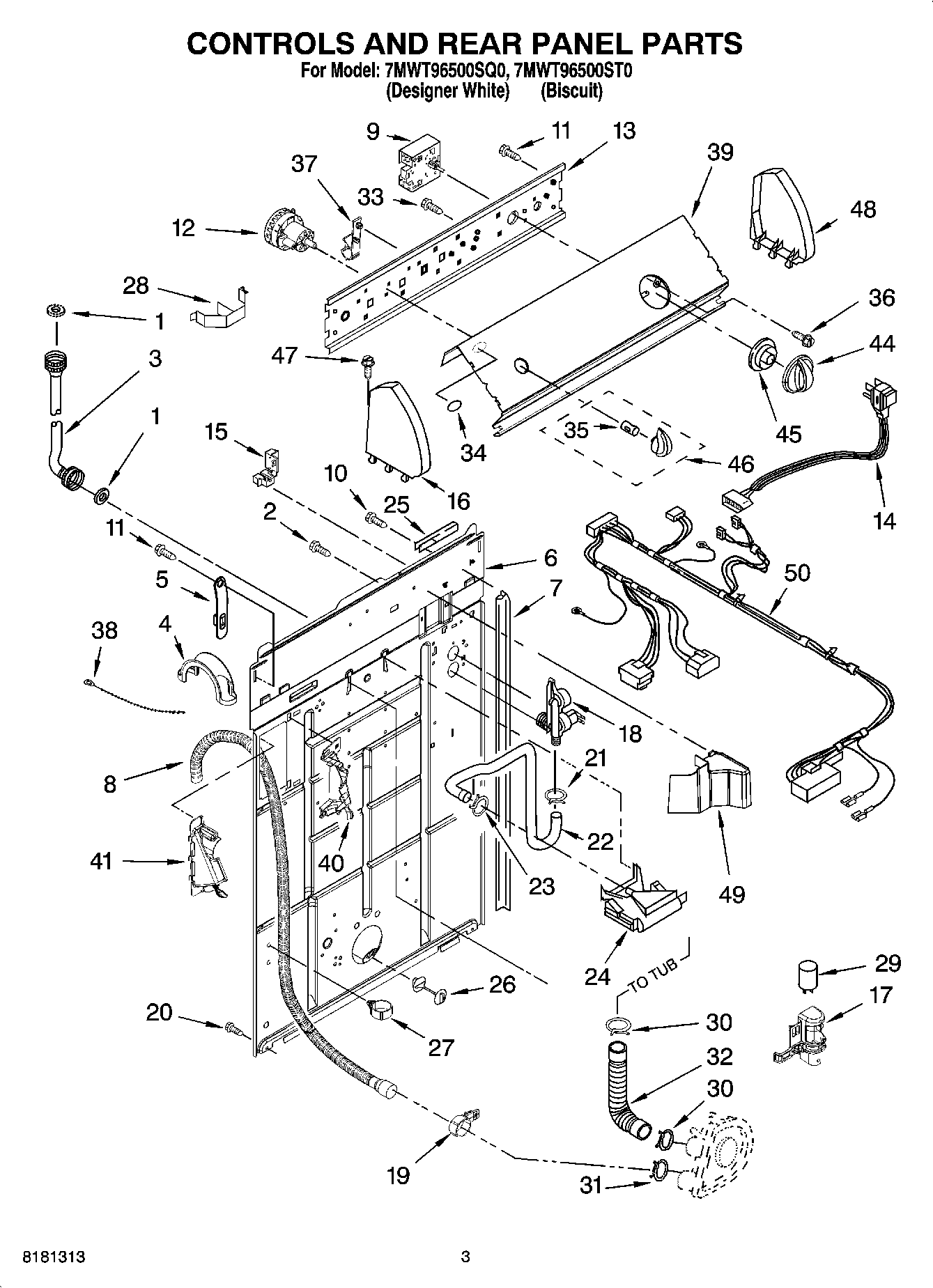

7MWT96500ST0 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
7MWT96500ST0 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
WP9740848 Whirlpool Dishwasher Screw
3
WP89503 Whirlpool Washer Fill Hose
4
WP8577378 Whirlpool Retainer
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
9
WP8542377 Whirlpool Timer
10
WP3351614 Whirlpool Screw
11
WP90767 Whirlpool Screw
12
SWITCH-WL
13
Bracket, Control
14
WP8559419 Whirlpool Power Cord
15
Strain Relief, Power Cord
16
Cap, End (L.H.) (Biscuit)
17
Clip, Capacitor
18
WP8541697 Whirlpool Valve
19
8541668 Whirlpool Washer Clamp
20
WP3390631 Whirlpool Screw
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
Edge Protector
26
WP8519200 Whirlpool Support Assembly
27
Clamp, Hose
28
Clip, Harness & Pressure Hose
29
CAPACITOR
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
3400073 Whirlpool Screw
34
WPL 3400985
35
WP8536939 Whirlpool Spring Clip
36
WP3400818 Whirlpool Screw
37
Retainer, Harness
38
WPW10339879 Whirlpool Wire Tie
39
Panel, Console (White)
39
Panel, Console (Biscuit (Includes Item 34))
41
WPW10096921 Whirlpool Hose
44
W10034740 Whirlpool Knob Assembly
44
Knob, Timer
45
WP8566018 Whirlpool Dial Assembly
46
Knob, Control
46
Knob, Control (B
47
WP388326 Whirlpool Screw
48
W10820038 Whirlpool Endcap
48
Cap, End (R.H.) (Biscuit)
49
Sh
50
Wiring, Harness (For Detail See Page 9 & 10)
←
