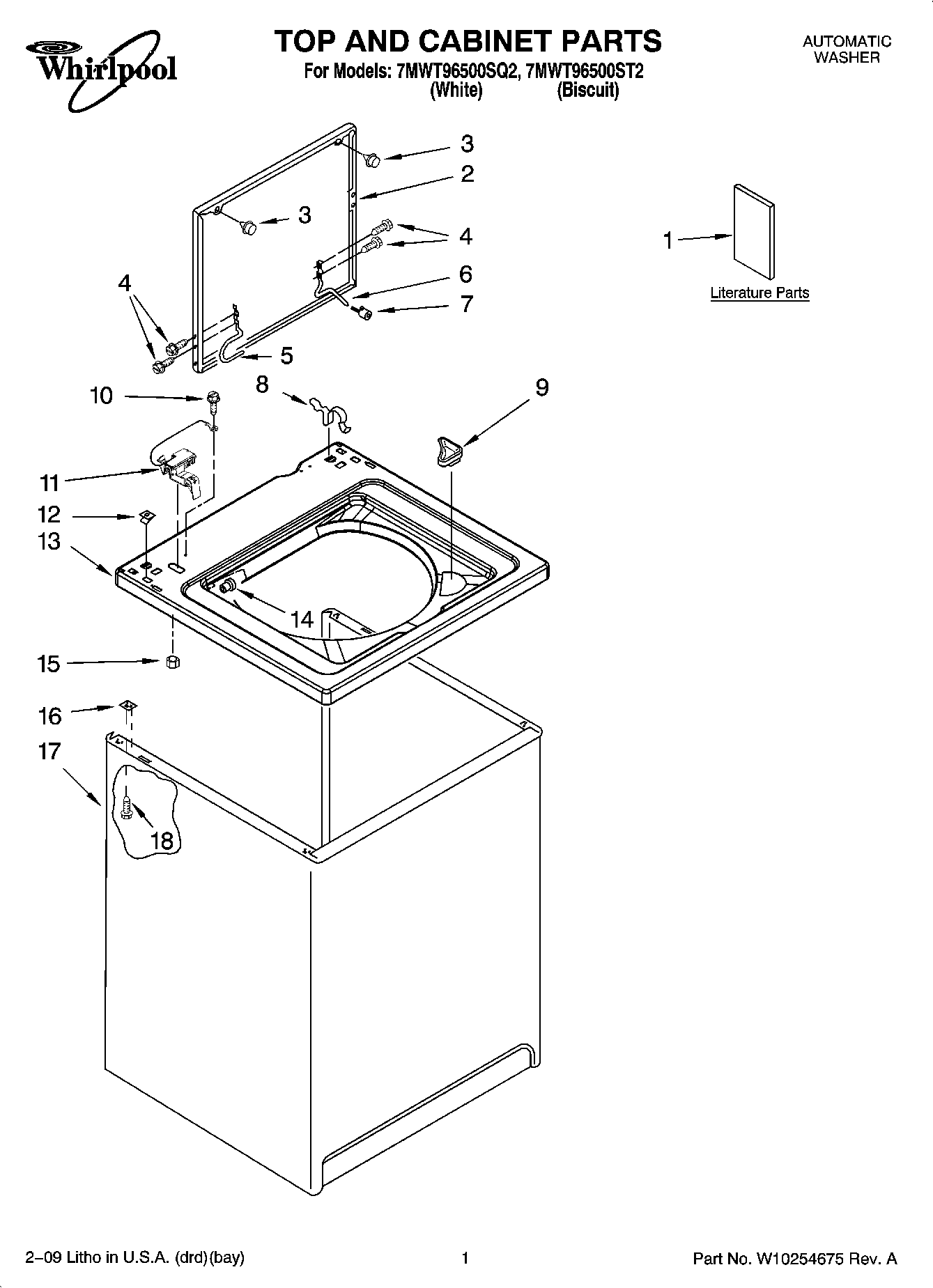

7MWT96500ST2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
1	Feature Sheet
1	Energy Guide (Mexico)
2	Lid (Biscuit)
2	WPW10193857 Whirlpool Lid Assembly
3	WP9724509 Whirlpool Bumper
4	SCREW
5	Hinge, Lid (L.H.)
6	WP54583 Whirlpool Hinge
7	Bumper, Lid Hinge
8	WP62780 Whirlpool Cabinet Clip
9	WP3362952 Whirlpool Bezel
10	WP3351614 Whirlpool Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP357213 Whirlpool Hinge Stopper
13	Top (Biscuit)
13	Top (White)
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	W10080180 Whirlpool Nut
16	WP62750 Whirlpool Spacer
17	63424 Whirlpool Cabinet Assembly
17	Cabinet (Biscuit)
18	WP3390631 Whirlpool Screw
