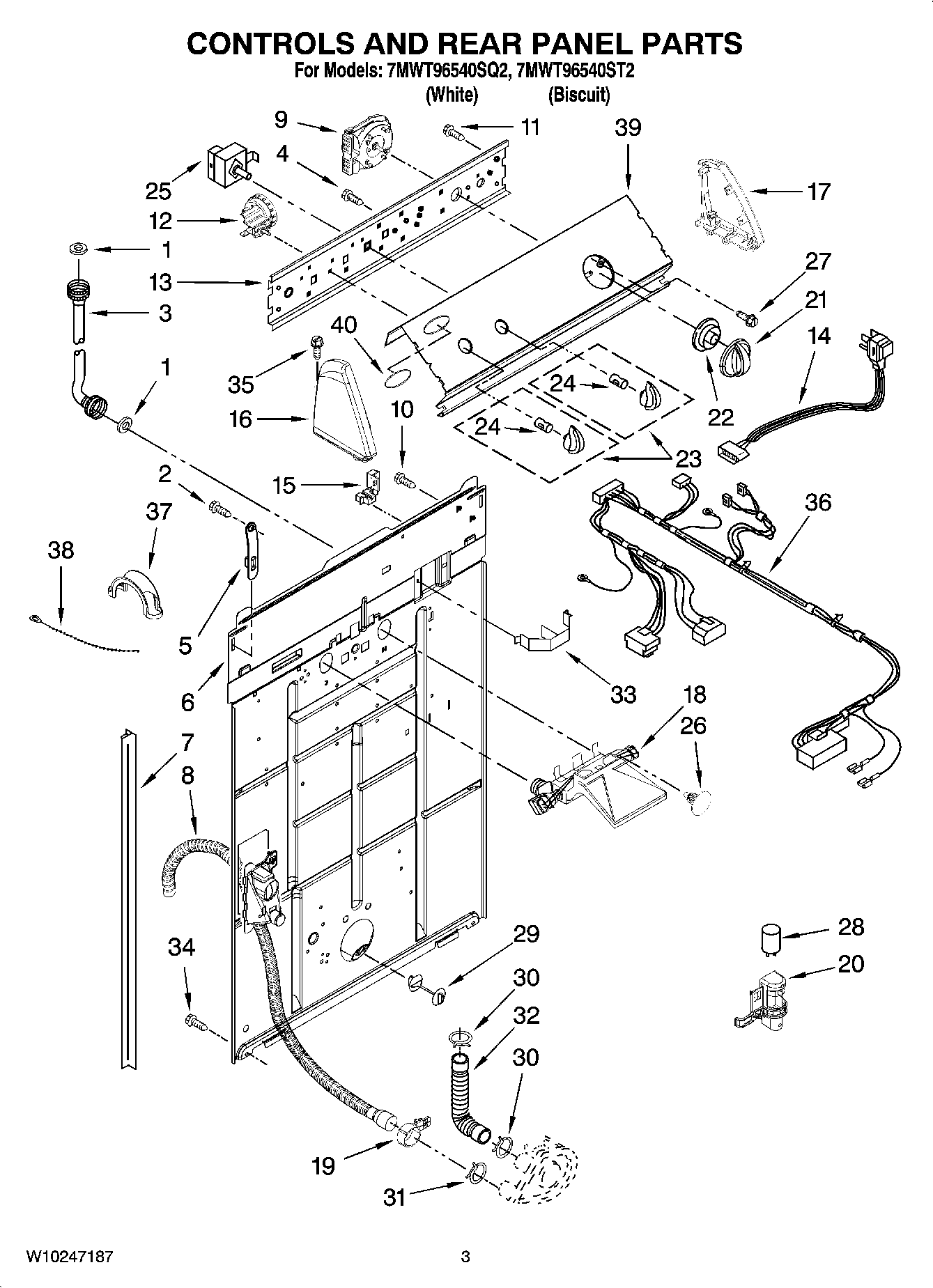

7MWT96540SQ2 02 – CONTROLS AND REAR PANEL PARTS

7MWT96540SQ2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MWT96540SQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6WPW10194450 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9WPW10199989 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339251 Whirlpool Washer Water Level Control Pressure Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16W10820038 Whirlpool Endcap
17WPL 8271362
17Cap, End (L.H.) (BIscuit)
18BREAK, VACUUM
198541668 Whirlpool Washer Clamp
20Clip, Capacitor
21Knob, Timer
21W10034740 Whirlpool Knob Assembly
22WP8566018 Whirlpool Dial Assembly
23Knob, Control
23Knob, Control (B
24WP8536939 Whirlpool Spring Clip
25Clip, Push-In Retainer
26WPW10168256 Whirlpool Temperature Switch
27WP3400818 Whirlpool Screw
28CAPACITOR
29WP8519200 Whirlpool Support Assembly
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34WP3390631 Whirlpool Screw
35WP388326 Whirlpool Screw
36HARNESS, WIRING
37WP8577378 Whirlpool Retainer
38WPW10339879 Whirlpool Wire Tie
39Panel, Cons
39WPL W10222536
40WPL 3400985
