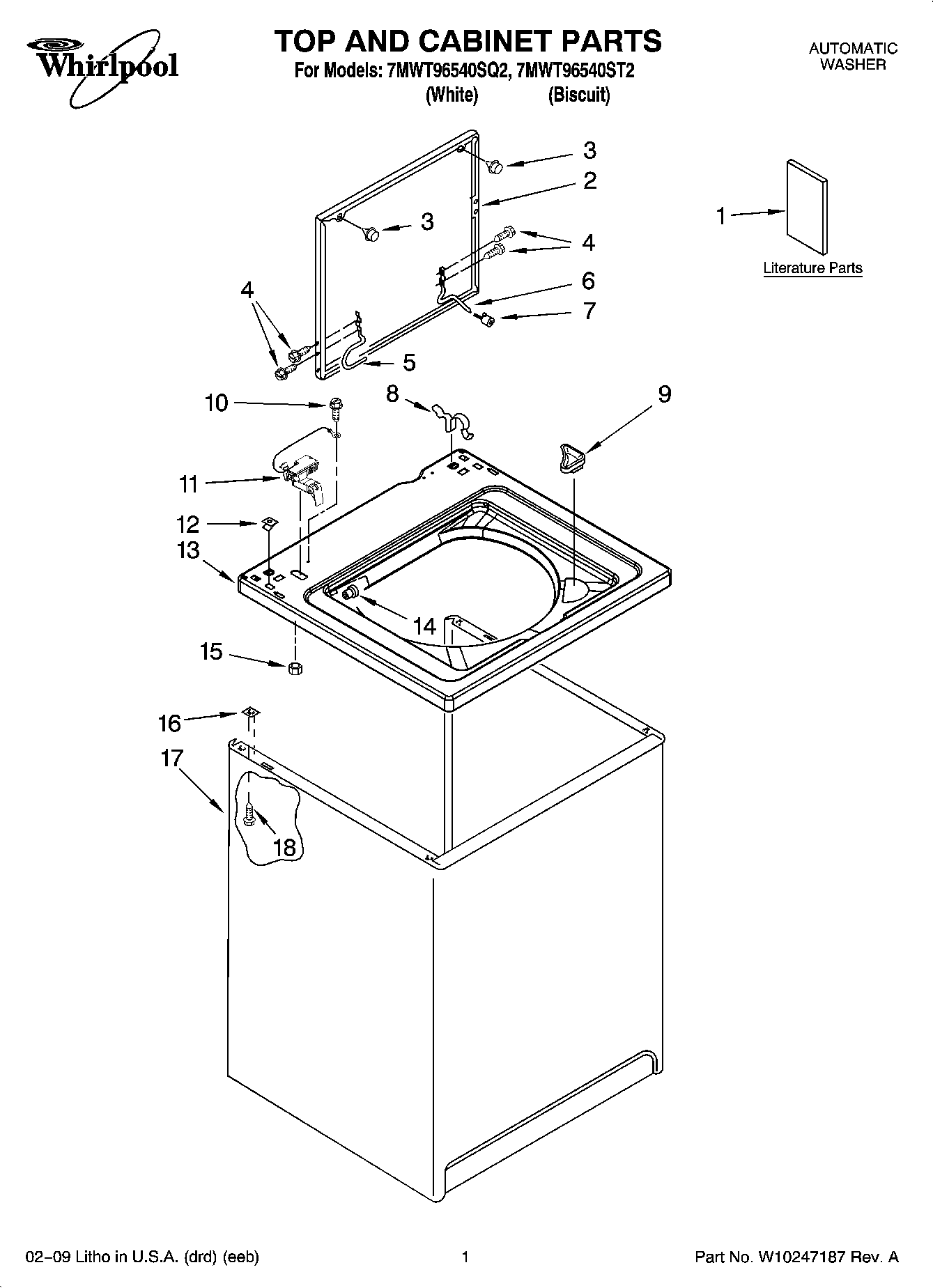

7MWT96540ST2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
1	Wiring Diagram
1	Energy Guide (Mexico)
2	WPW10193857 Whirlpool Lid Assembly
2	Lid (Biscuit)
3	WP9724509 Whirlpool Bumper
4	SCREW
5	Hinge, Lid (L.H.)
6	WP54583 Whirlpool Hinge
7	Bumper, Lid Hinge
8	WP62780 Whirlpool Cabinet Clip
9	WP3362952 Whirlpool Bezel
10	WP3351614 Whirlpool Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	WP357213 Whirlpool Hinge Stopper
13	Top (Biscuit)
13	Top (White)
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	W10080180 Whirlpool Nut
16	WP62750 Whirlpool Spacer
17	Cabinet (Biscuit)
17	63424 Whirlpool Cabinet Assembly
18	W10165554 Whirlpool Screw
