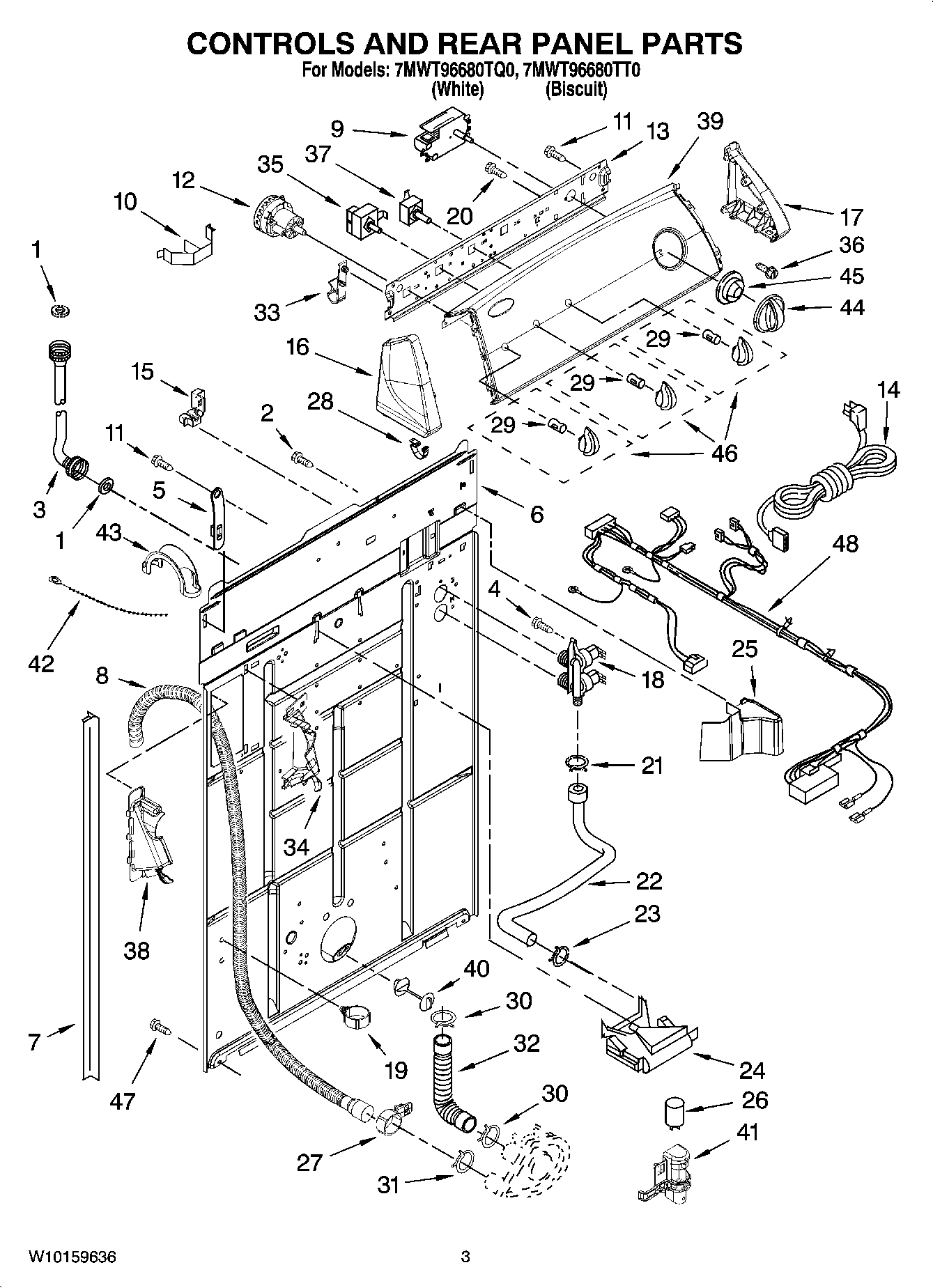

7MWT96680TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3351614 Whirlpool Screw
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3949208 Whirlpool Timer
10	Clip, Harness & Pressure Hose
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
16	Cap, End (L.H.) (Biscuit)
17	WP8565954 Whirlpool Endcap
17	Cap, End (R.H.) (Biscuit)
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	3400073 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Sh
26	CAPACITOR
27	8541668 Whirlpool Washer Clamp
28	WP8312709 Whirlpool Endcap Clip
29	WP8536939 Whirlpool Spring Clip
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Retainer, Harness
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	W10851055 Whirlpool Cycle Switch
38	WPW10096921 Whirlpool Hose
39	Panel, Console (White)
39	P
40	WP8519200 Whirlpool Support Assembly
41	Clip, Capacitor
42	WPW10339879 Whirlpool Wire Tie
43	WP8577378 Whirlpool Retainer
44	Knob, Timer
44	W10034740 Whirlpool Knob Assembly
45	WP8566018 Whirlpool Dial Assembly
46	Knob, Control
46	Knob, Control (B
47	WP3390631 Whirlpool Screw
48	WPL 3956729
