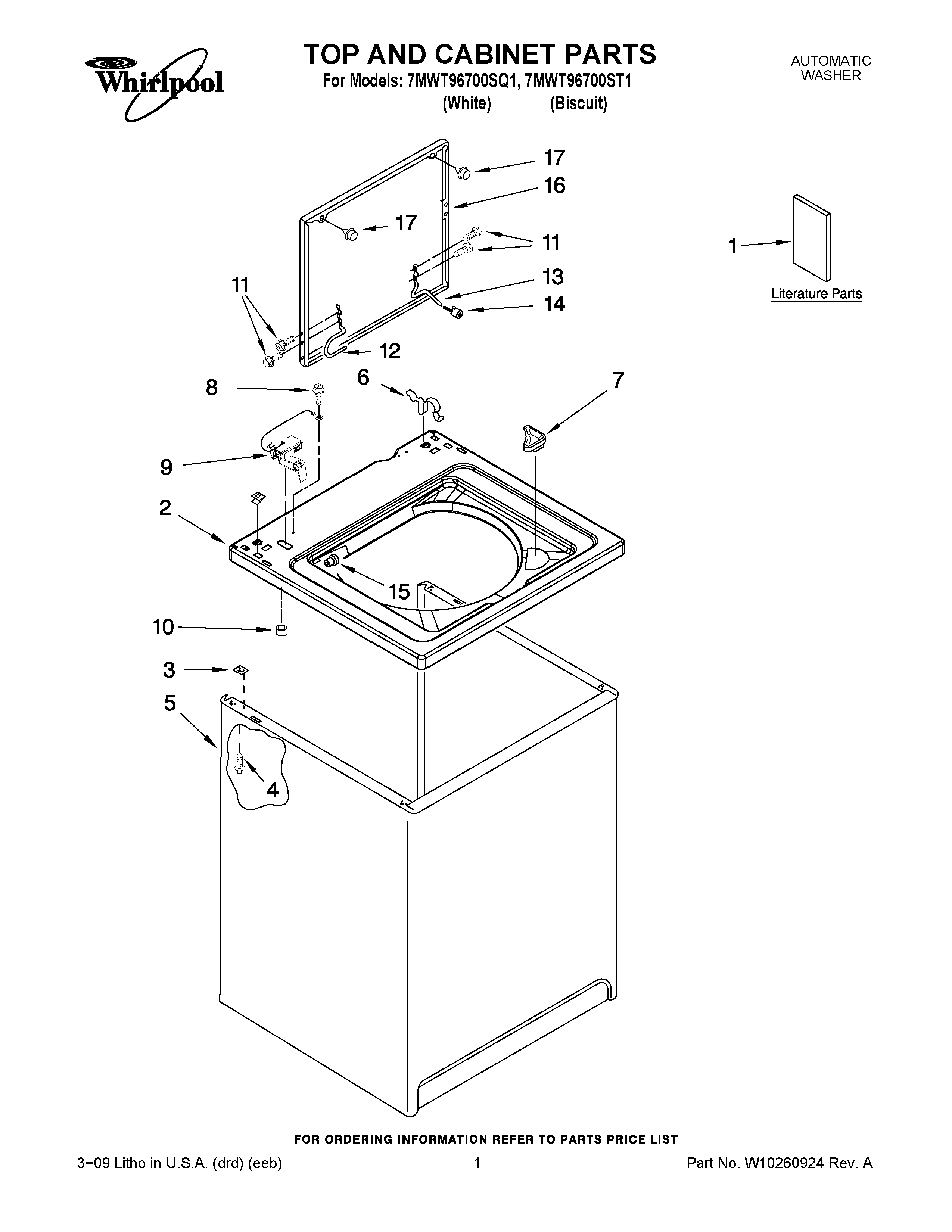

7MWT96700ST1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Energy Guide (Mexico)
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
2	Top (Biscuit)
2	TOP
3	WP62750 Whirlpool Spacer
4	W10165554 Whirlpool Screw
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	WP3362952 Whirlpool Bezel
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	W10080180 Whirlpool Nut
11	SCREW
12	Hinge, Lid (L.H.)
13	WP54583 Whirlpool Hinge
14	Bumper, Lid Hinge
15	WP21258 Whirlpool Washer Lid Hinge Bearing
16	WPW10193857 Whirlpool Lid Assembly
16	Lid (Biscuit)
17	WP9724509 Whirlpool Bumper
