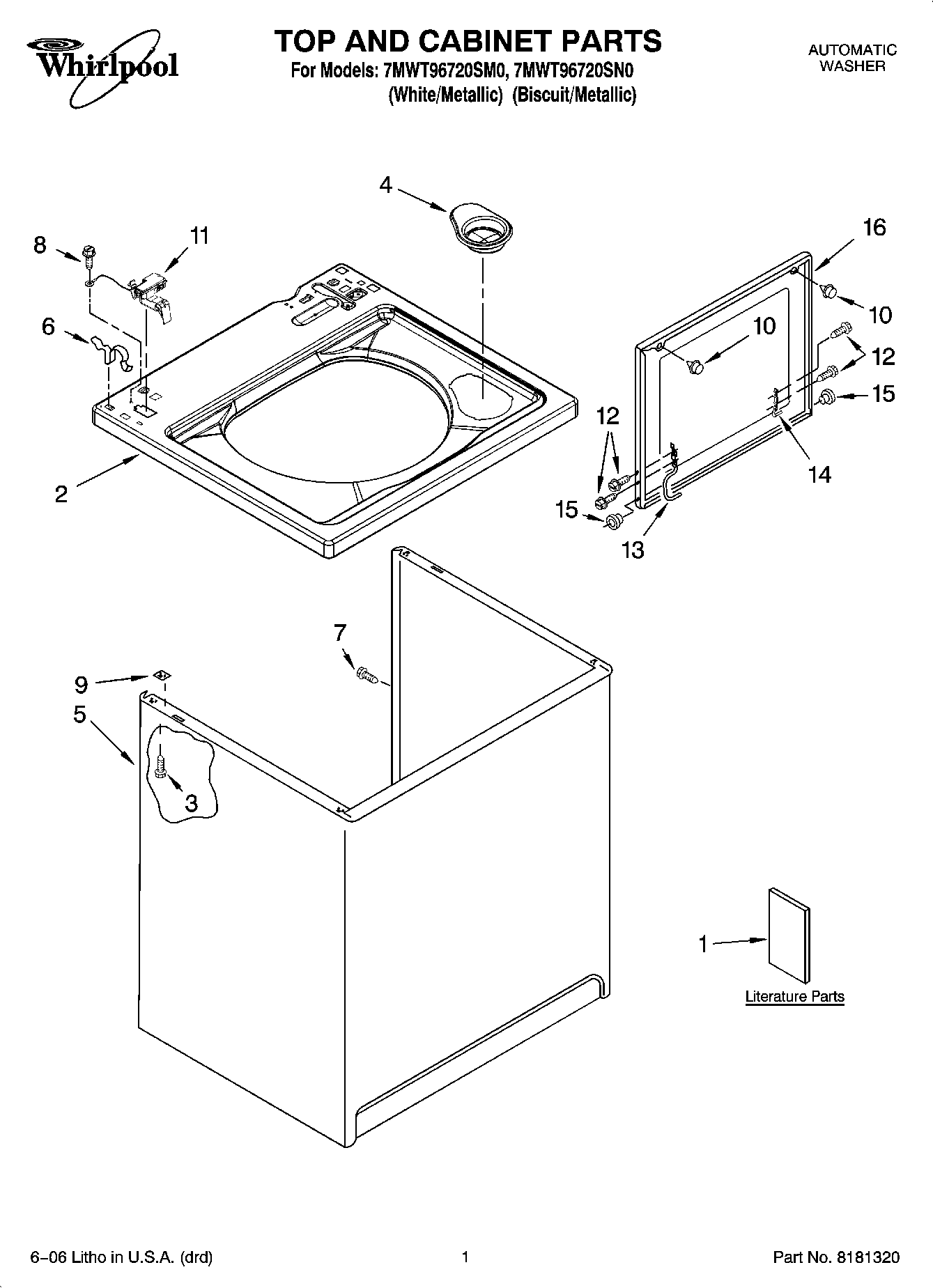

7MWT96720SM0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Wiring Diagram
1Use & Care Guide
1Energy Guide (Mexico)
1Feature Sheet
2Top
2Top
3WP3390631 Whirlpool Screw
4Dispenser, Bleach
563424 Whirlpool Cabinet Assembly
5Cabinet (Biscuit)
6WP62780 Whirlpool Cabinet Clip
7WP308685 Whirlpool Microwave Screw
8WP3351614 Whirlpool Screw
9WP62750 Whirlpool Spacer
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12SCREW
13Hinge, Lid (L.H.)
14WP91770 Whirlpool Hinge
15Bearing, Lid Hinge (2)
16Lid
16Lid (Biscuit)
