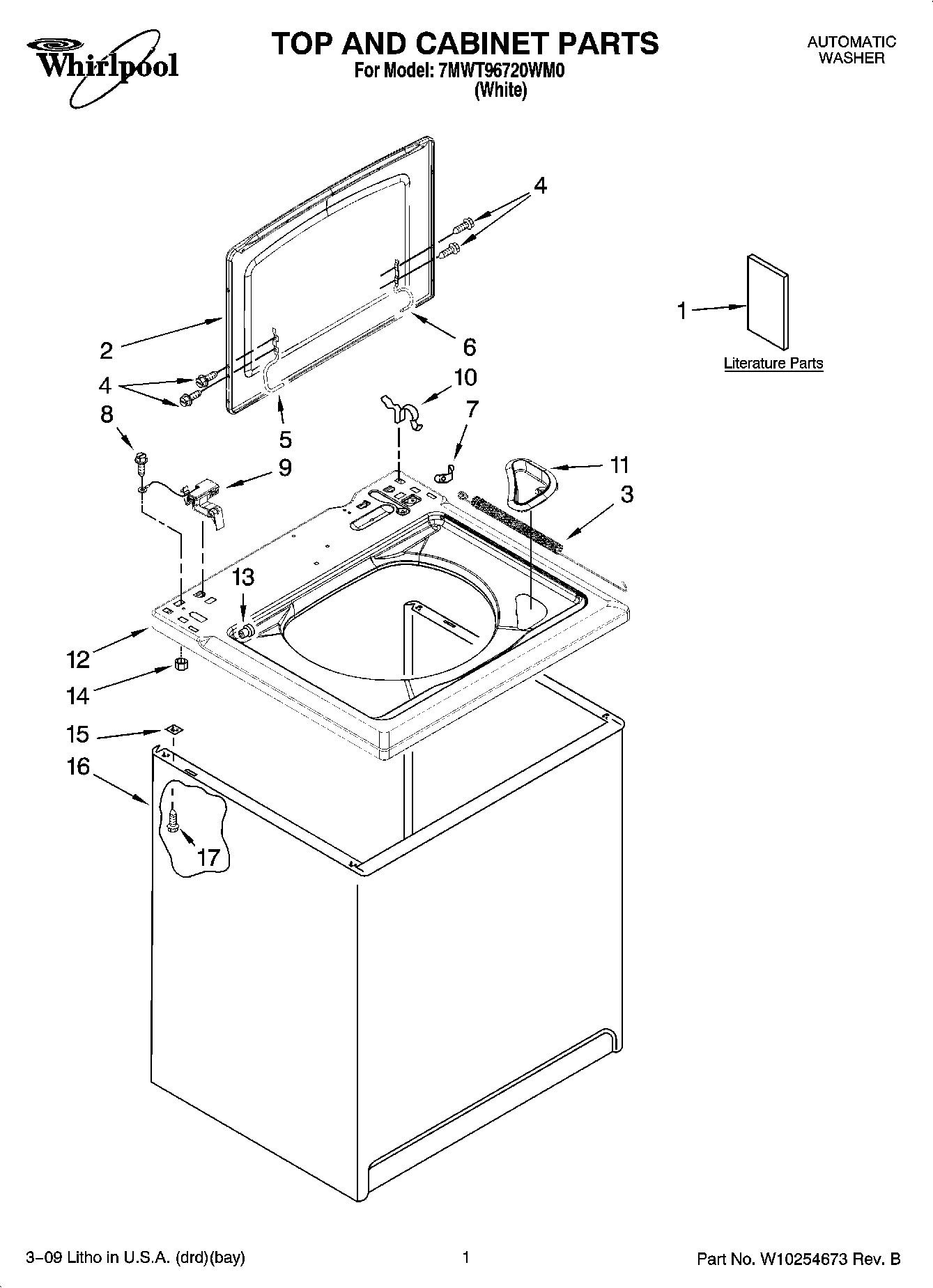

7MWT96720WM0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Energy Guide (Mexico)
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions
2	WPW10164516 Whirlpool Lid Assembly
3	W10208782 Whirlpool Spring
4	SCREW
5	Hinge, Lid (L.H.)
6	W10202542 Whirlpool Hinge
7	Clip, Retainer
8	WP3351614 Whirlpool Screw
9	WP8318084 Whirlpool Washer Lid Switch Assembly
10	WP62780 Whirlpool Cabinet Clip
11	WPW10192089 Whirlpool Washer Bleach Dispenser
12	Top (White)
13	Bearing, Lid Hinge (2)
14	W10080180 Whirlpool Nut
15	WP62750 Whirlpool Spacer
16	63424 Whirlpool Cabinet Assembly
17	W10165554 Whirlpool Screw
