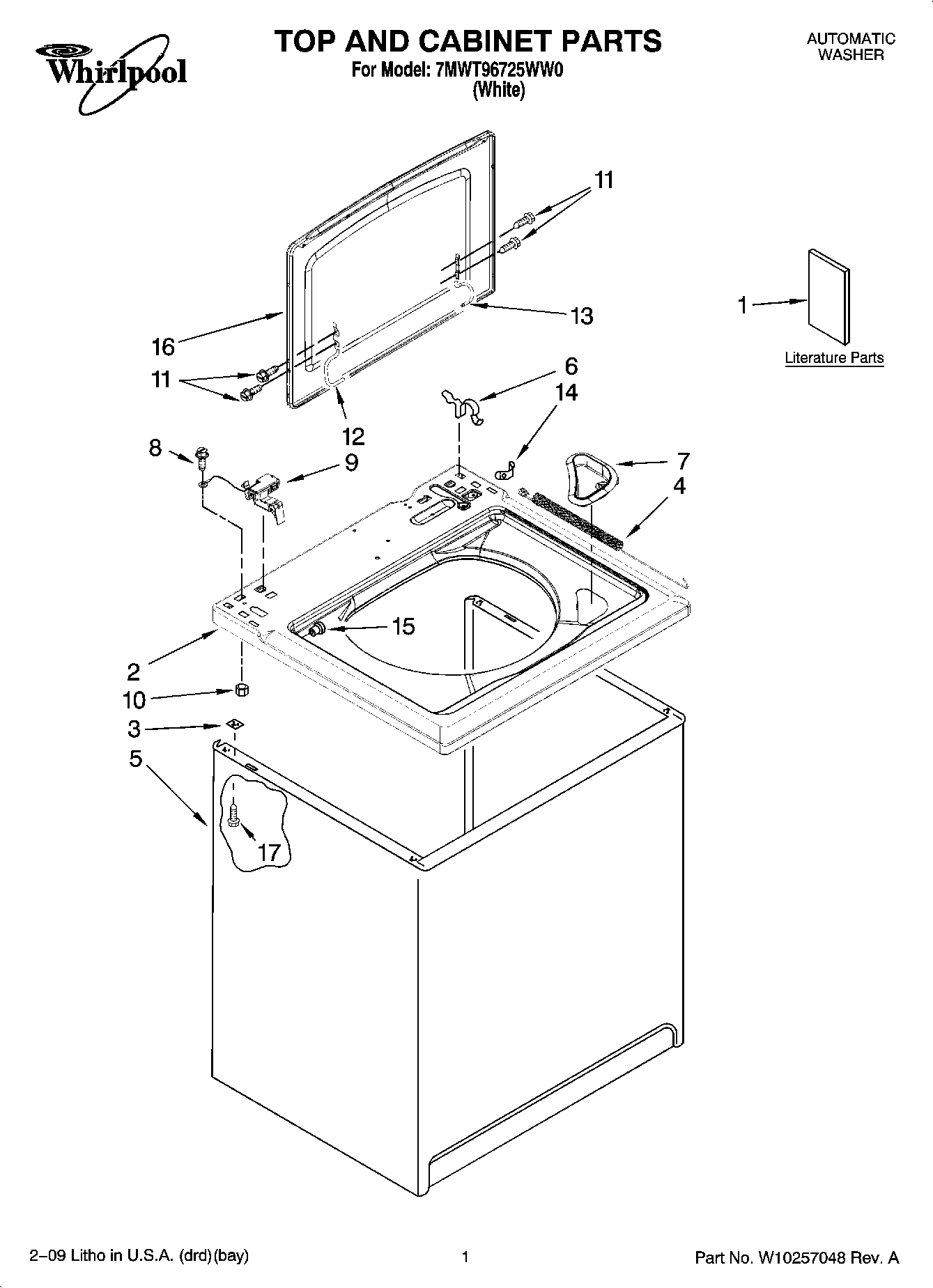

7MWT96725WW0 01 – TOP AND CABINET PARTS

7MWT96725WW0 01 – TOP AND CABINET PARTS

Written by

in

7MWT96725WW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet
1Energy Guide (Mexico)
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
2Top (White)
3WP62750 Whirlpool Spacer
4W10208782 Whirlpool Spring
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WPW10192089 Whirlpool Washer Bleach Dispenser
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10W10080180 Whirlpool Nut
11SCREW
12Hinge, Lid (L.H.)
13W10202542 Whirlpool Hinge
14Clip, Retainer
15Bearing, Lid Hinge (2)
16WPW10164516 Whirlpool Lid Assembly
17W10165554 Whirlpool Screw
