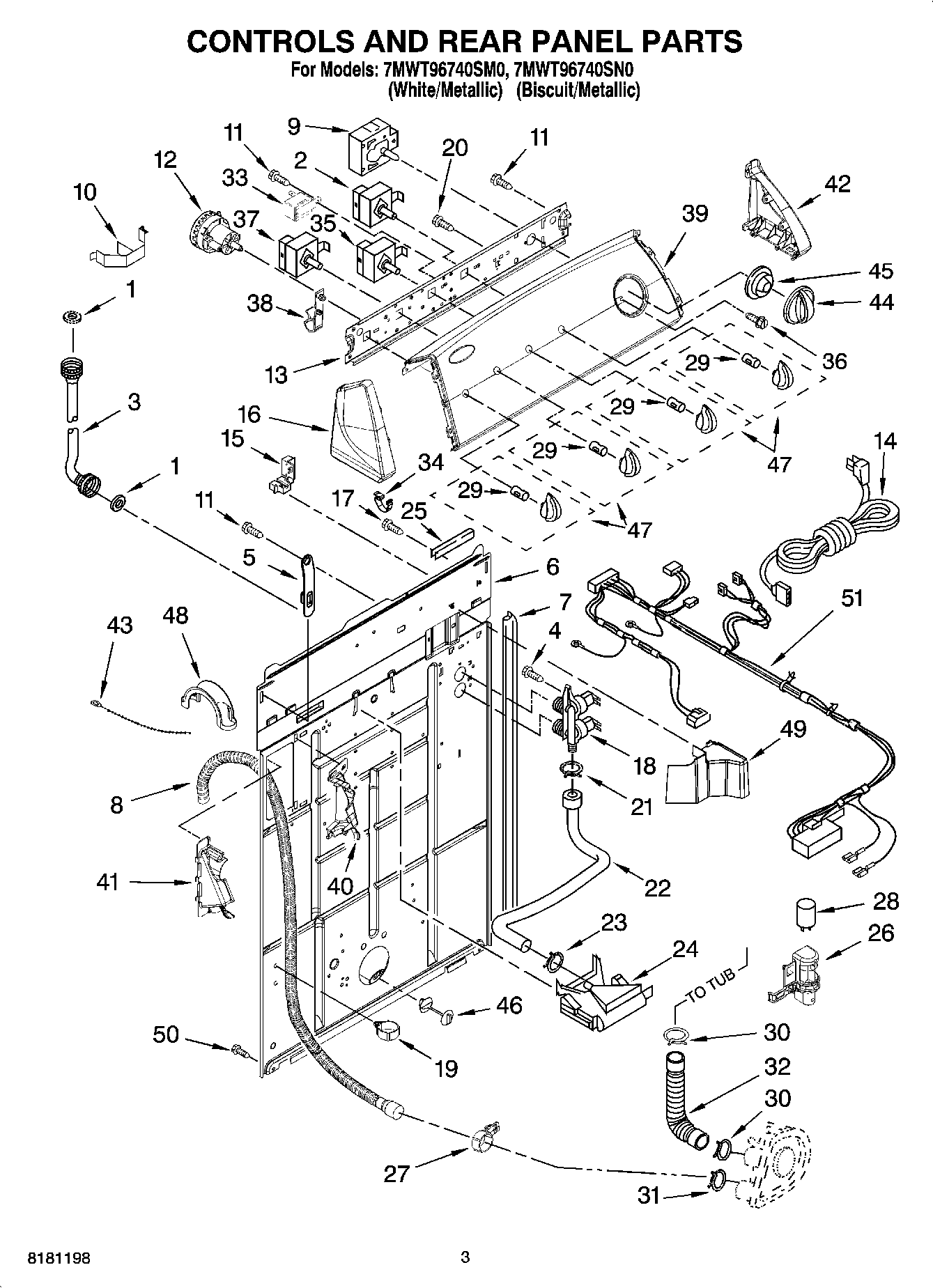

7MWT96740SM0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	W10851055 Whirlpool Cycle Switch
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3951702 Whirlpool Timer
10	Clip, Harness & Pressure Hose
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
16	Cap, End (L.H.) (Biscuit)
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	3400073 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	Clip, Capacitor
27	8541668 Whirlpool Washer Clamp
28	CAPACITOR
29	WP8536939 Whirlpool Spring Clip
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	WP694419 Whirlpool Buzzer Adjuster
34	WP8312709 Whirlpool Endcap Clip
35	WPW10168257 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	Switch, Water Temperature
38	Retainer, Harness
39	Panel, Console (White)
39	Panel, Console (Biscuit)
41	WPW10096921 Whirlpool Hose
42	WP8565954 Whirlpool Endcap
42	Cap, End (R.H.) (Biscuit)
43	WPW10339879 Whirlpool Wire Tie
44	Knob, Timer
44	W10034740 Whirlpool Knob Assembly
45	WP8566018 Whirlpool Dial Assembly
46	WP8519200 Whirlpool Support Assembly
47	Knob, Control
47	Knob, Control (B
48	WP8577378 Whirlpool Retainer
49	Sh
50	WP3390631 Whirlpool Screw
51	WPL 3957374
