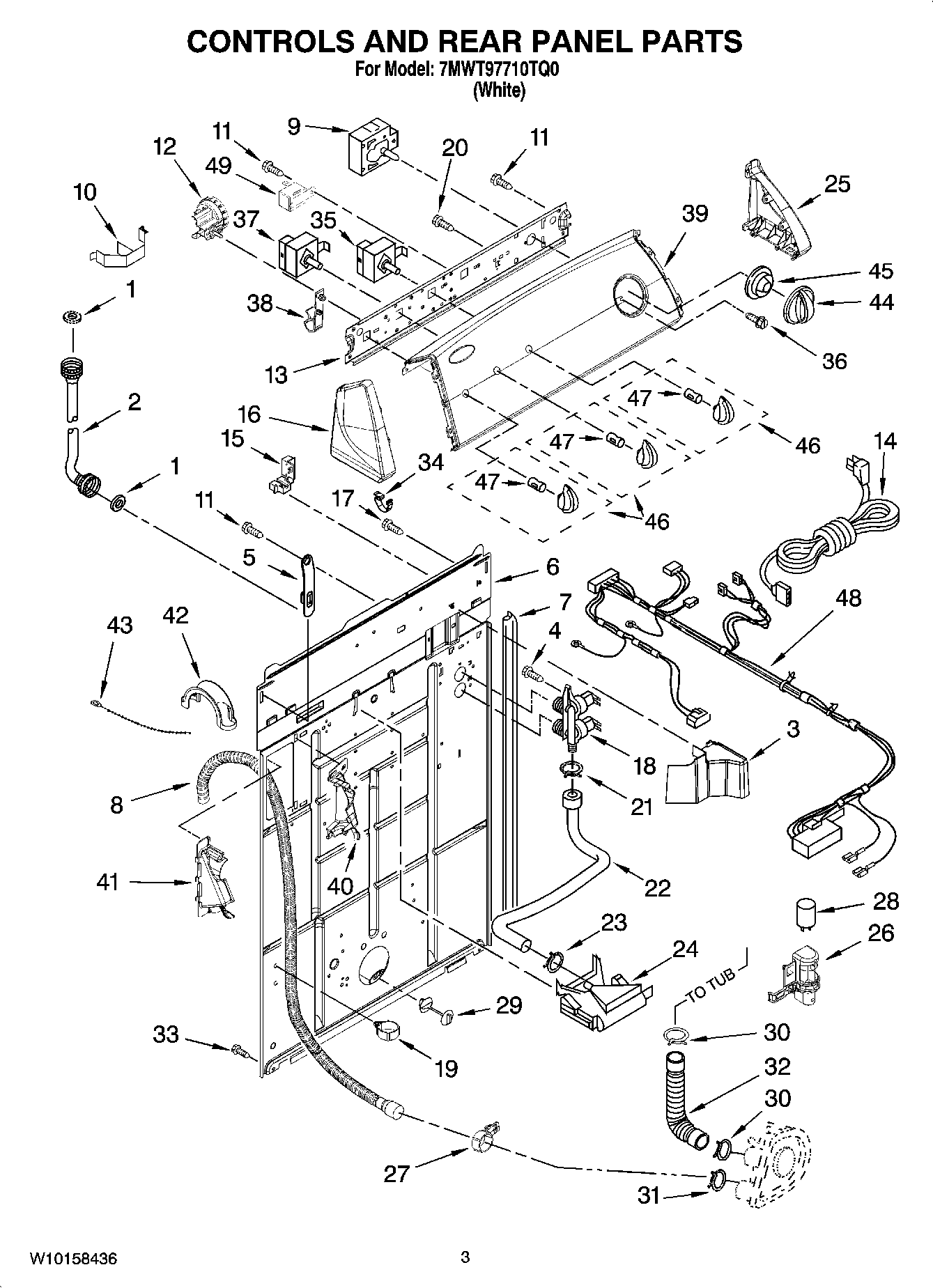

7MWT97710TQ0 02 – CONTROLS AND REAR PANEL PARTS

7MWT97710TQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MWT97710TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP89503 Whirlpool Washer Fill Hose
2FILL HOSE 5' W/WASHER
3Sh
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3951702 Whirlpool Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10337781 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
203400073 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8565954 Whirlpool Endcap
26Clip, Capacitor
278541668 Whirlpool Washer Clamp
28CAPACITOR
29WP8519200 Whirlpool Support Assembly
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33WP3390631 Whirlpool Screw
34WP8312709 Whirlpool Endcap Clip
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
37Switch, Water Temperature
38Retainer, Harness
39Panel, Console
41WPW10096921 Whirlpool Hose
42WP8577378 Whirlpool Retainer
43WPW10339879 Whirlpool Wire Tie
44Knob, Timer
45WP8566018 Whirlpool Dial Assembly
46Knob, Control
47WP8536939 Whirlpool Spring Clip
48WPL W10152820
49WP694419 Whirlpool Buzzer Adjuster
