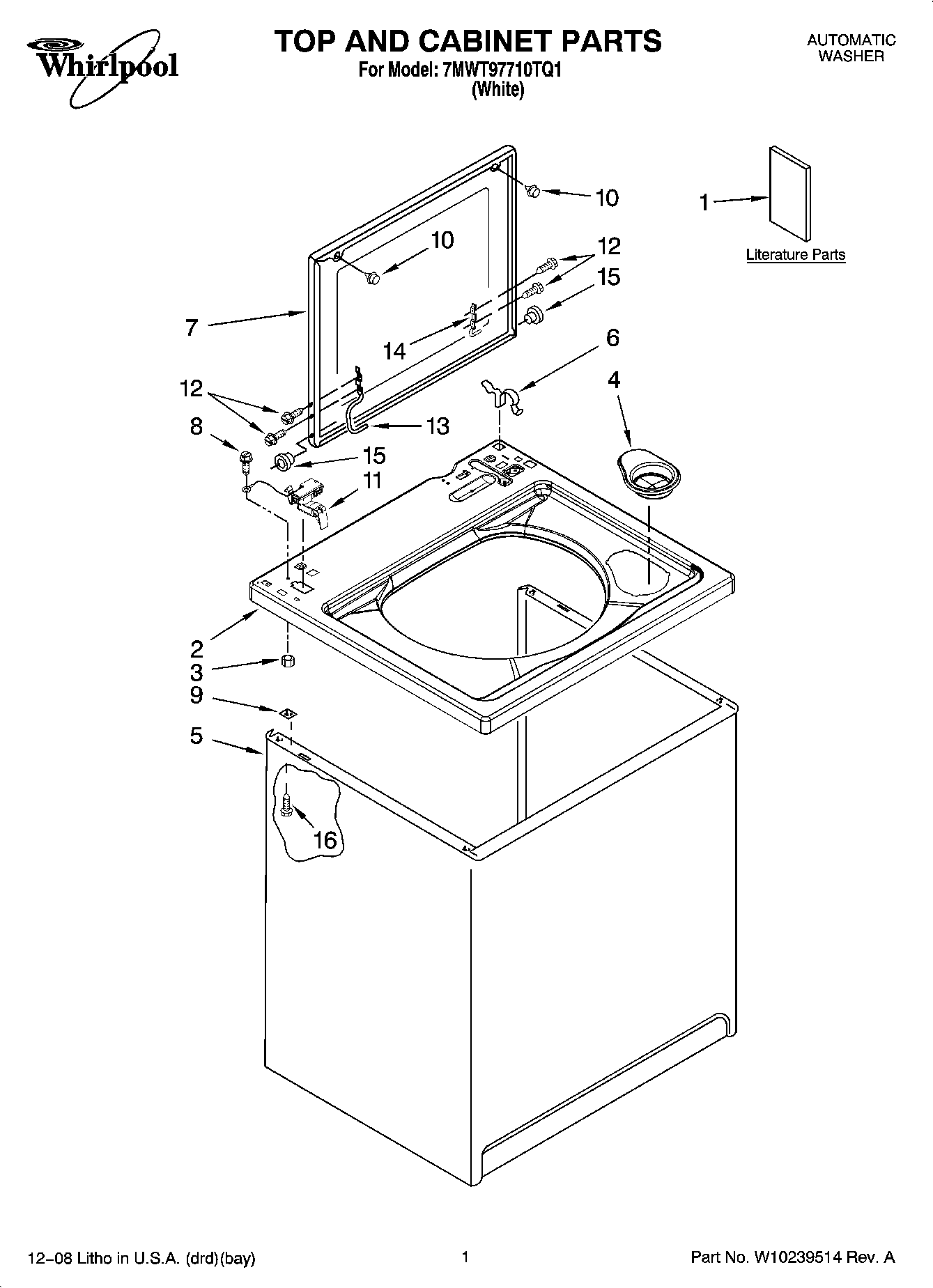

7MWT97710TQ1 01 – TOP AND CABINET PARTS

7MWT97710TQ1 01 – TOP AND CABINET PARTS

Written by

in

7MWT97710TQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1Feature Sheet
1Energy Guide (Mexico)
1Installation Instructions
2Top
3W10080180 Whirlpool Nut
4Dispenser, Bleach
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Lid
8WP3351614 Whirlpool Screw
9WP62750 Whirlpool Spacer
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12SCREW
13Hinge, Lid (L.H.)
14WP91770 Whirlpool Hinge
15Bearing, Lid Hinge (2)
16WP3390631 Whirlpool Screw
