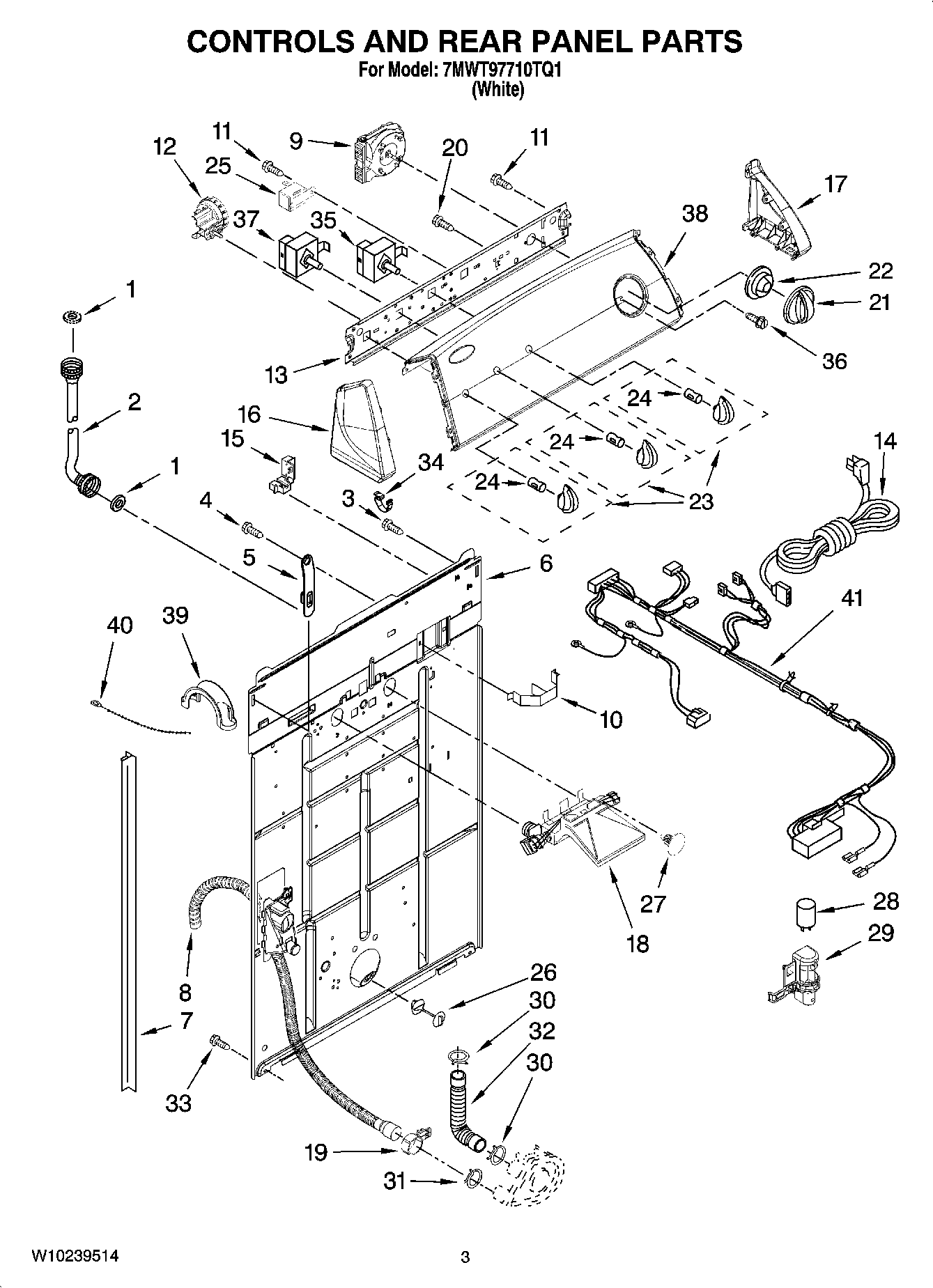

7MWT97710TQ1 02 – CONTROLS AND REAR PANEL PARTS

7MWT97710TQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MWT97710TQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP89503 Whirlpool Washer Fill Hose
3WP3351614 Whirlpool Screw
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WPW10194450 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WPW10189267 Whirlpool Drain Hose
9WP8577356 Whirlpool Washer Timer
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10337781 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
17WP8565954 Whirlpool Endcap
18BREAK, VACUUM
198541668 Whirlpool Washer Clamp
203400073 Whirlpool Screw
21Knob, Timer
22WP8566018 Whirlpool Dial Assembly
23Knob, Control
24WP8536939 Whirlpool Spring Clip
25WP694419 Whirlpool Buzzer Adjuster
26WP8519200 Whirlpool Support Assembly
27Clip, Push-In Retainer
28CAPACITOR
29Clip, Capacitor
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33WP3390631 Whirlpool Screw
34WP8312709 Whirlpool Endcap Clip
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
37Switch, Water Temperature
38Panel, Console
39WP8577378 Whirlpool Retainer
40WPW10339879 Whirlpool Wire Tie
41W10224862 Whirlpool Wire Harness
