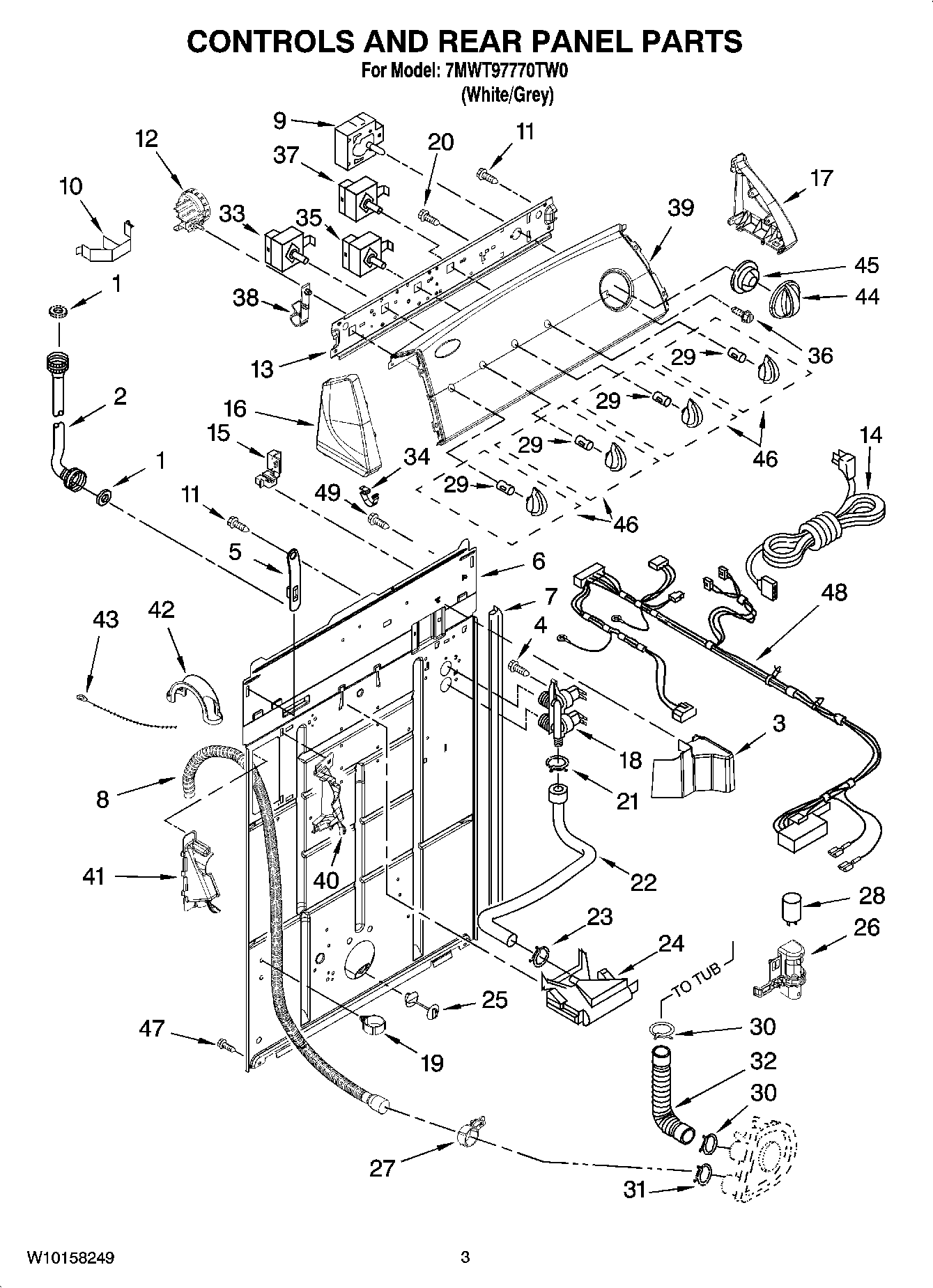

7MWT97770TW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP89503 Whirlpool Washer Fill Hose
2	FILL HOSE 5' W/WASHER
3	Sh
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3951702 Whirlpool Timer
10	Clip, Harness & Pressure Hose
11	WP90767 Whirlpool Screw
12	W10339250 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	3400073 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	Clip, Capacitor
27	8541668 Whirlpool Washer Clamp
28	CAPACITOR
29	WP8536939 Whirlpool Spring Clip
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Switch, Water Temperature
34	WP8312709 Whirlpool Endcap Clip
35	Buzzer, Adjustable Twist Mount
36	WP3400818 Whirlpool Screw
37	W10851055 Whirlpool Cycle Switch
38	Retainer, Harness
39	Panel, Console
41	WPW10096921 Whirlpool Hose
42	WP8577378 Whirlpool Retainer
43	WPW10339879 Whirlpool Wire Tie
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
46	Knob, Control
47	WP3390631 Whirlpool Screw
48	WPL W10152819
49	WP3351614 Whirlpool Screw
