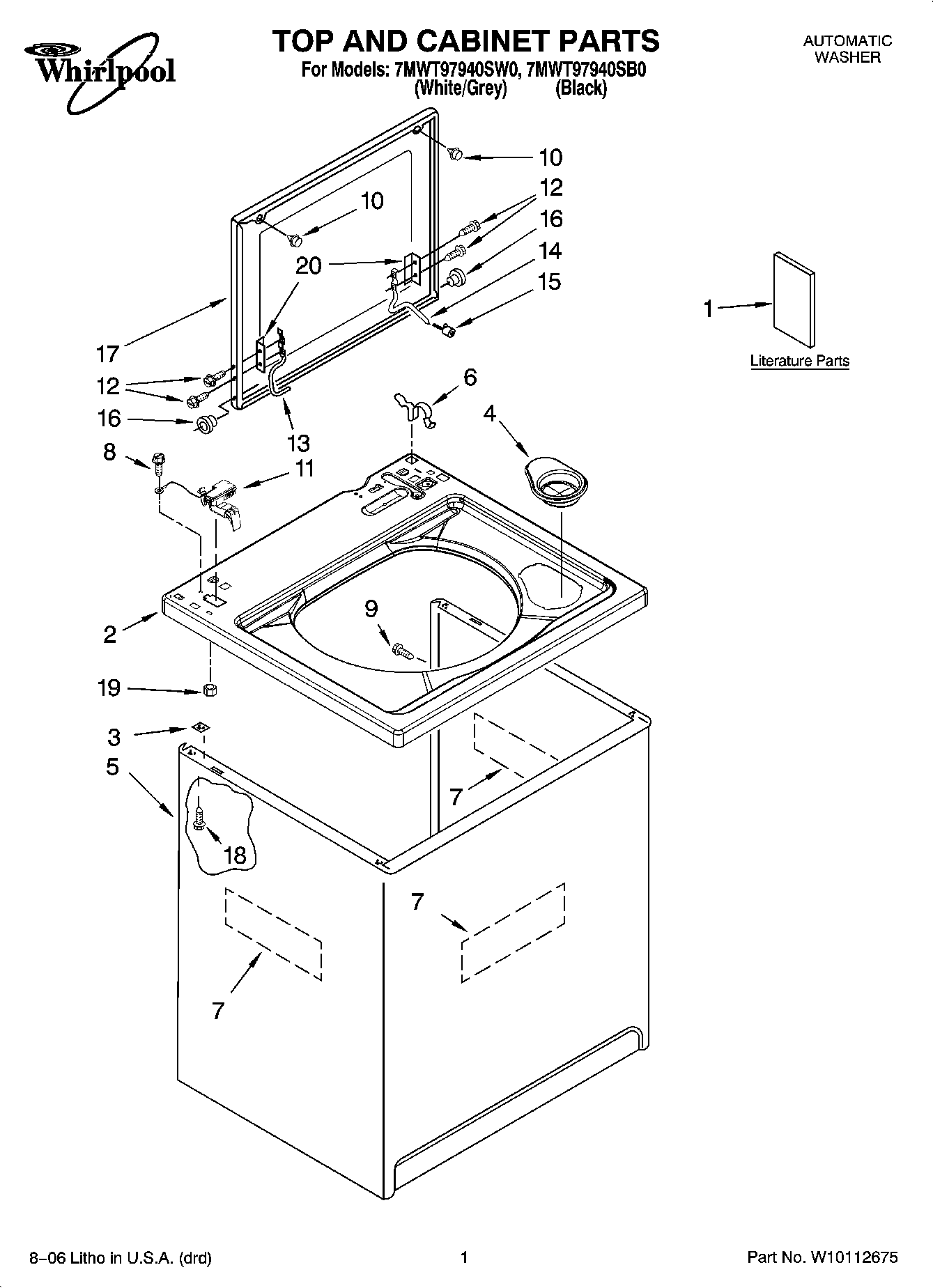

7MWT97940SB0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Use & Care Guide
1	Installation Instructions
1	Energy Guide
1	Wiring Diagram
2	Top (Black)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	Dispenser, Bleach
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Black)
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet-Sound Damper
8	WP3351614 Whirlpool Screw
9	WP308685 Whirlpool Microwave Screw
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	SCREW
13	Hinge, Lid (L.H.)
14	WP54583 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Bearing, Lid Hinge (2)
17	Lid (White)
17	Lid (Black)
18	WP3390631 Whirlpool Screw
19	W10080180 Whirlpool Nut
20	WP21097 Whirlpool Pad
