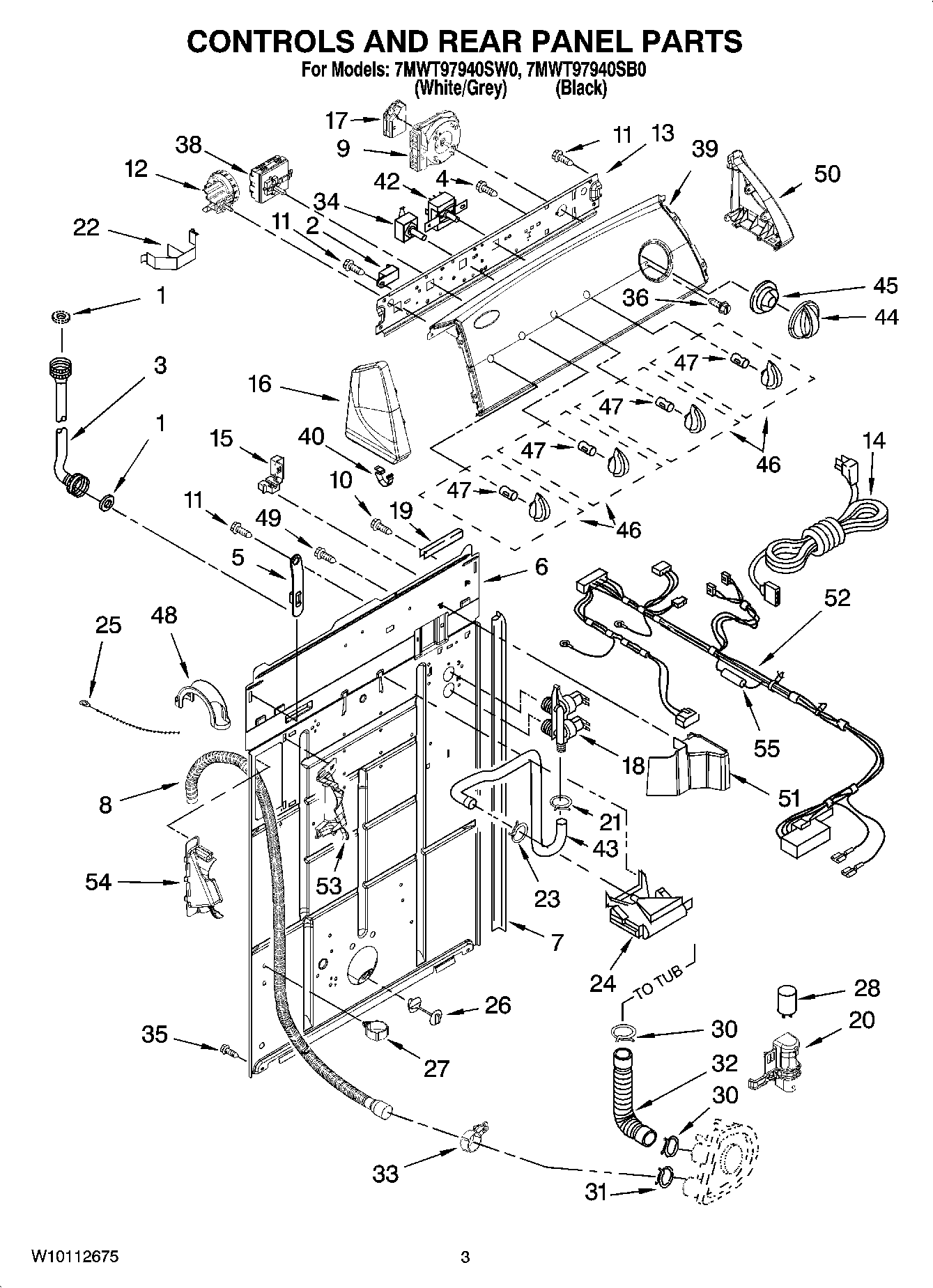

7MWT97940SB0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP694419 Whirlpool Buzzer Adjuster
3	FILL HOSE 5' W/WASHER
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8577787 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339250 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	WP8559419 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
16	Cap, End (L.H.) (Includes Item 40) (Black)
17	W10860734 Whirlpool Electronic Control Board + Core
18	WP3979346 Whirlpool Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WPW10339879 Whirlpool Wire Tie
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	WP8572720 Whirlpool Capacitor
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	W10168264 Whirlpool Cycle Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
38	WP8577786 Whirlpool Temperature Switch
39	Panel, Console
40	WP8312709 Whirlpool Endcap Clip
42	Switch, Rotary
43	HOSE
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
46	Knob, Control (3)
47	WP8536939 Whirlpool Spring Clip
48	WP8577378 Whirlpool Retainer
49	WP9740848 Whirlpool Dishwasher Screw
50	WPL 8565956
50	WP8565954 Whirlpool Endcap
51	Sh
52	WPL W10114353
54	WPW10096921 Whirlpool Hose
55	Fuse (In Harness)
