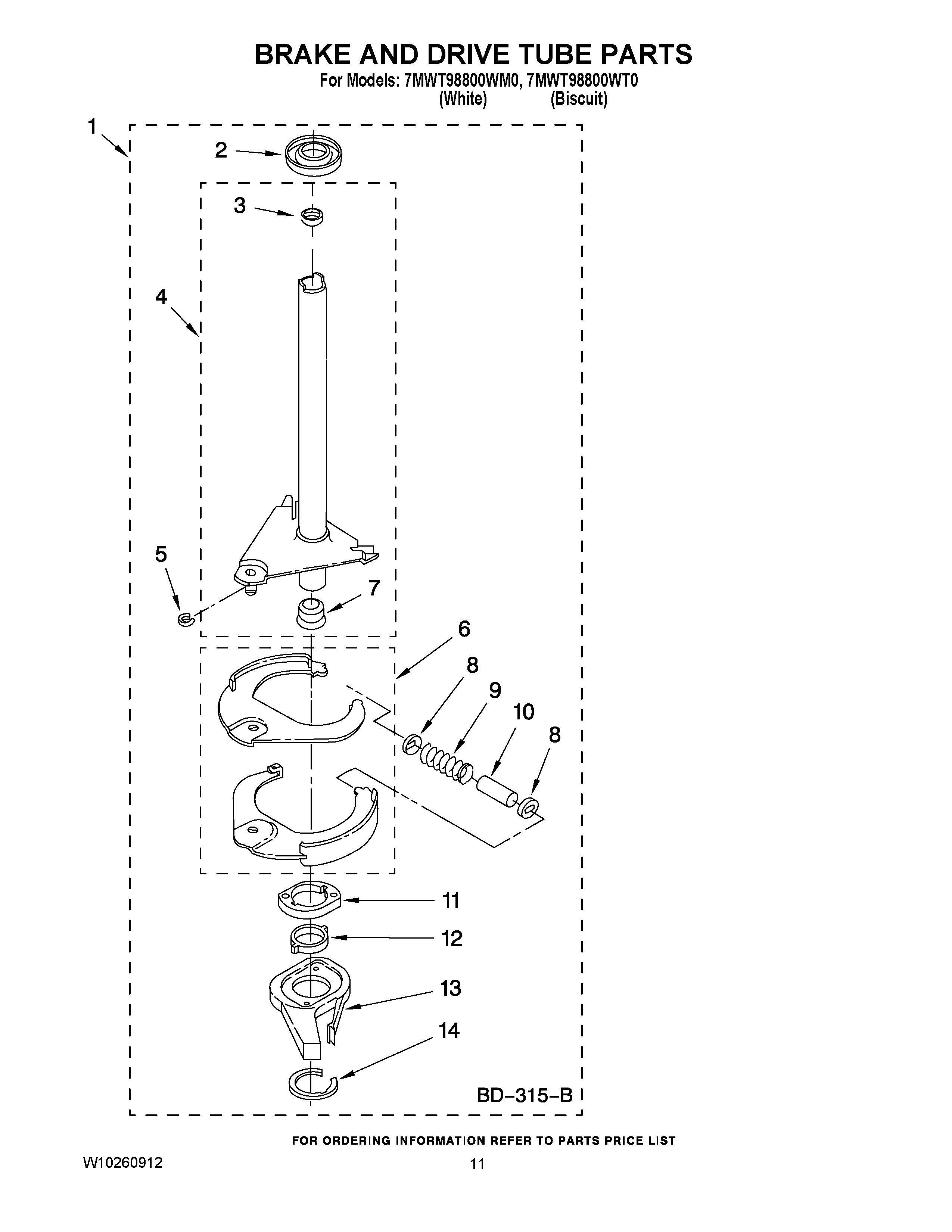

7MWT98800WT0 07 – BRAKE AND DRIVE TUBE PARTS

Products

Position	Product
NI	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP62658 Whirlpool Seal Ring
3	WP356427 Whirlpool Shaft Seal
4	WP64208 Whirlpool Spin Tube
5	W10083190 Whirlpool Ring-E
6	285438 Whirlpool Brake Shoe
7	WP8546462 Whirlpool Bearing
8	285658 Whirlpool Sleeve Kit
9	Spring, Brake
11	WP8546461 Whirlpool Brake Cam Assembly
12	WP63022 Whirlpool Sleeve
13	285790 Whirlpool Washer Clutch Band and Lining Kit
14	WPW10083200 Whirlpool Wire Ring
