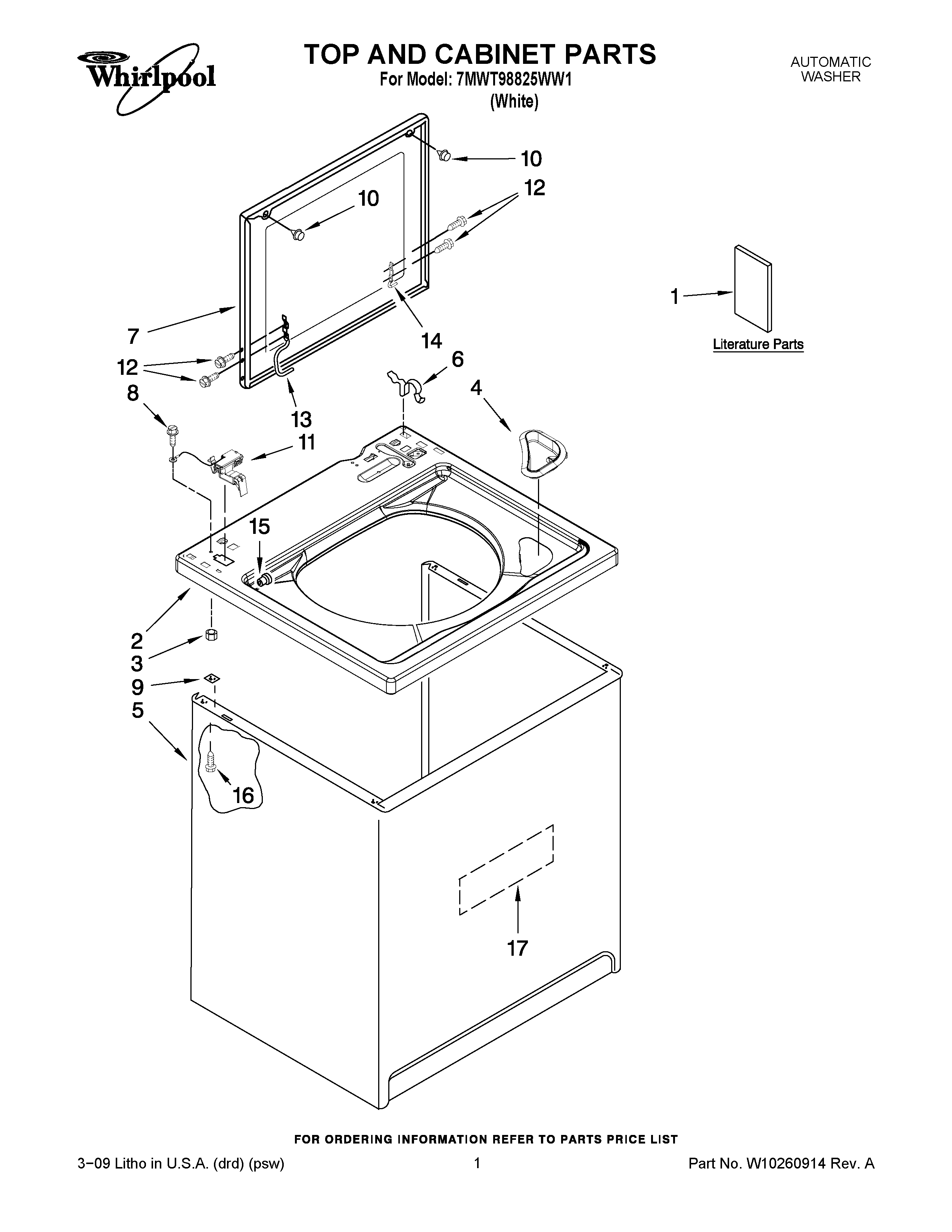

7MWT98825WW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Feature Sheet
1	Use & Care Guide
1	Wiring Diagram
1	Installation Instructions
1	Energy Guide (Mexico)
2	Top
3	W10080180 Whirlpool Nut
4	WPW10192089 Whirlpool Washer Bleach Dispenser
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Lid
8	WP3351614 Whirlpool Screw
9	WP62750 Whirlpool Spacer
10	WP9724509 Whirlpool Bumper
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	SCREW
13	Hinge, Lid (L.H.)
14	WP91770 Whirlpool Hinge
15	Bearing, Lid Hinge (2)
16	W10165554 Whirlpool Screw
17	W11096159 Whirlpool Sound ABS Assembly
