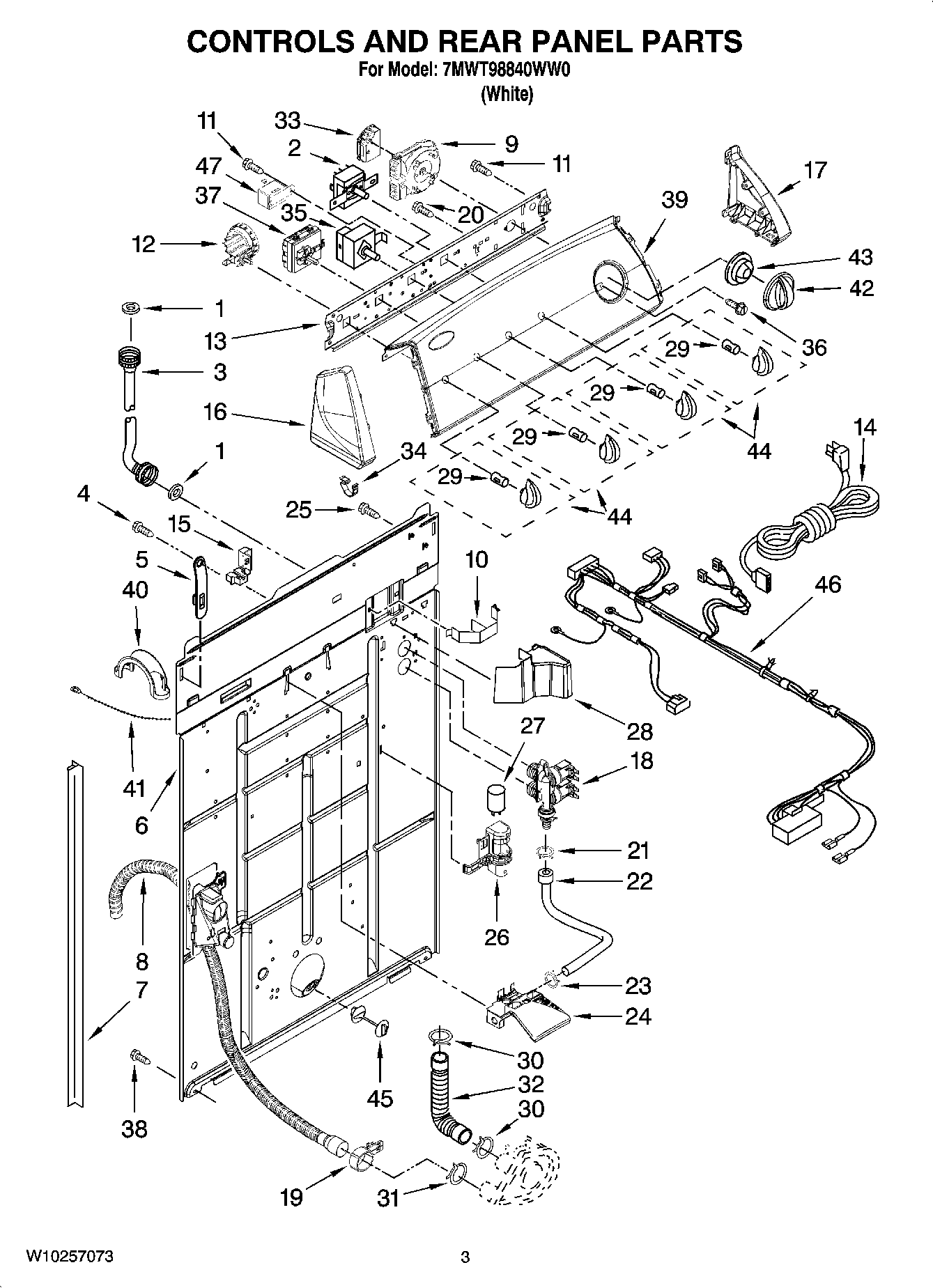

7MWT98840WW0 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
7MWT98840WW0 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP16123 Whirlpool Washer
2
Switch, Rotary
3
WP89503 Whirlpool Washer Fill Hose
4
WP9740848 Whirlpool Dishwasher Screw
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
8
WPW10189267 Whirlpool Drain Hose
9
WP8577787 Whirlpool Timer Assembly
10
Clip, Harness & Pressure Hose
11
WP90767 Whirlpool Screw
12
W10337781 Whirlpool Washer Water Level Switch
13
Bracket, Control
14
Cord, Power (Includes Item 15)
15
Strain Relief, Power Cord
16
WP8565957 Whirlpool Endcap Assembly
17
WP8565954 Whirlpool Endcap
18
WP3979346 Whirlpool Water Inlet Valve
19
8541668 Whirlpool Washer Clamp
20
3400073 Whirlpool Screw
21
WP596669 Whirlpool Hose Clamp
22
WPW10190501 Whirlpool Hose
24
WPW10190514 Whirlpool Vacuum Break
25
WP3351614 Whirlpool Screw
26
Clip, Capacitor
27
CAPACITOR
28
Sh
29
WP8536939 Whirlpool Spring Clip
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
Circuit Board, Agitation Delay
34
WP8312709 Whirlpool Endcap Clip
35
W10168264 Whirlpool Cycle Switch
36
WP3400818 Whirlpool Screw
37
WPW10184148 Whirlpool Temperature Switch
38
WP3390631 Whirlpool Screw
39
Panel, Console
40
WP8577378 Whirlpool Retainer
41
WPW10339879 Whirlpool Wire Tie
42
Knob, Timer
43
WP8566018 Whirlpool Dial Assembly
44
Knob, Control (3)
45
WP8519200 Whirlpool Support Assembly
46
Harness, Wiring (Includes Item 2)
47
WP694419 Whirlpool Buzzer Adjuster
←
