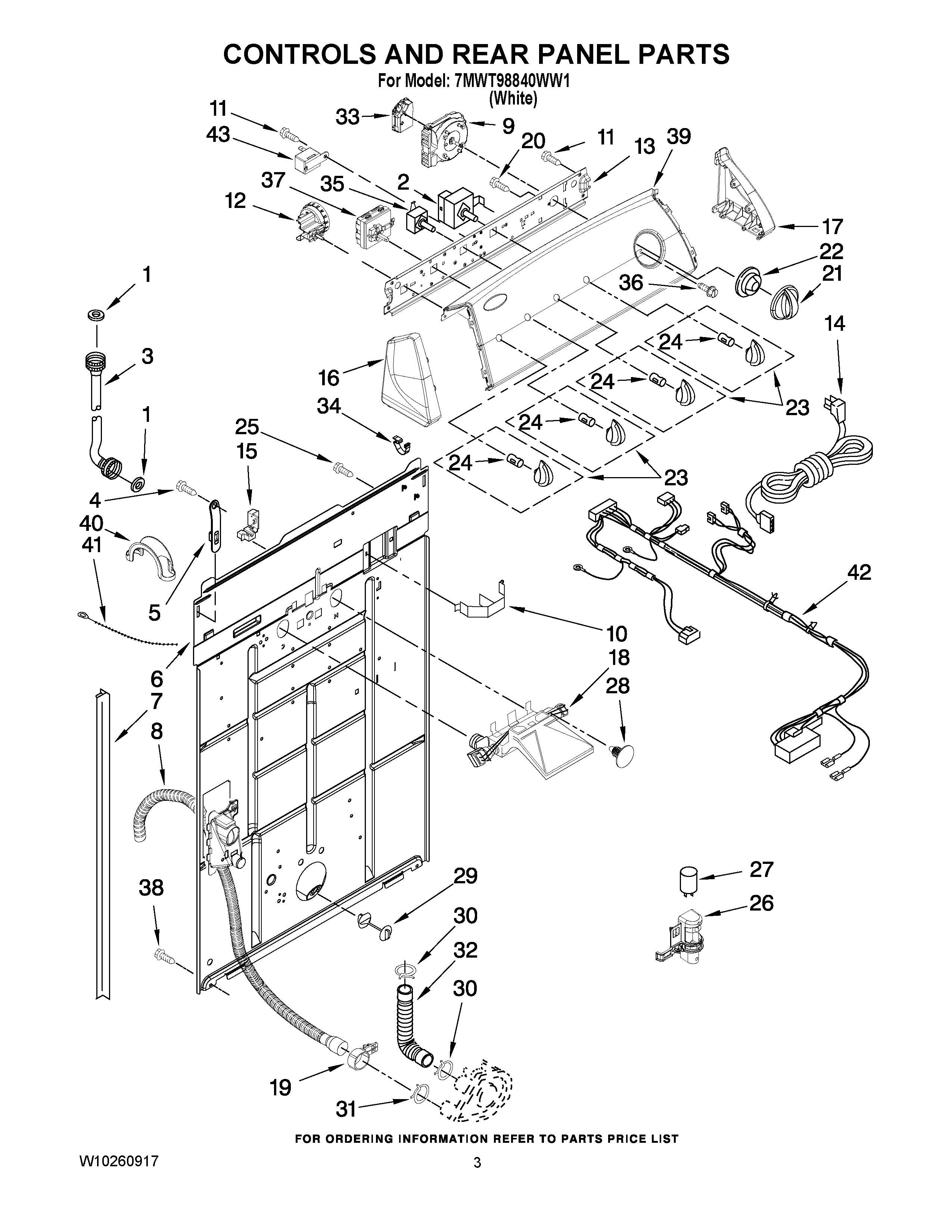

7MWT98840WW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Switch, Rotary
3	WP89503 Whirlpool Washer Fill Hose
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WP8577787 Whirlpool Timer Assembly
10	Clip, Harness & Pressure Hose
11	WP90767 Whirlpool Screw
12	W10337781 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	WPW10284557 Whirlpool Washer Vacuum Break
19	8541668 Whirlpool Washer Clamp
20	3400073 Whirlpool Screw
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control (3)
24	WP8536939 Whirlpool Spring Clip
25	WP3351614 Whirlpool Screw
26	Clip, Capacitor
27	CAPACITOR
28	Clip, Push-In Retainer
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Circuit Board, Agitation Delay
34	WP8312709 Whirlpool Endcap Clip
35	W10168264 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	WPW10184148 Whirlpool Temperature Switch
38	WP3390631 Whirlpool Screw
39	Panel, Console
40	WP8577378 Whirlpool Retainer
41	WPW10339879 Whirlpool Wire Tie
42	Harness, Wiring (For Detail See Pages 9 & 10)
43	WP694419 Whirlpool Buzzer Adjuster
