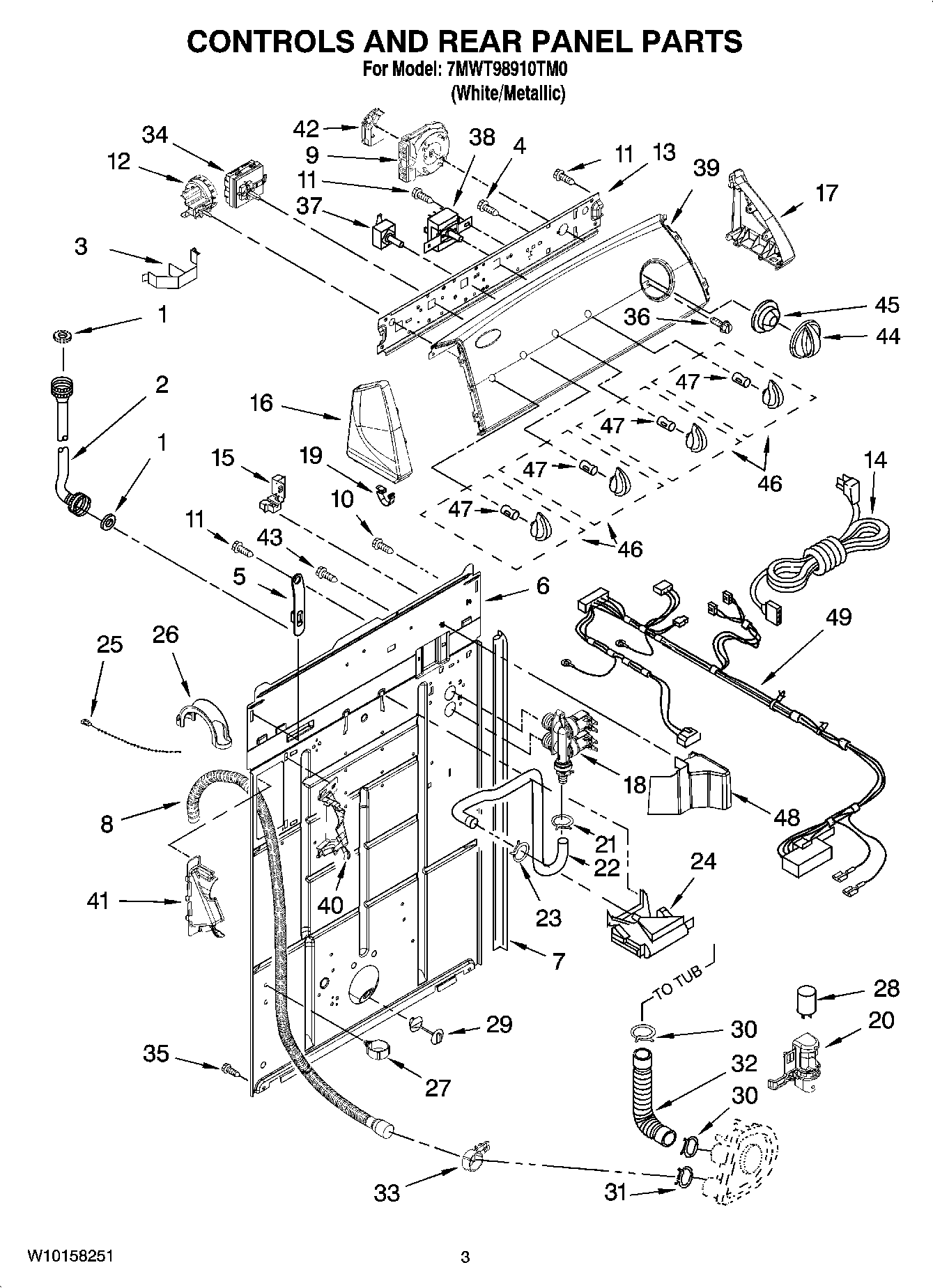

7MWT98910TM0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2FILL HOSE 5' W/WASHER
2WP89503 Whirlpool Washer Fill Hose
3Clip, Harness & Pressure Hose
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8577787 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337781 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Item 15)
15Strain Relief, Power Cord
16WP8565957 Whirlpool Endcap Assembly
17WP8565954 Whirlpool Endcap
18WP3979346 Whirlpool Water Inlet Valve
19WP8312709 Whirlpool Endcap Clip
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WPW10339879 Whirlpool Wire Tie
26WP8577378 Whirlpool Retainer
27Clamp, Hose
28CAPACITOR
29WP8519200 Whirlpool Support Assembly
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
338541668 Whirlpool Washer Clamp
34WPW10184148 Whirlpool Temperature Switch
35WP3390631 Whirlpool Screw
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
38Switch, Rotary
39Panel, Console
41WPW10096921 Whirlpool Hose
42Circuit Board, Agitation Delay
43WP9740848 Whirlpool Dishwasher Screw
44Knob, Timer
45WP8566018 Whirlpool Dial Assembly
46Knob, Control
47WP8536939 Whirlpool Spring Clip
48Sh
49Harness, Wiring (Includes Item 2)
