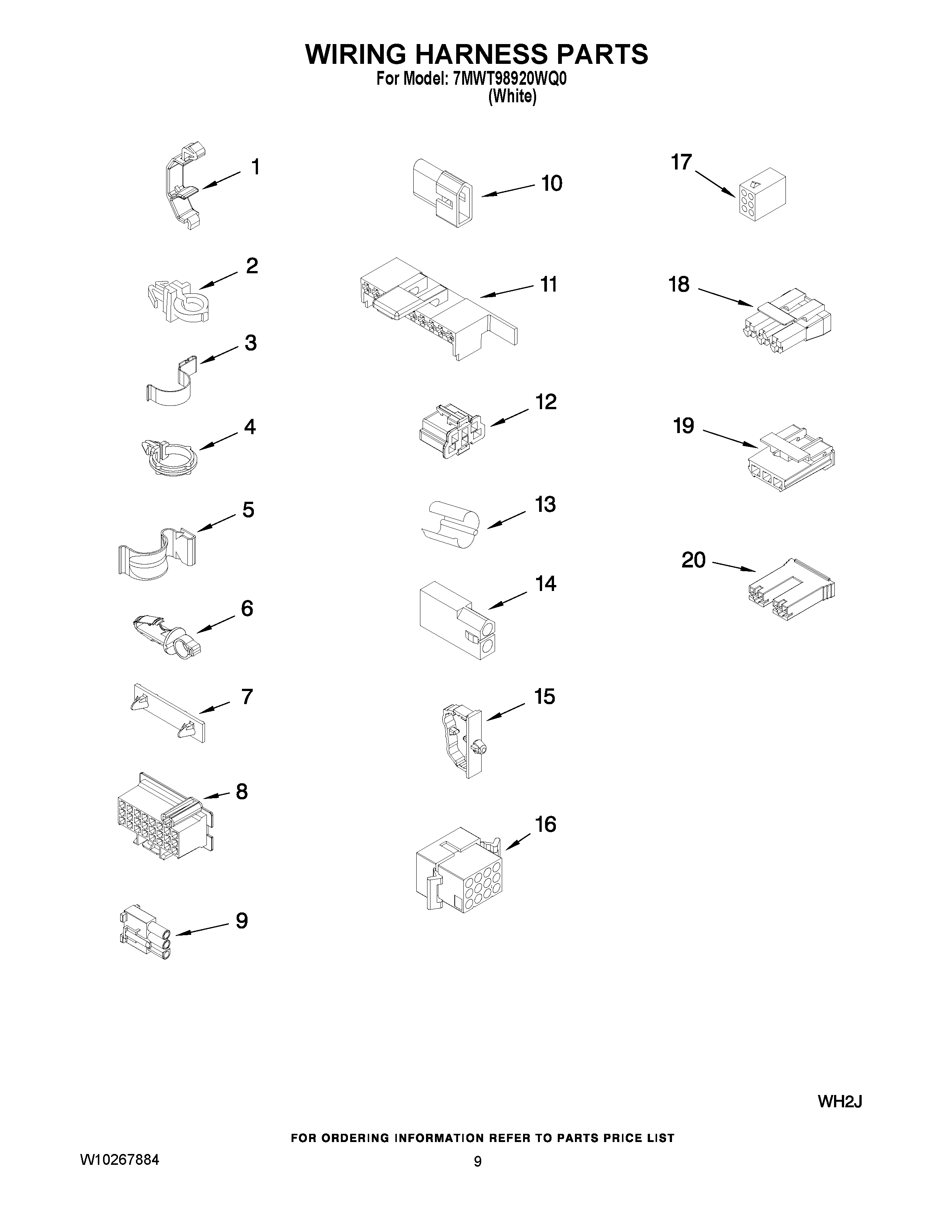

7MWT98920WQ0 06 – WIRING HARNESS PARTS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
3	8528351 Whirlpool Clip
4	8559320 Whirlpool Clip
5	WP90016 Whirlpool Clip
6	Clip, Harness
7	WP389379 Whirlpool Retainer
8	W10876590 Whirlpool Connector
8	Timer, Block Disconnect (White)
9	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
10	353424 Whirlpool Connector
11	WP62505 Whirlpool Connector
12	Block, Disconnect
13	Protector, Harness
14	Receptacle, Latching (2-Way) (Uses Terminal 94614)
15	Clip, Harness
16	Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
17	Receptacle, (6-Way) (Use Term. 94613)
18	WP2172937 Whirlpool Connector
19	WP3360056 Whirlpool Connector
20	3354925 Whirlpool Connector
20	WPL 3354926
