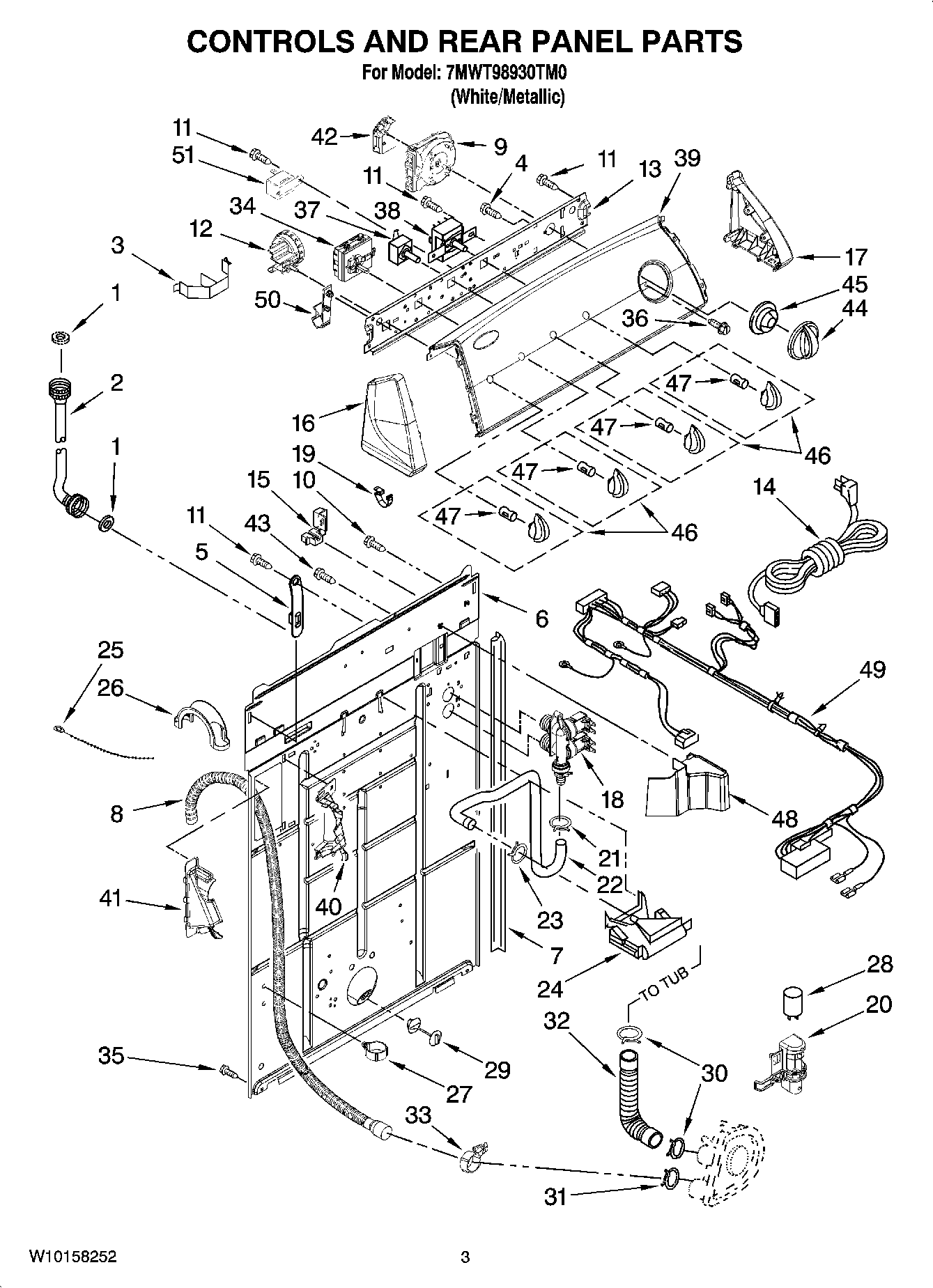

7MWT98930TM0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	FILL HOSE 5' W/WASHER
2	WP89503 Whirlpool Washer Fill Hose
3	Clip, Harness & Pressure Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8577787 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339250 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	WP3979346 Whirlpool Water Inlet Valve
19	WP8312709 Whirlpool Endcap Clip
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WPW10339879 Whirlpool Wire Tie
26	WP8577378 Whirlpool Retainer
27	Clamp, Hose
28	CAPACITOR
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	WPW10184148 Whirlpool Temperature Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	W10168264 Whirlpool Cycle Switch
38	Switch, Rotary
39	Panel, Console
41	WPW10096921 Whirlpool Hose
42	Circuit Board, Agitation Delay
43	WP9740848 Whirlpool Dishwasher Screw
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
46	Knob, Control
47	WP8536939 Whirlpool Spring Clip
48	Sh
49	Harness, Wiring (Includes Item 2)
50	Retainer, Harness
51	WP694419 Whirlpool Buzzer Adjuster
