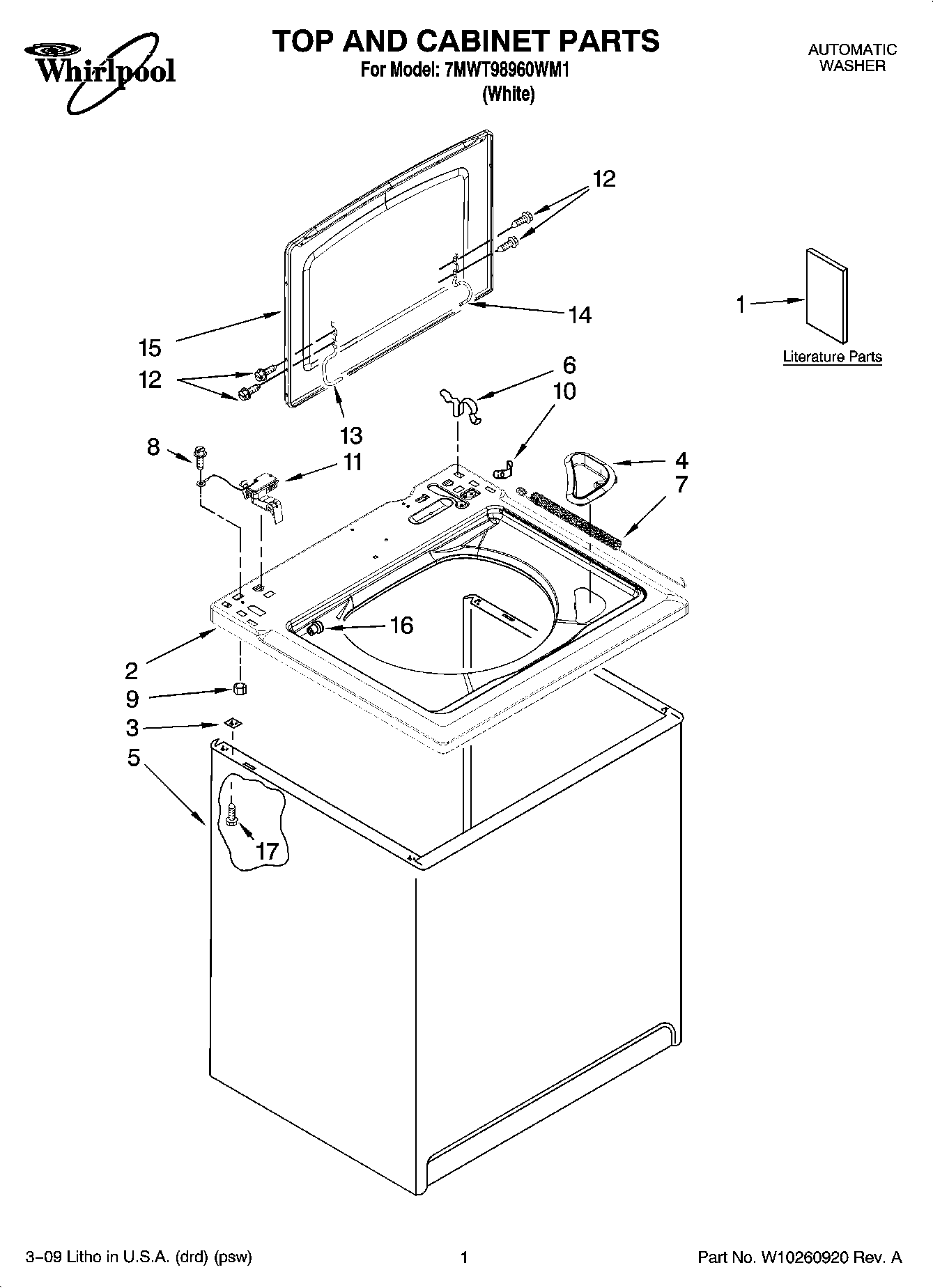

7MWT98960WM1 01 – TOP AND CABINET PARTS

7MWT98960WM1 01 – TOP AND CABINET PARTS

Written by

in

7MWT98960WM1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet
1Energy Guide (Mexico)
1Installation Instructions
1Wiring Diagram
1Use & Care Guide
2Top (White)
3WP62750 Whirlpool Spacer
4WPW10192089 Whirlpool Washer Bleach Dispenser
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7W10208782 Whirlpool Spring
8WP3351614 Whirlpool Screw
9W10080180 Whirlpool Nut
10Clip, Retainer
11WP8318084 Whirlpool Washer Lid Switch Assembly
12SCREW
13Hinge, Lid (L.H.)
14W10202542 Whirlpool Hinge
15WPW10164516 Whirlpool Lid Assembly
16Bearing, Lid Hinge (2)
17W10165554 Whirlpool Screw
