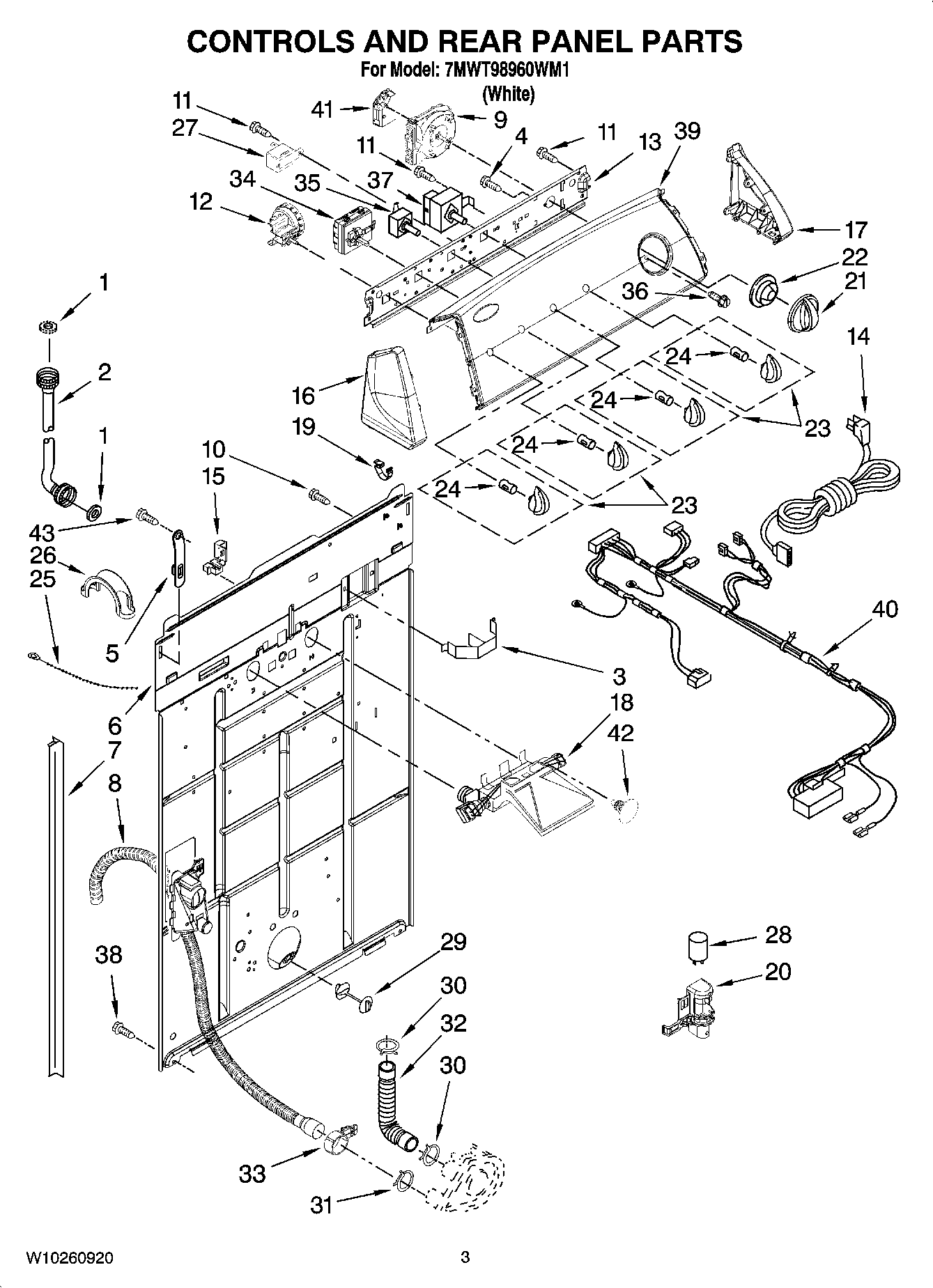

7MWT98960WM1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP89503 Whirlpool Washer Fill Hose
3	Clip, Harness & Pressure Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WPW10194450 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WP8577787 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337781 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	WPW10284557 Whirlpool Washer Vacuum Break
19	WP8312709 Whirlpool Endcap Clip
20	Clip, Capacitor
21	Knob, Timer
22	WP8566018 Whirlpool Dial Assembly
23	Knob, Control
24	WP8536939 Whirlpool Spring Clip
25	WPW10339879 Whirlpool Wire Tie
26	WP8577378 Whirlpool Retainer
27	WP694419 Whirlpool Buzzer Adjuster
28	CAPACITOR
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	WPW10184148 Whirlpool Temperature Switch
35	W10168264 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	Switch, Rotary
38	WP3390631 Whirlpool Screw
39	Panel, Console
40	Harness, Wiring (For Detail See Pages 9 & 10)
41	Circuit Board, Agitation Delay
42	Clip, Push-In Retainer
43	WP9740848 Whirlpool Dishwasher Screw
