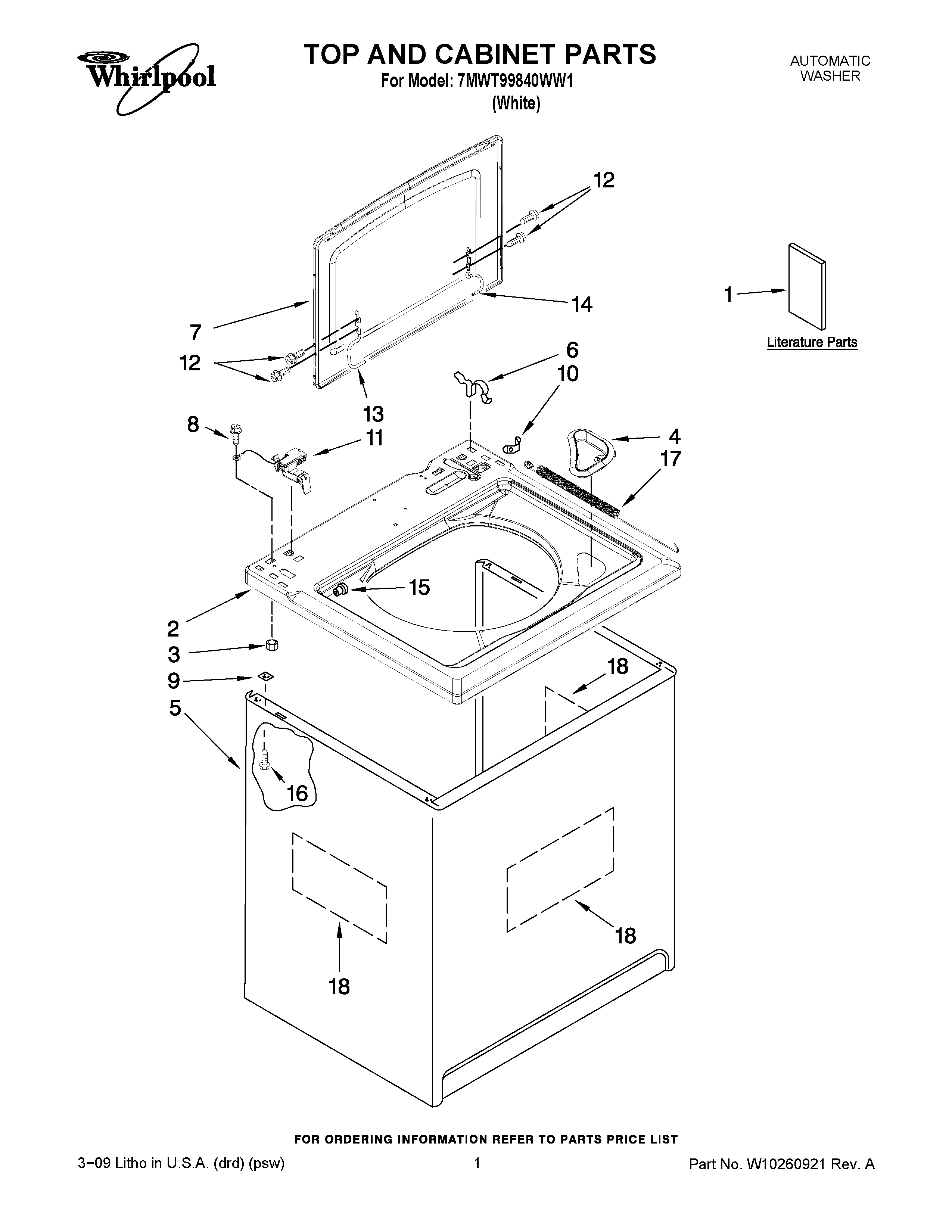

7MWT99840WW1 01 – TOP AND CABINET PARTS

7MWT99840WW1 01 – TOP AND CABINET PARTS

Written by

in

7MWT99840WW1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet
1Wiring Diagram
1Installation Instructions
1Energy Guide (Mexico)
1Use & Care Guide
2Top (White)
3W10080180 Whirlpool Nut
4WPW10192089 Whirlpool Washer Bleach Dispenser
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WPW10164516 Whirlpool Lid Assembly
8WP3351614 Whirlpool Screw
9WP62750 Whirlpool Spacer
10Clip, Retainer
11WP8318084 Whirlpool Washer Lid Switch Assembly
12SCREW
13Hinge, Lid (L.H.)
14W10202542 Whirlpool Hinge
15Bearing, Lid Hinge (2)
16W10165554 Whirlpool Screw
17W10208782 Whirlpool Spring
18W11096159 Whirlpool Sound ABS Assembly
