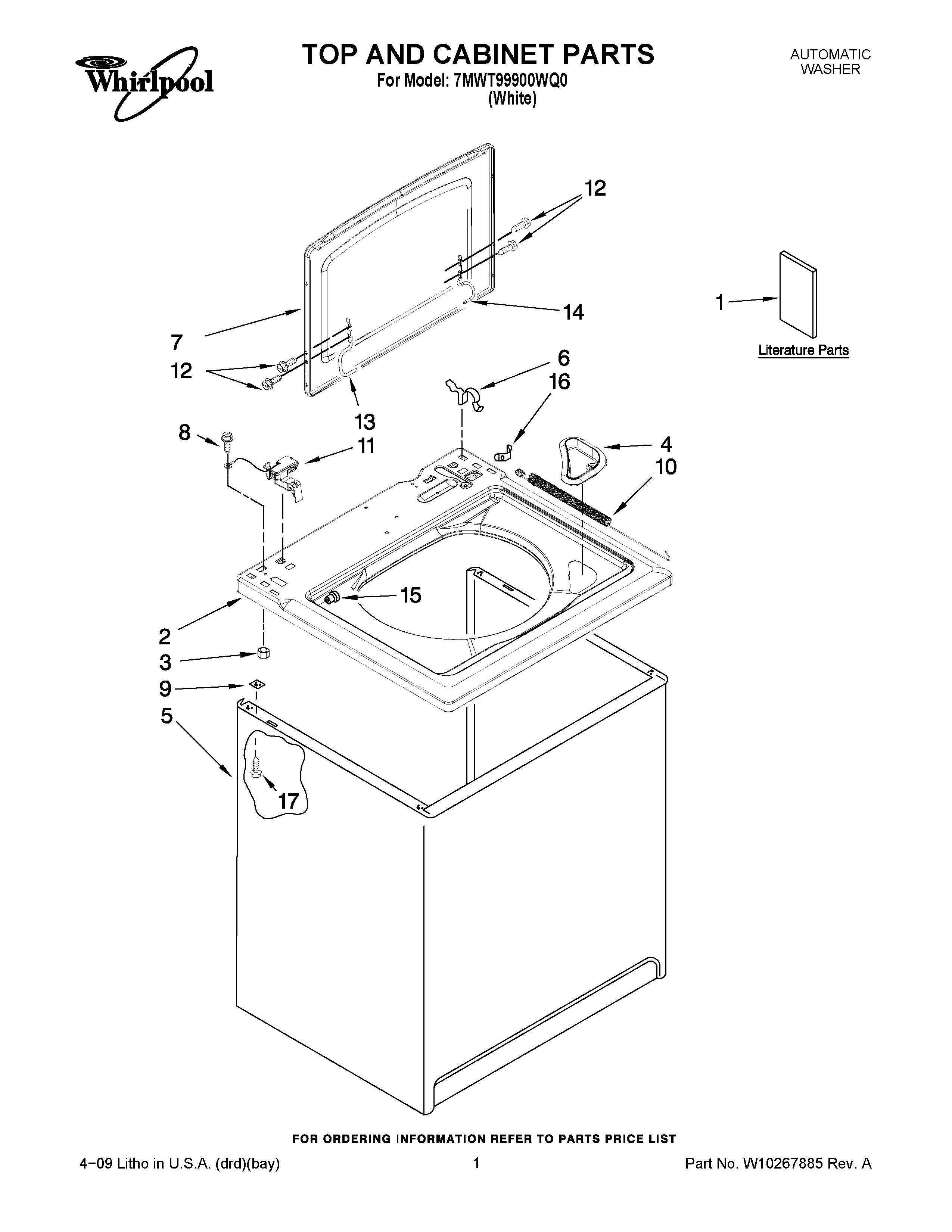

7MWT99900WQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE (MEXICO)
1	FEATURE SHEET
1	Wiring Diagram
1	Installation Instructions
1	Use & Care Guide
2	Top (White)
3	W10080180 Whirlpool Nut
4	WPW10192089 Whirlpool Washer Bleach Dispenser
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WPW10164516 Whirlpool Lid Assembly
8	WP3351614 Whirlpool Screw
9	WP62750 Whirlpool Spacer
10	W10208782 Whirlpool Spring
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	SCREW
13	Hinge, Lid (L.H.)
14	W10202542 Whirlpool Hinge
15	Bearing, Lid Hinge (2)
16	Clip, Retainer
17	W10165554 Whirlpool Screw
