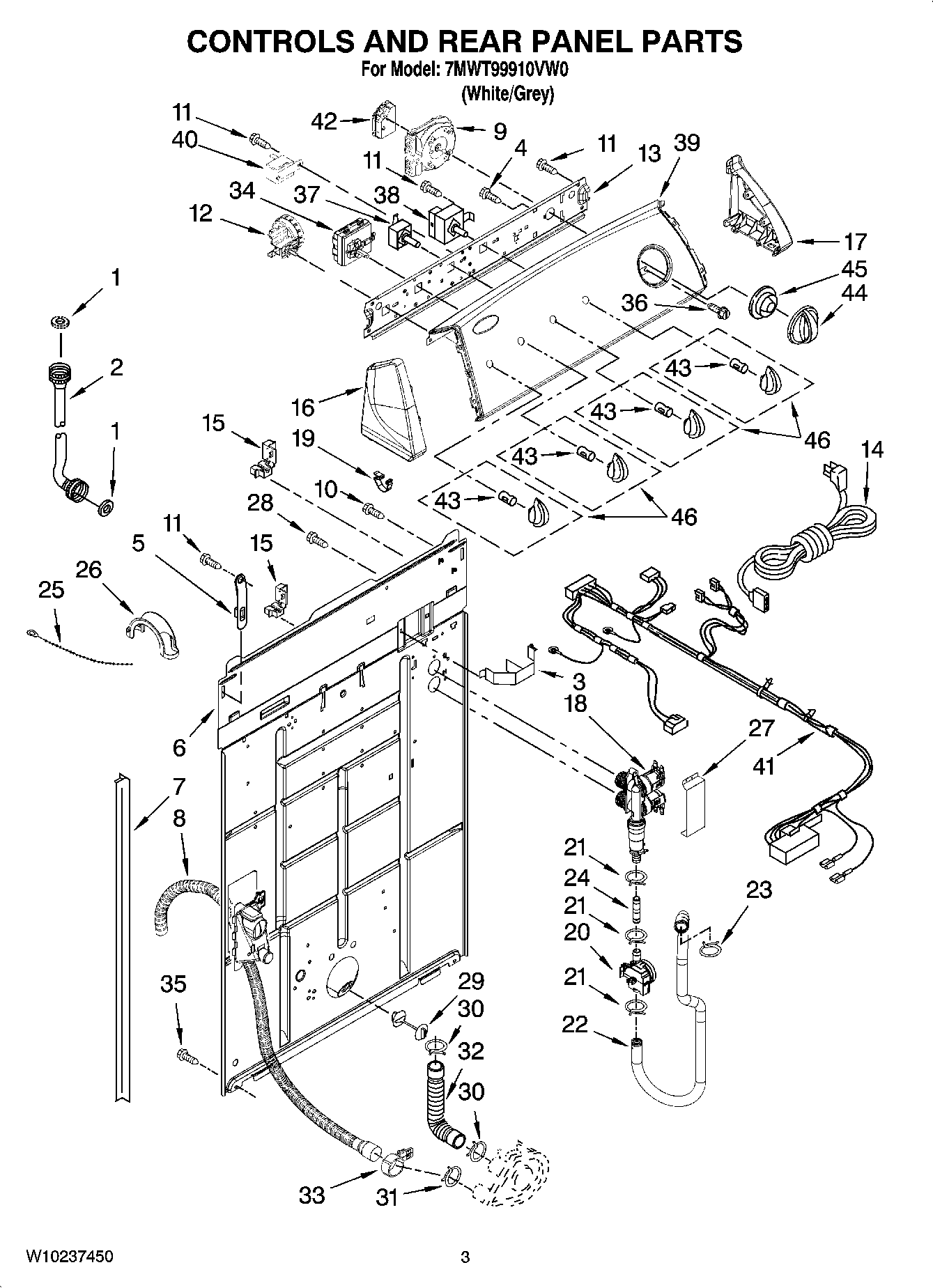

7MWT99910VW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP89503 Whirlpool Washer Fill Hose
2	FILL HOSE 5' W/WASHER
3	Clip, Harness & Pressure Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WP8577787 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337781 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
17	WP8565954 Whirlpool Endcap
18	WPW10175893 Whirlpool Valve
19	WP8312709 Whirlpool Endcap Clip
20	Flowmeter
21	Clamp, Hose
22	W11087528 Whirlpool Hose
23	WP596669 Whirlpool Hose Clamp
24	W10166731 Whirlpool Hose
25	WPW10339879 Whirlpool Wire Tie
26	WP8577378 Whirlpool Retainer
27	Shield, Suds
28	WP9740848 Whirlpool Dishwasher Screw
29	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	8541668 Whirlpool Washer Clamp
34	WPW10184148 Whirlpool Temperature Switch
35	WP3390631 Whirlpool Screw
36	WP3400818 Whirlpool Screw
37	W10851055 Whirlpool Cycle Switch
38	Switch, Rotary
39	Panel, Console
40	WP694419 Whirlpool Buzzer Adjuster
41	Harness, Wiring (For Detail See Pages 9 & 10)
42	Circuit Board, Agitation Delay
43	WP8536939 Whirlpool Spring Clip
44	Knob, Timer
45	WP8566018 Whirlpool Dial Assembly
46	Knob, Control (3)
