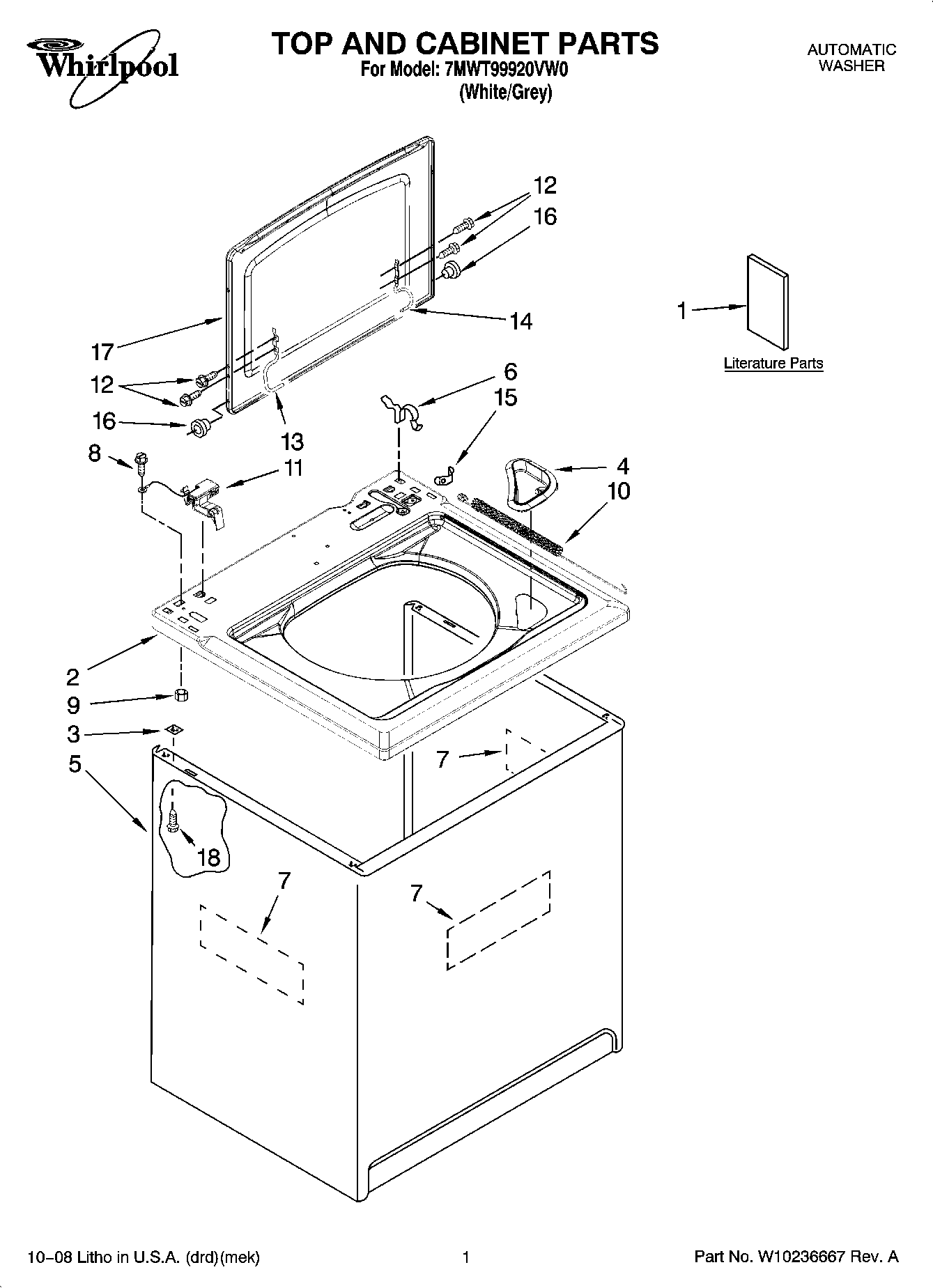

7MWT99920VW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
1	Installation Instructions
1	Feature Sheet
1	Energy Guide
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WPW10192089 Whirlpool Washer Bleach Dispenser
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	W11096159 Whirlpool Sound ABS Assembly
8	WP3351614 Whirlpool Screw
9	W10080180 Whirlpool Nut
10	W10208782 Whirlpool Spring
11	WP8318084 Whirlpool Washer Lid Switch Assembly
12	SCREW
13	Hinge, Lid (L.H.)
14	W10202542 Whirlpool Hinge
15	Clip, Retainer
16	Bearing, Lid Hinge (2)
17	WPW10164516 Whirlpool Lid Assembly
18	WP3390631 Whirlpool Screw
