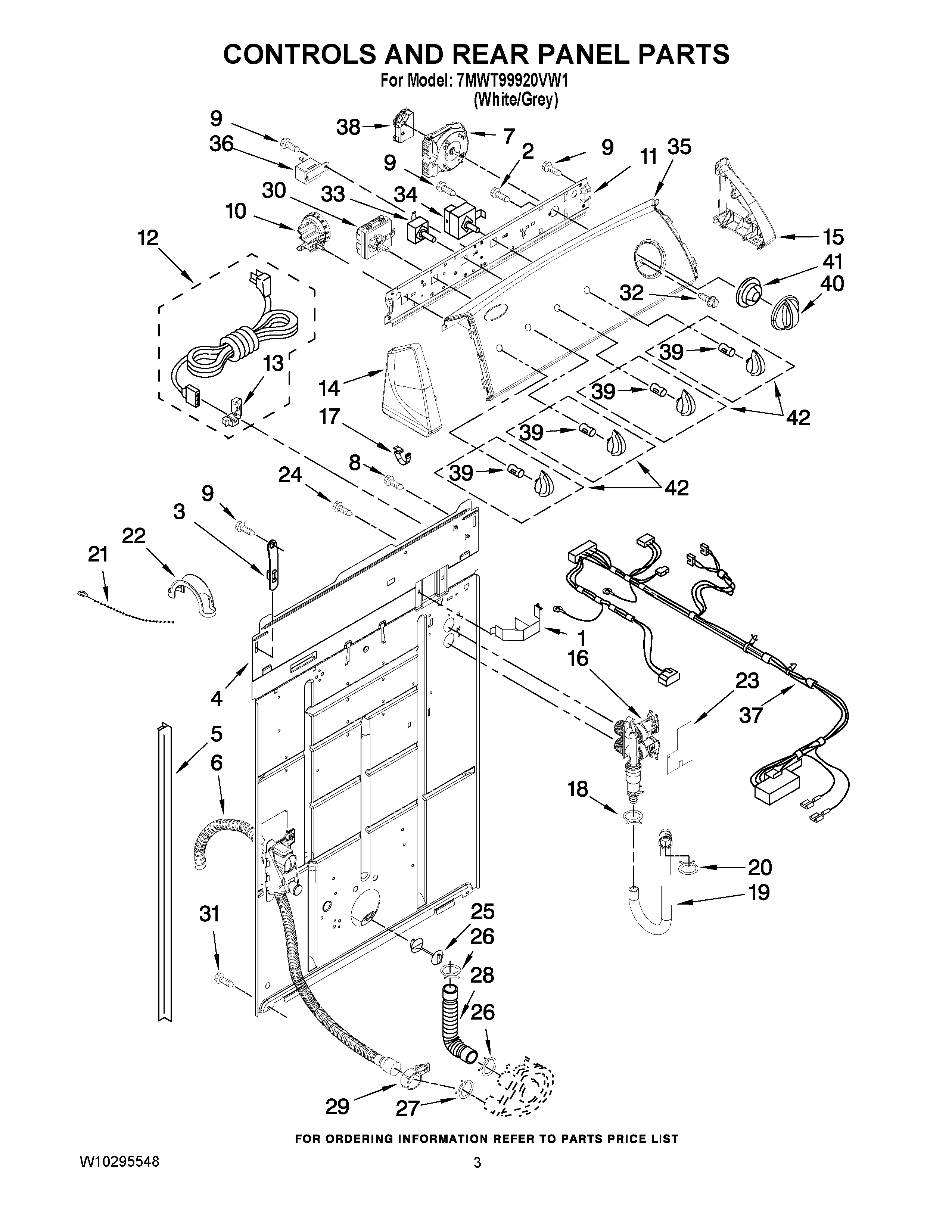

7MWT99920VW1 02 – CONTROLS AND REAR PANEL PARTS

7MWT99920VW1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

7MWT99920VW1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1Clip, Harness & Pressure Hose
23400073 Whirlpool Screw
3WP8568314 Whirlpool Strap
4Panel, Rear
5WP62747 Whirlpool Pad
6WPW10189267 Whirlpool Drain Hose
7WP8577787 Whirlpool Timer Assembly
8WP3351614 Whirlpool Screw
9WP90767 Whirlpool Screw
10W10337781 Whirlpool Washer Water Level Switch
11Bracket, Control
12Cord, Power (Includes Item 15)
13Strain Relief, Power Cord
14WP8565957 Whirlpool Endcap Assembly
15WP8565954 Whirlpool Endcap
16WPW10175893 Whirlpool Valve
17WP8312709 Whirlpool Endcap Clip
18Clamp, Hose
19HOSE, VALVE TO TUB RING
20WP596669 Whirlpool Hose Clamp
21WPW10339879 Whirlpool Wire Tie
22WP8577378 Whirlpool Retainer
23SHIELD, SUDS
24WP9740848 Whirlpool Dishwasher Screw
25WP8519200 Whirlpool Support Assembly
26WP616099 Whirlpool Clamp
27WP285655 Whirlpool Hose Clamp
28285871 Whirlpool Hose and Clamp
298541668 Whirlpool Washer Clamp
30WPW10184148 Whirlpool Temperature Switch
31WP3390631 Whirlpool Screw
32WP3400818 Whirlpool Screw
33W10851055 Whirlpool Cycle Switch
34Switch, Rotary
35Panel, Console
36WP694419 Whirlpool Buzzer Adjuster
37Harness, Wiring (For Detail See Pages 9 & 10)
38Circuit Board, Agitation Delay
39WP8536939 Whirlpool Spring Clip
40Knob, Timer
41WP8566018 Whirlpool Dial Assembly
42Knob, Control (3)
