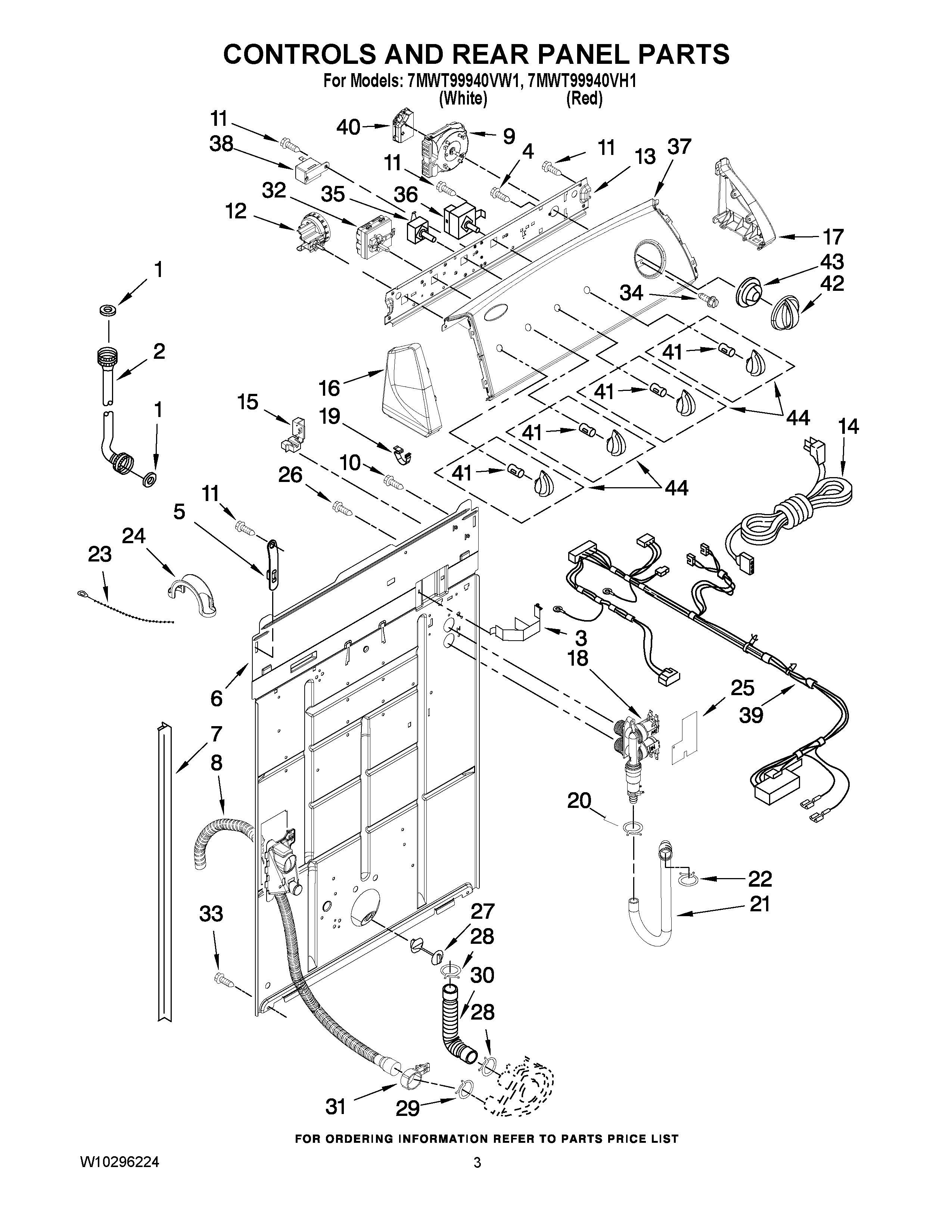

7MWT99940VH1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP89503 Whirlpool Washer Fill Hose
3	Clip, Harness & Pressure Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WP8577787 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339331 Whirlpool Control Switch
13	Bracket, Control
14	Cord, Power (Includes Item 15)
15	Strain Relief, Power Cord
16	WP8565957 Whirlpool Endcap Assembly
16	Cap, End (L.H.) (Includes Item 19) (Red)
17	WP8565954 Whirlpool Endcap
17	Cap, End (R.H.) (Includes Item 19) (Red)
18	WPW10175893 Whirlpool Valve
19	WP8312709 Whirlpool Endcap Clip
20	Clamp, Hose
21	HOSE, VALVE TO TUB RING
22	WP596669 Whirlpool Hose Clamp
23	WPW10339879 Whirlpool Wire Tie
24	WP8577378 Whirlpool Retainer
25	SHIELD, SUDS
26	WP9740848 Whirlpool Dishwasher Screw
27	WP8519200 Whirlpool Support Assembly
28	WP616099 Whirlpool Clamp
29	WP285655 Whirlpool Hose Clamp
30	285871 Whirlpool Hose and Clamp
31	8541668 Whirlpool Washer Clamp
32	WPW10184148 Whirlpool Temperature Switch
33	WP3390631 Whirlpool Screw
34	WP3400818 Whirlpool Screw
35	W10168264 Whirlpool Cycle Switch
36	Switch, Rotary
37	Panel, Console
38	WP694419 Whirlpool Buzzer Adjuster
39	Harness, Wiring (For De
40	Circuit Board, Agitation Delay
41	WP8536939 Whirlpool Spring Clip
42	Knob, Timer
43	WP8566018 Whirlpool Dial Assembly
44	Knob, Control (3)
