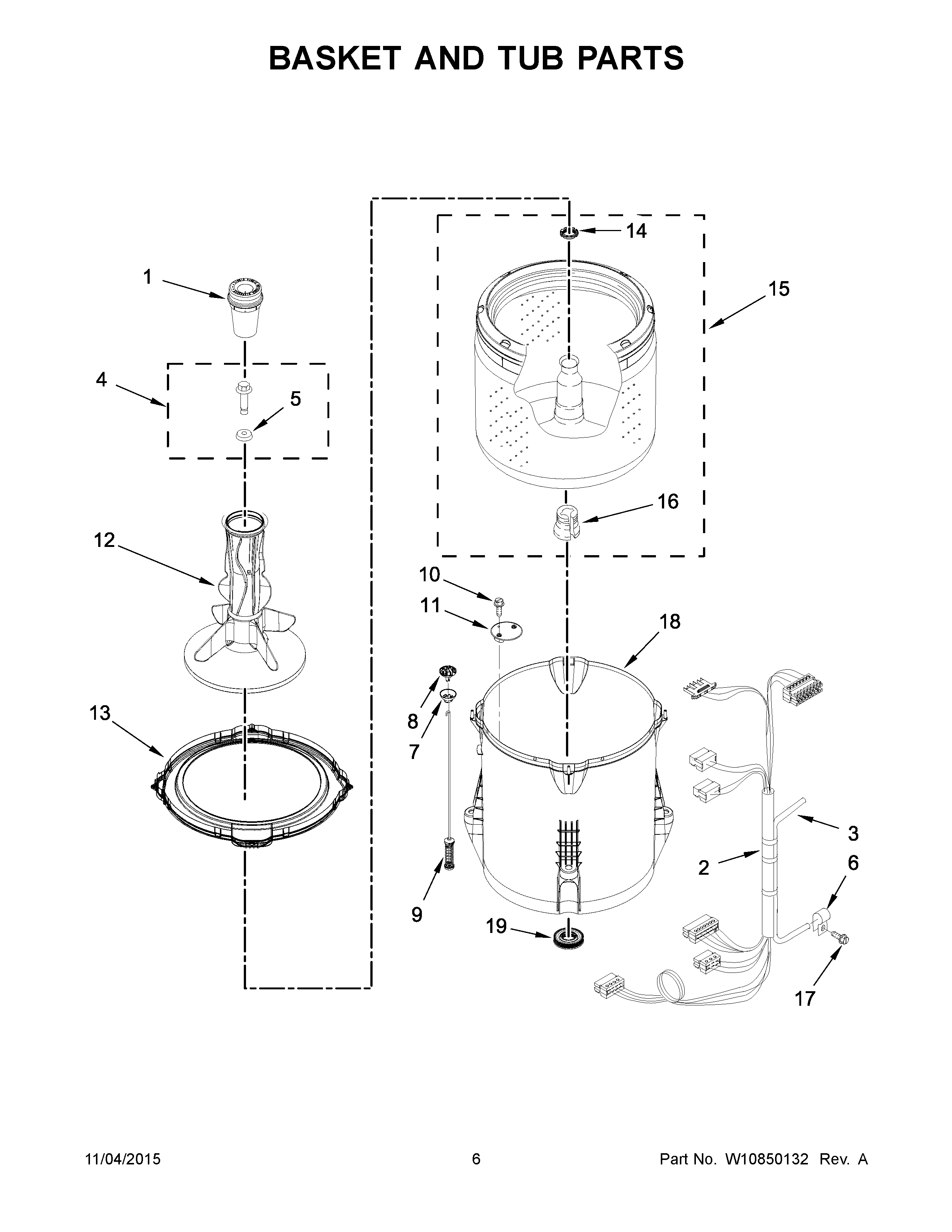

7MWTW1500EM0 04 – BASKET AND TUB PARTS

7MWTW1500EM0 04 – BASKET AND TUB PARTS

Written by

in

7MWTW1500EM0 04 – BASKET AND TUB PARTS

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2W10678684 Whirlpool Wire Harness
3WP353244 Whirlpool Hose
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6W10005430 Whirlpool Clamp
7W10440729 Whirlpool Suspension
8W10780046 Whirlpool Suspension Rod Kit
9W10780045 Whirlpool Suspension Rod
10WP8533928 Whirlpool Refrigerator Screw
11WPW10215093 Whirlpool Filter
12WP63235 Whirlpool Agitator Assembly
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WPW10109200 Whirlpool Screw
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
