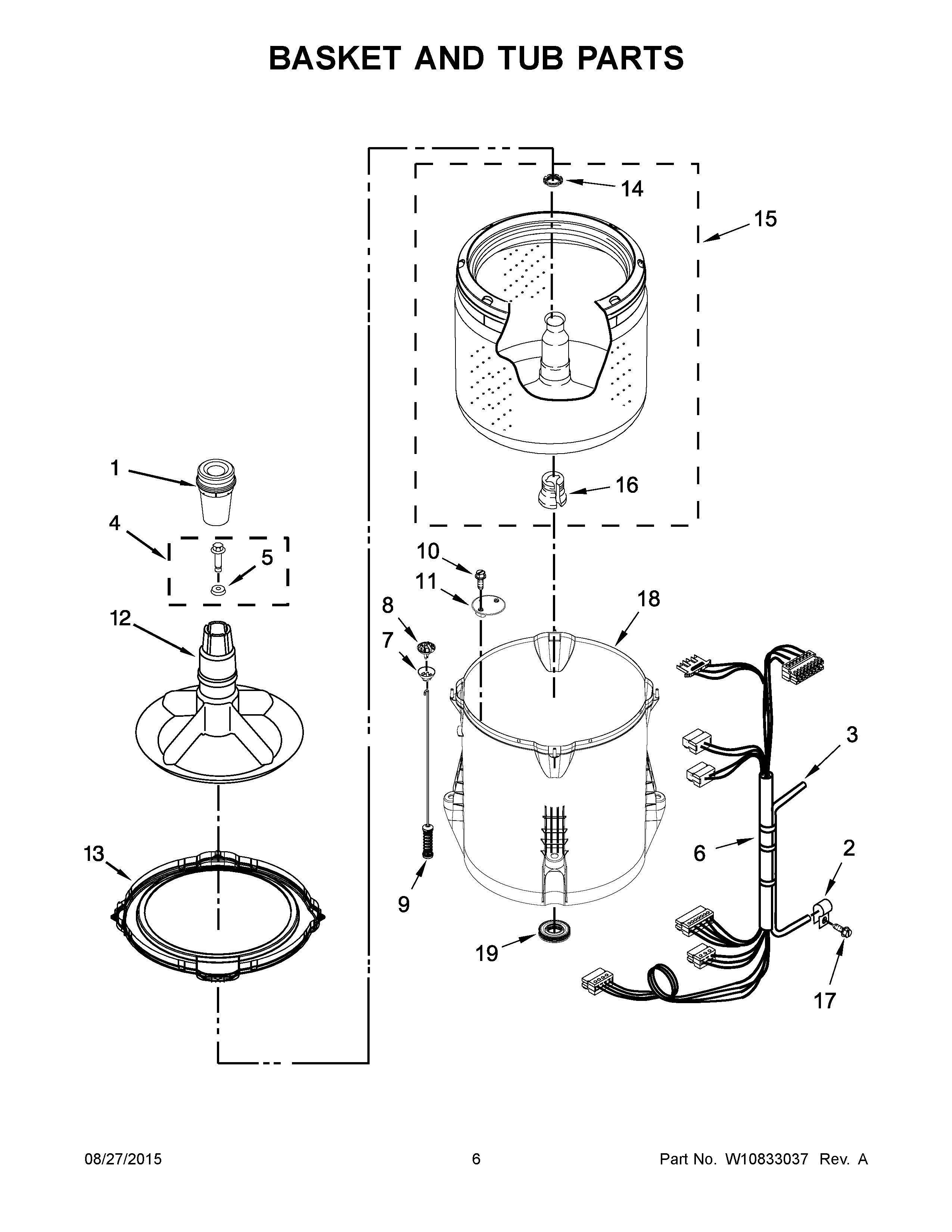

7MWTW1504DQ1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	63580 Whirlpool Washer Fabric Softener Dispenser
2	W10005430 Whirlpool Clamp
3	WP353244 Whirlpool Hose
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	HARNESS, LOWER
7	W10440729 Whirlpool Suspension
8	W10780046 Whirlpool Suspension Rod Kit
9	W10780048 Whirlpool Washer Suspension Rod Assembly
10	WP8533928 Whirlpool Refrigerator Screw
11	WPW10215093 Whirlpool Filter
12	WP63235 Whirlpool Agitator Assembly
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10738339 Whirlpool Basket Assembly
16	WP389140 Whirlpool Drive Block or Bell
17	WPW10109200 Whirlpool Screw
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
