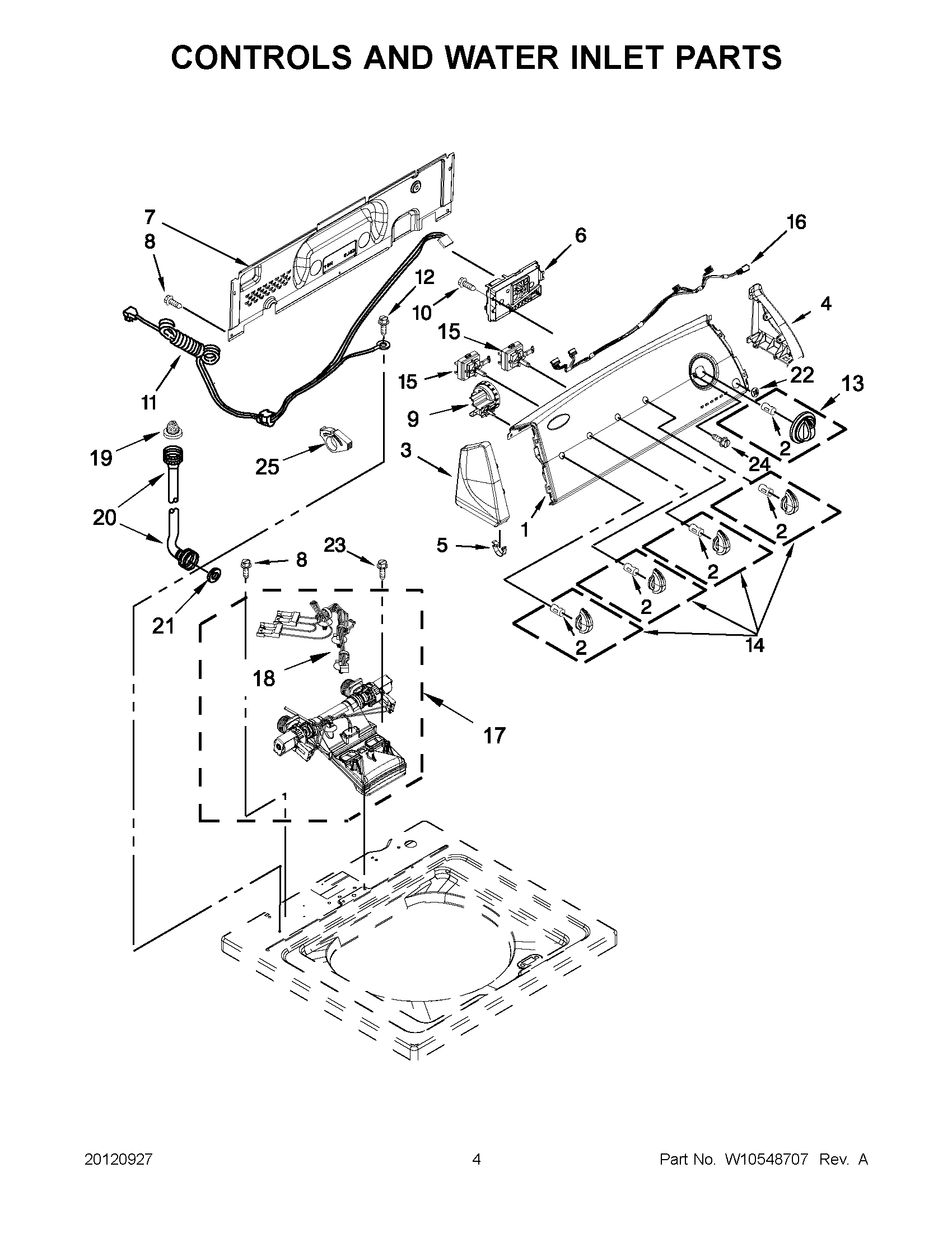

7MWTW1602AW1 02 – CONTROLS AND WATER INLET PARTS

7MWTW1602AW1 02 – CONTROLS AND WATER INLET PARTS

Written by

in

7MWTW1602AW1 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10480340-includeCORE Whirlpool W10480340 Refrigerator Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10268911 Whirlpool Washer Water Level Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285512 Whirlpool Cycle Switch
16W10291174 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
18W10876654 Whirlpool Wire Harness
19285452A Whirlpool Hose Seal and Screen
20WP89503 Whirlpool Washer Fill Hose
21WP16123 Whirlpool Washer
22WPW10251309 Whirlpool Push Button
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
25WPW10663966 Whirlpool Washer Water Level Switch
