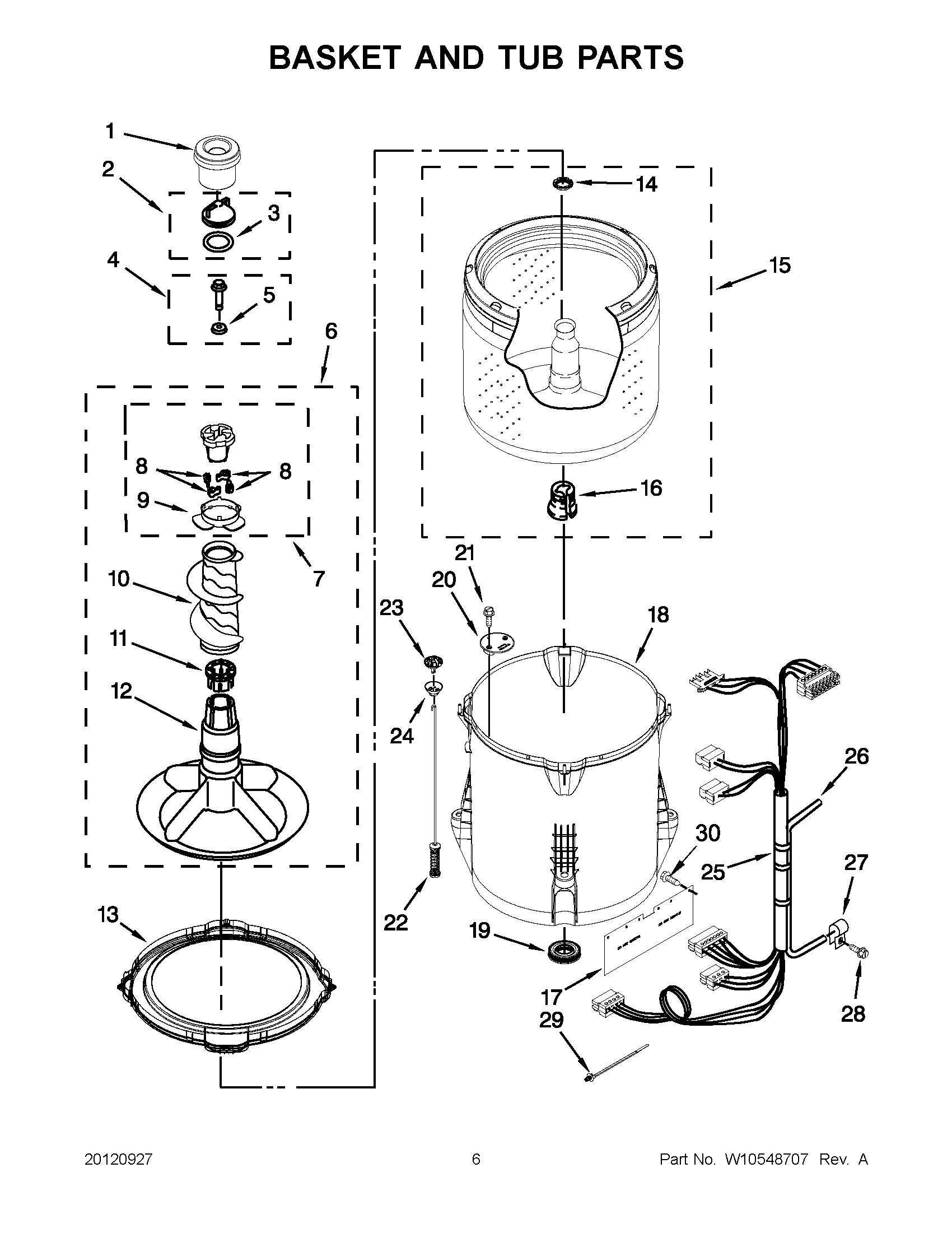

7MWTW1602AW1 03 – BASKET AND TUB PARTS

Products

Position	Product
1	8575076A Whirlpool Fabric Softener Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	285565 Whirlpool Agitator Assembly
7	285811 Whirlpool Washer Agitator Repair Kit
8	80040 Whirlpool Washer Agitator Dog Kit
9	WP3363661 Whirlpool Bearing Cam
10	WP3348752 Whirlpool Agitator Mover
11	285587 Whirlpool Thrust Washer
12	AGITATOR
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10738339 Whirlpool Basket Assembly
16	WP389140 Whirlpool Drive Block or Bell
17	W10339098 Whirlpool Shield
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
22	W10780048 Whirlpool Washer Suspension Rod Assembly
23	BALL, SUSPENSION (SET OF4 - INCLUDES SUSPENSIONBUSHINGS)
24	W10440729 Whirlpool Suspension
25	HARNESS, LOWER (INCLUDES PRESSURE HOSE & CABLE TIE)
26	WP353244 Whirlpool Hose
27	W10005430 Whirlpool Clamp
28	WPW10109200 Whirlpool Screw
29	WPW10298887 Whirlpool Wire Tie Assembly
30	W10429200 Whirlpool Retainer
