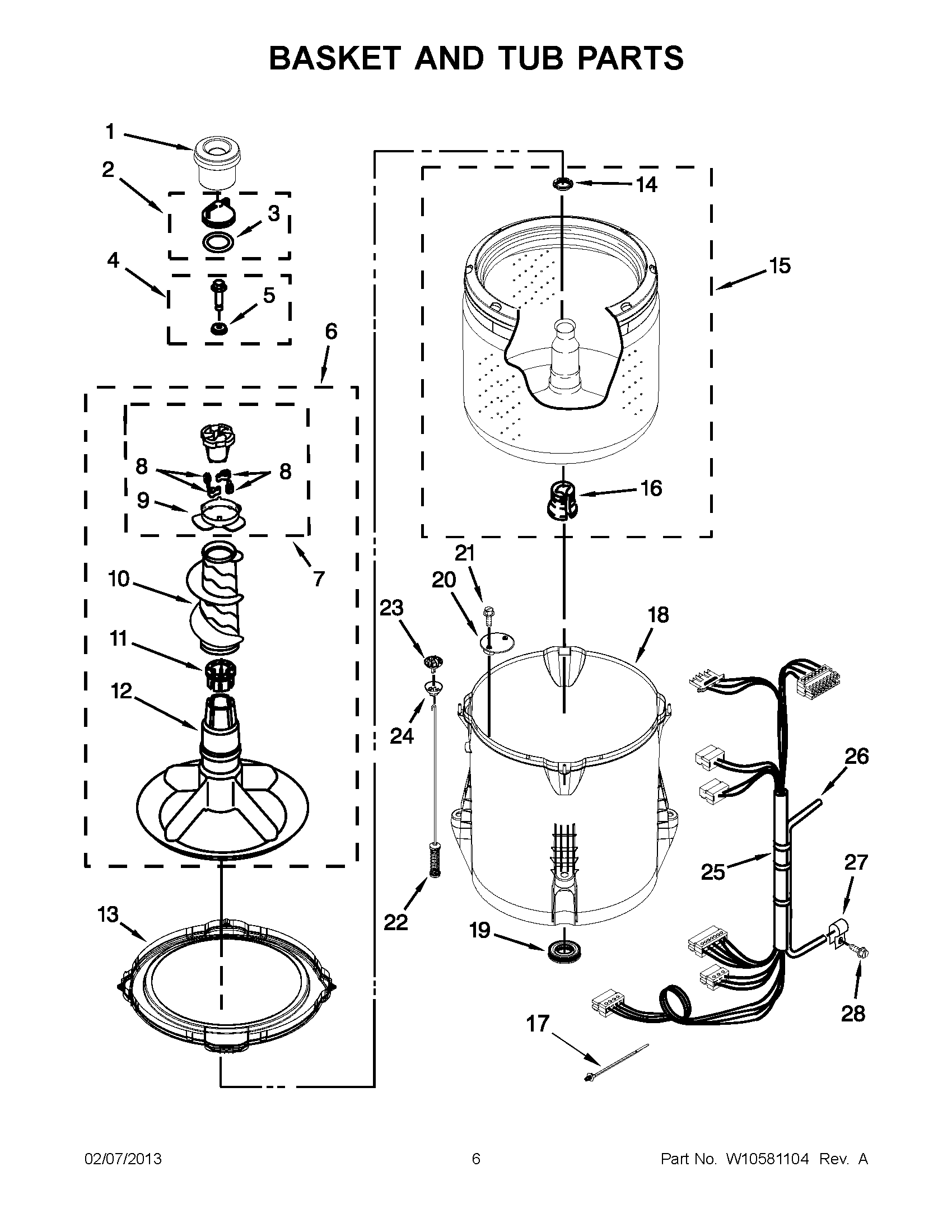

7MWTW1602BM0 03 – BASKET AND TUB PARTS

7MWTW1602BM0 03 – BASKET AND TUB PARTS

Written by

in

7MWTW1602BM0 03 – BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6285565 Whirlpool Agitator Assembly
7285811 Whirlpool Washer Agitator Repair Kit
880040 Whirlpool Washer Agitator Dog Kit
9WP3363661 Whirlpool Bearing Cam
10WP3348752 Whirlpool Agitator Mover
11285587 Whirlpool Thrust Washer
12AGITATOR
13WPW10215108 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10349185 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WPW10339879 Whirlpool Wire Tie
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
21WP8533928 Whirlpool Refrigerator Screw
22W10780048 Whirlpool Washer Suspension Rod Assembly
23BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSIONBUSHINGS)
24W10440729 Whirlpool Suspension
25HARNESS, LOWERINCLUDES PRESSUREHOSE & CABLE TIE)
26WP353244 Whirlpool Hose
27W10005430 Whirlpool Clamp
28WPW10109200 Whirlpool Screw
