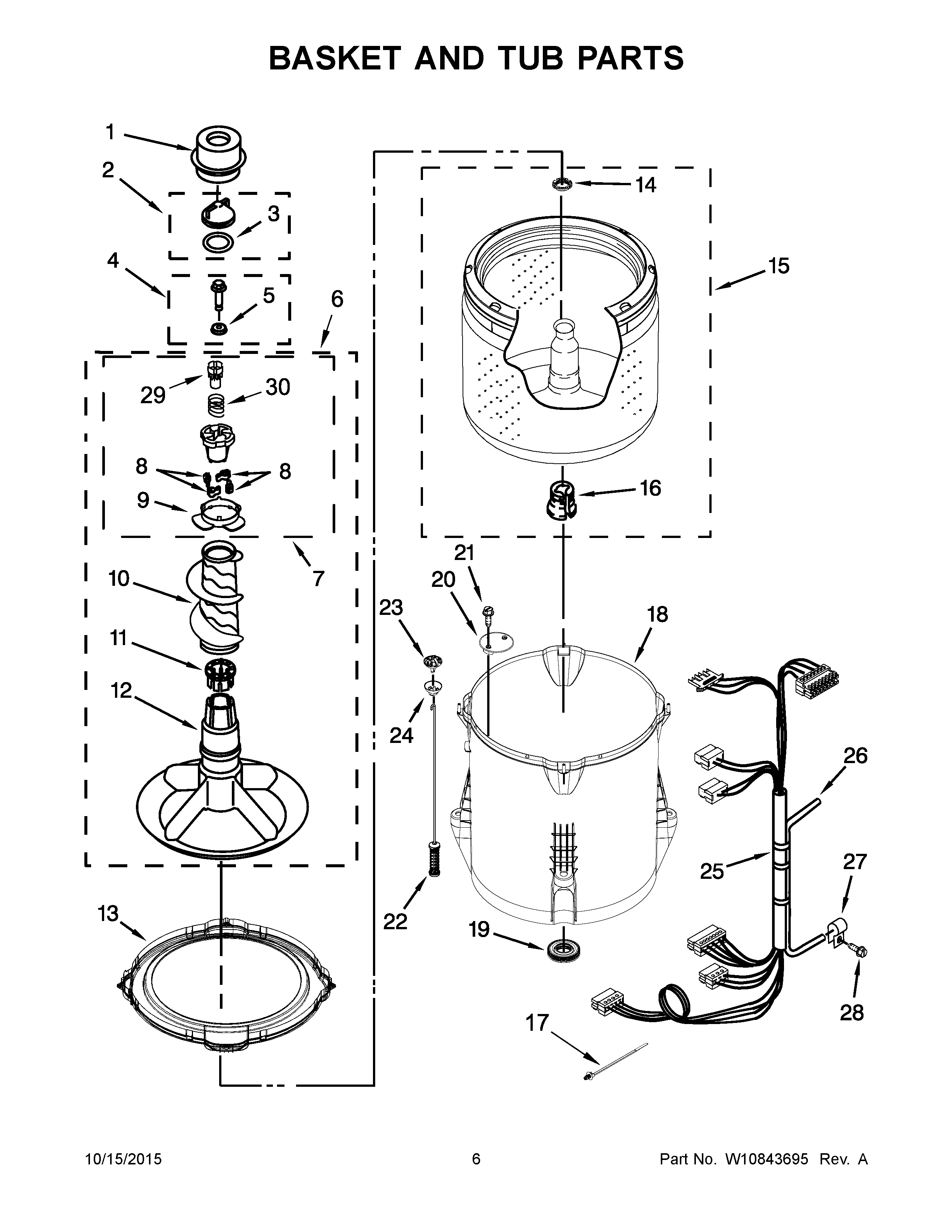

7MWTW1602BM1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	8575076A Whirlpool Fabric Softener Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	285565 Whirlpool Agitator Assembly
7	285811 Whirlpool Washer Agitator Repair Kit
8	80040 Whirlpool Washer Agitator Dog Kit
9	WP3363661 Whirlpool Bearing Cam
10	WP3348752 Whirlpool Agitator Mover
11	285587 Whirlpool Thrust Washer
12	AGITATOR
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10349185 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	WPW10339879 Whirlpool Wire Tie
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
22	W10780048 Whirlpool Washer Suspension Rod Assembly
23	W10780046 Whirlpool Suspension Rod Kit
24	W10440729 Whirlpool Suspension
25	W10610077 Whirlpool Wire Harness Assembly
26	WP353244 Whirlpool Hose
27	W10005430 Whirlpool Clamp
28	WPW10109200 Whirlpool Screw
