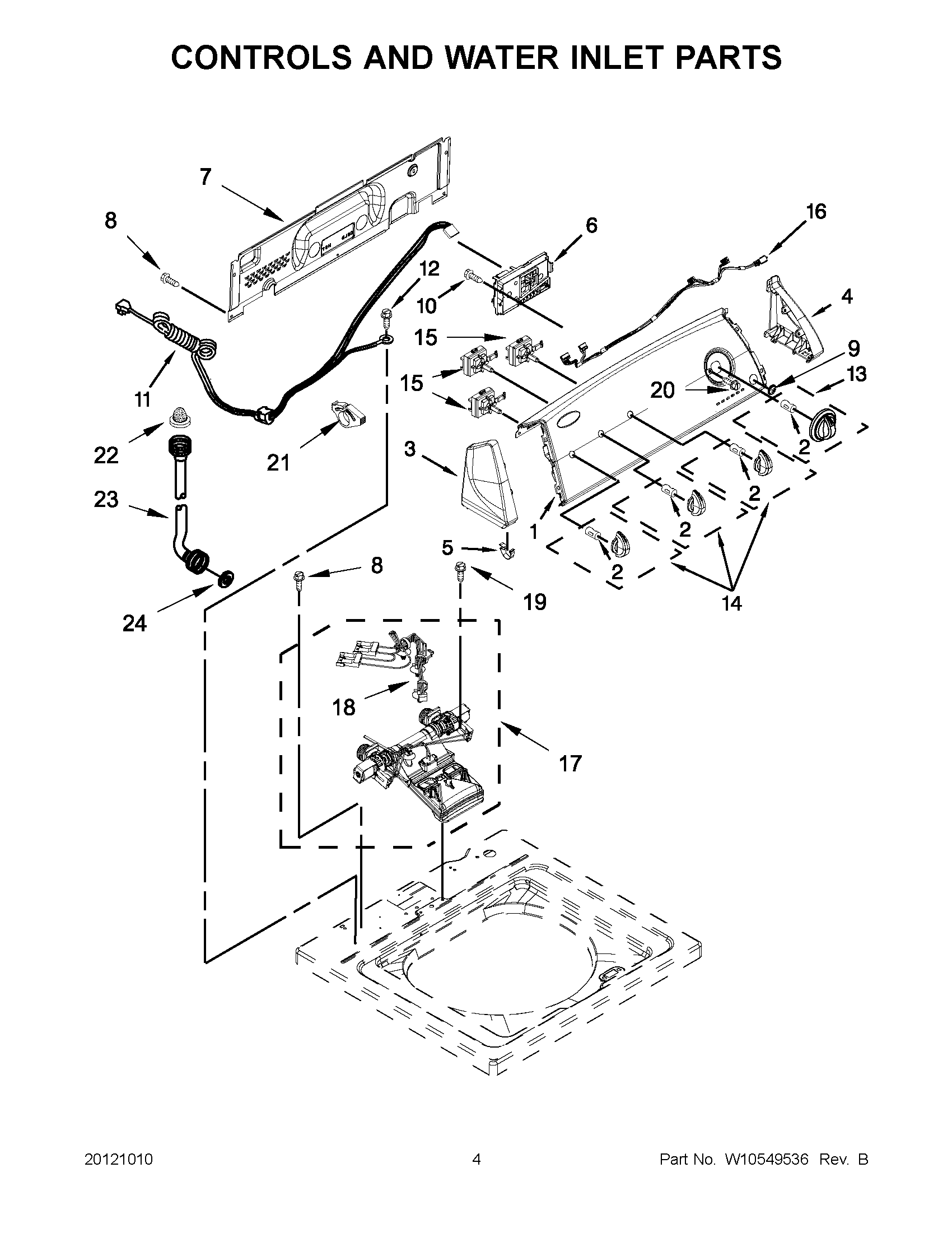

7MWTW1603AW2 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10538242-includeCORE Whirlpool W10538242 Washer Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10251309 Whirlpool Push Button
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
123400073 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285512 Whirlpool Cycle Switch
16W10291183 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
18W10876654 Whirlpool Wire Harness
19WP8281163 Whirlpool Refrigerator Screw
20WP3400818 Whirlpool Screw
21WPW10663966 Whirlpool Washer Water Level Switch
22285452A Whirlpool Hose Seal and Screen
23WP89503 Whirlpool Washer Fill Hose
24WP16123 Whirlpool Washer
