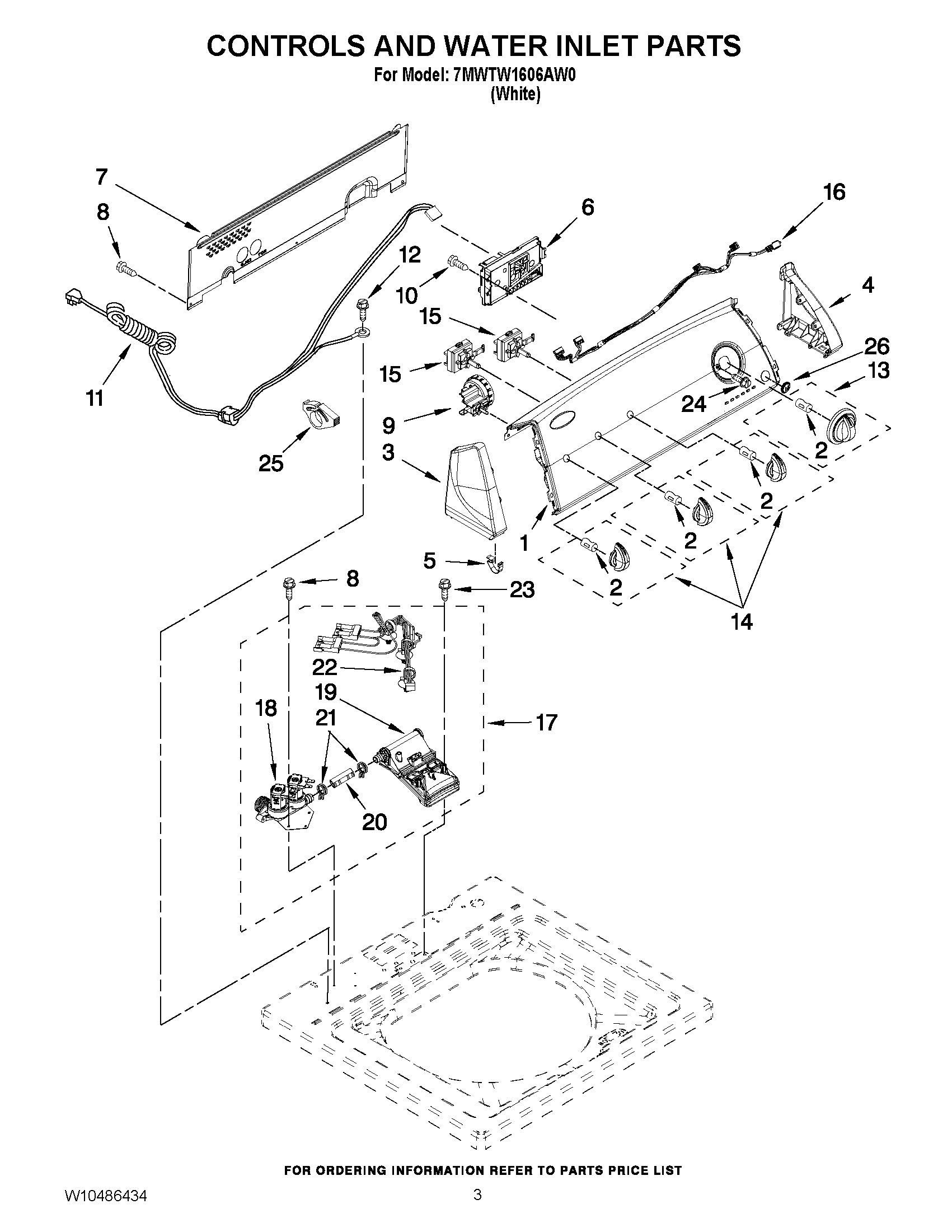

7MWTW1606AW0 02 – CONTROLS AND WATER INLET PARTS

7MWTW1606AW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

7MWTW1606AW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1WPW10480355 Whirlpool Console
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10480343 Whirlpool Electronic Control Board + Core
7WPW10420985 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10268911 Whirlpool Washer Water Level Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13WP8566061 Whirlpool Knob
14Knob, Control
15WPW10285512 Whirlpool Cycle Switch
16W10291174 Whirlpool Wire Harness
17WPW10432360 Whirlpool Valve
18WPW10352256 Whirlpool Valve
19WPW10441423 Whirlpool Vacuum Breaker
20W10238347 Whirlpool Hose Assembly
21WP596669 Whirlpool Hose Clamp
22WPW10344775 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
25WPW10663966 Whirlpool Washer Water Level Switch
26WPW10251309 Whirlpool Push Button
