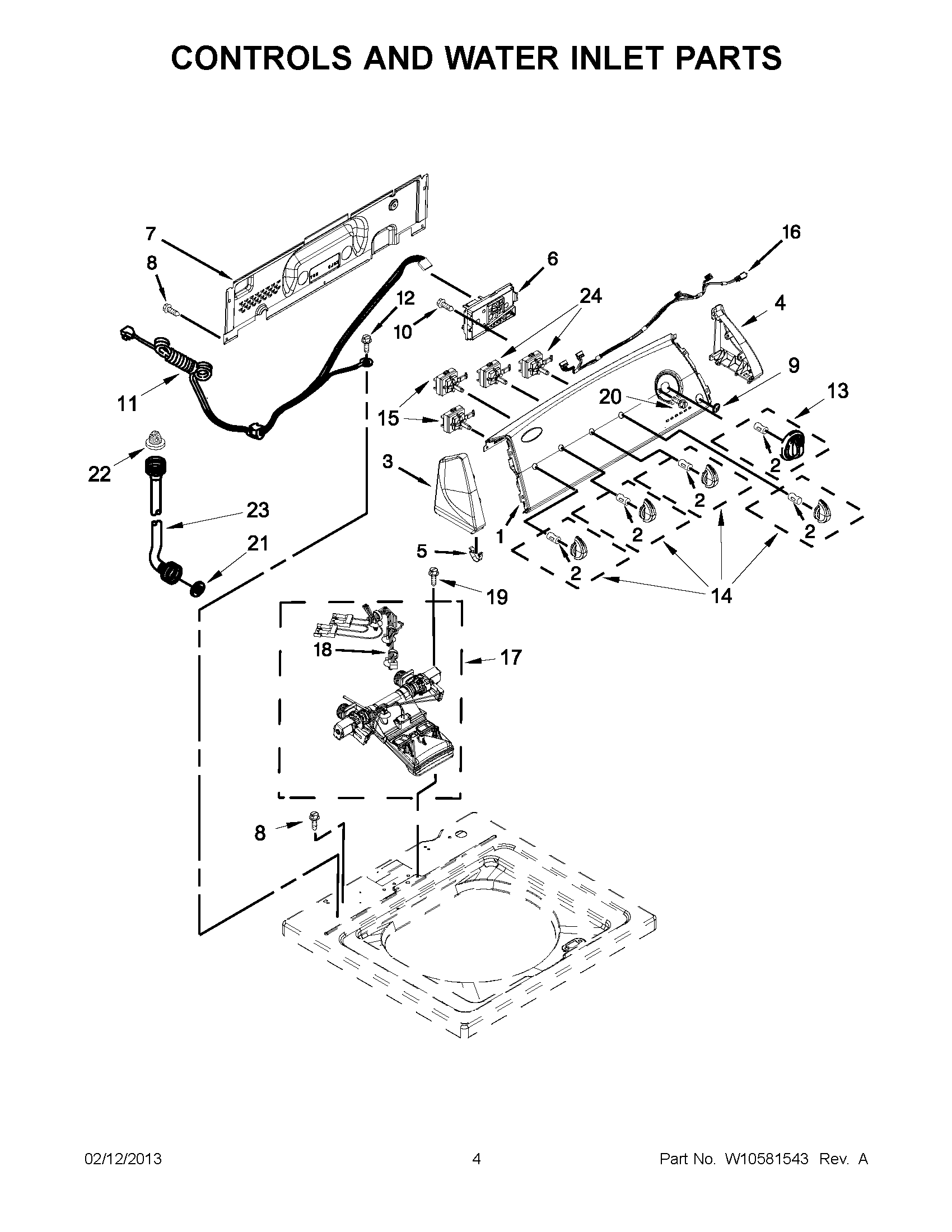

7MWTW1704BM0 02 – CONTROLS AND WATER INLET PARTS

7MWTW1704BM0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

7MWTW1704BM0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W10552363 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10723789 Whirlpool Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10251309 Whirlpool Push Button
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285512 Whirlpool Cycle Switch
16WPW10291176 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
18W10876654 Whirlpool Wire Harness
19WP8281163 Whirlpool Refrigerator Screw
20WP3400818 Whirlpool Screw
21WP16123 Whirlpool Washer
22285452A Whirlpool Hose Seal and Screen
23WP89503 Whirlpool Washer Fill Hose
24WPW10285511 Whirlpool Cycle Switch
