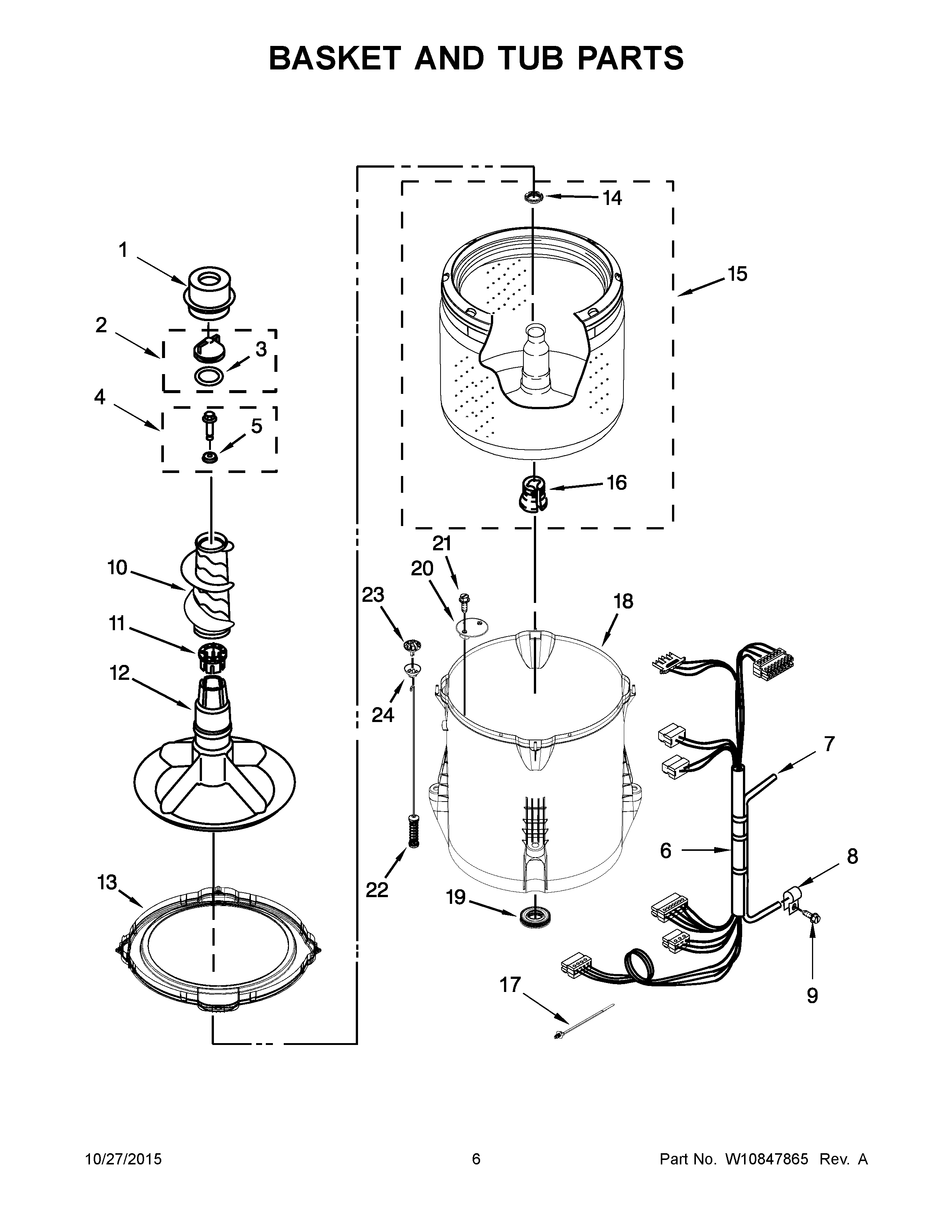

7MWTW1704BM1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	WP8580006 Whirlpool Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	W10610077 Whirlpool Wire Harness Assembly
7	WP353244 Whirlpool Hose
8	W10005430 Whirlpool Clamp
9	WPW10109200 Whirlpool Screw
10	WP8054468 Whirlpool Agitator Auger
11	WP8055228 Whirlpool Washer
12	WP8578209 Whirlpool Agitator
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10349185 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	WPW10339879 Whirlpool Wire Tie
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
22	W10780048 Whirlpool Washer Suspension Rod Assembly
23	W10780046 Whirlpool Suspension Rod Kit
24	W10440729 Whirlpool Suspension
