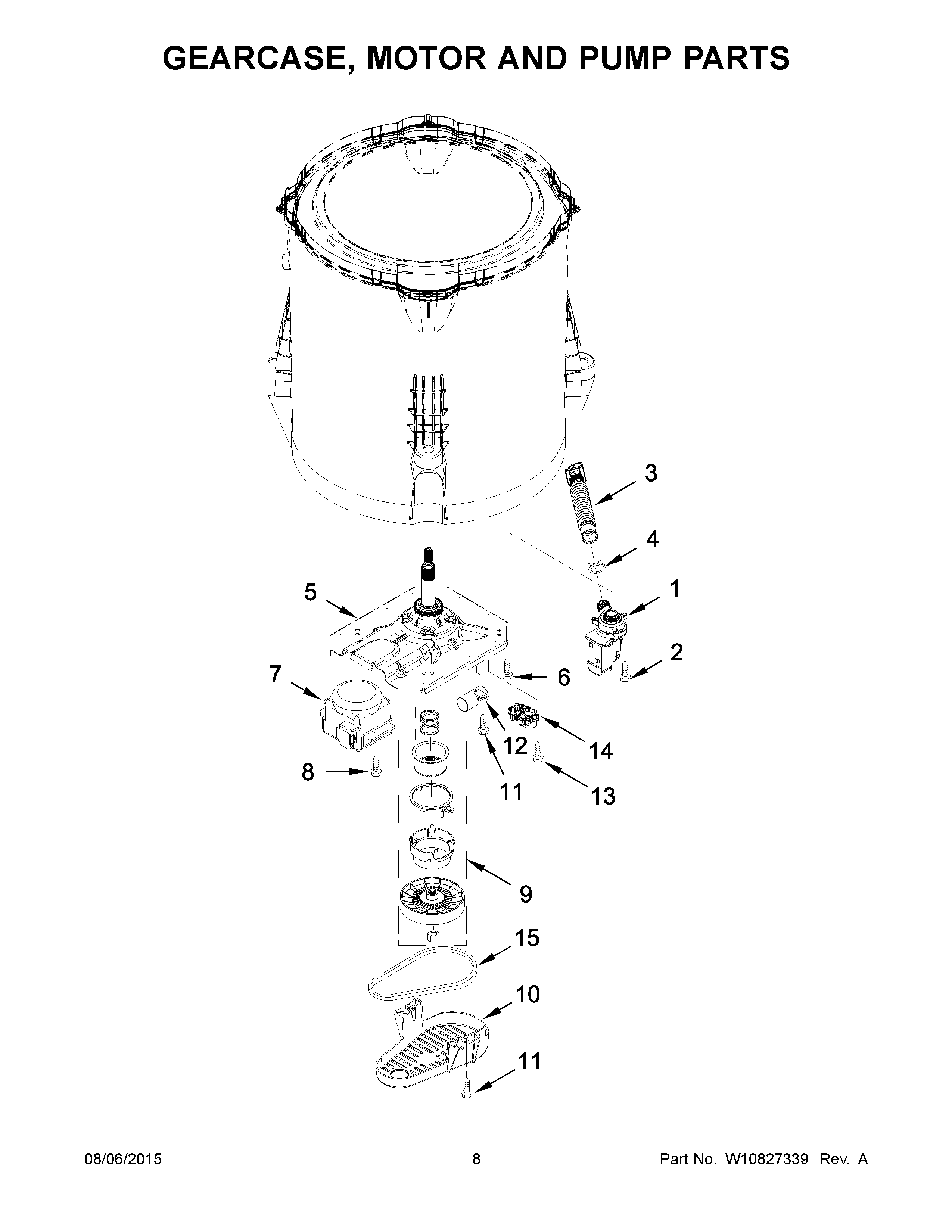

7MWTW1709DM1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10465543 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7WPW10677715 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10WPW10427633 Whirlpool Belt Shield
11W11573574 Whirlpool Screw
12W11158830 Whirlpool Capacitor
13W11596033 Whirlpool Microwave Screw
14ACTUATOR
15WPW10006384 Whirlpool Washer Drive Belt
