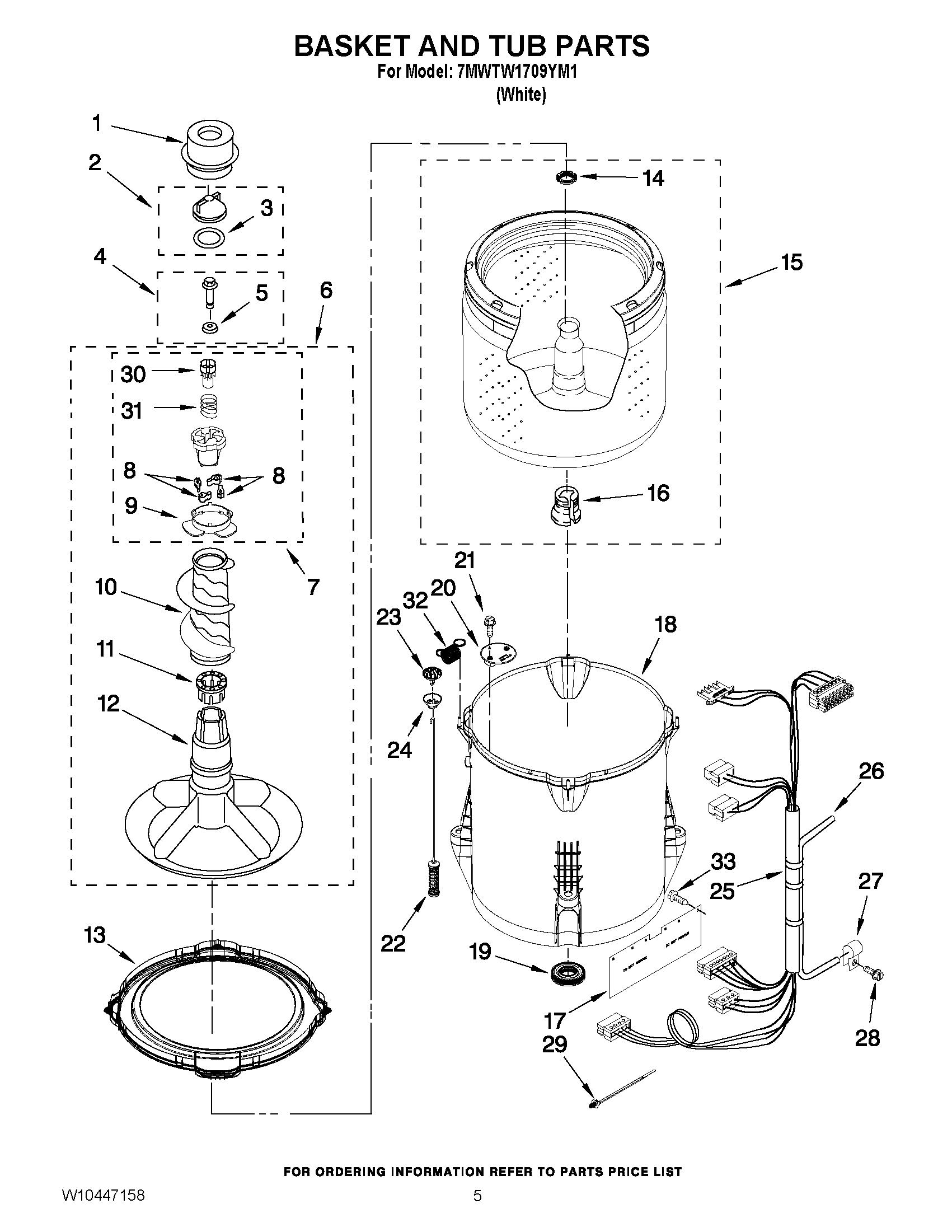

7MWTW1709YM1 03 – BASKET AND TUB PARTSadmin2025-04-26T09:47:24+00:007MWTW1709YM1 03 – BASKET AND TUB PARTS ProductsPositionProduct1WP8580006 Whirlpool Dispenser2WPW10074580 Whirlpool Agitator Inner Cap and Seal3WPW10072840 Whirlpool Seal Assembly4W10772621 Whirlpool Washplate Screw5WP3949550 Whirlpool Gasket Assembly6WP8578210 Whirlpool Agitator7WP8537434 Whirlpool Agitator Cam880040 Whirlpool Washer Agitator Dog Kit9WP8055141 Whirlpool Bearing Assembly10WP8054468 Whirlpool Agitator Auger11WP8055228 Whirlpool Washer12WP8578209 Whirlpool Agitator13WPW10215108 Whirlpool Tub Ring14WP21366 Whirlpool Spanner Nut15W10349185 Whirlpool Basket16WP389140 Whirlpool Drive Block or Bell17W10339098 Whirlpool Shield18W10371566 Whirlpool Outer Tub19W10324647 Whirlpool Seal Tub20WPW10215093 Whirlpool Filter21WP8533928 Whirlpool Refrigerator Screw22W10780048 Whirlpool Washer Suspension Rod Assembly23BALL, SUSPENSION (SET OF 4 - INCLUDES ITEM 24)24W10440729 Whirlpool Suspension25HARNESS, LOWER (INCLUDES ITEMS 18 & 21)26WP353244 Whirlpool Hose27W10005430 Whirlpool Clamp28WPW10109200 Whirlpool Screw29WPW10298887 Whirlpool Wire Tie Assembly30WP8533540 Whirlpool Retainer Clip31WP8055140 Whirlpool Spring32W10400895 Whirlpool Spring Assembly33RETAINER, PUSH IN
