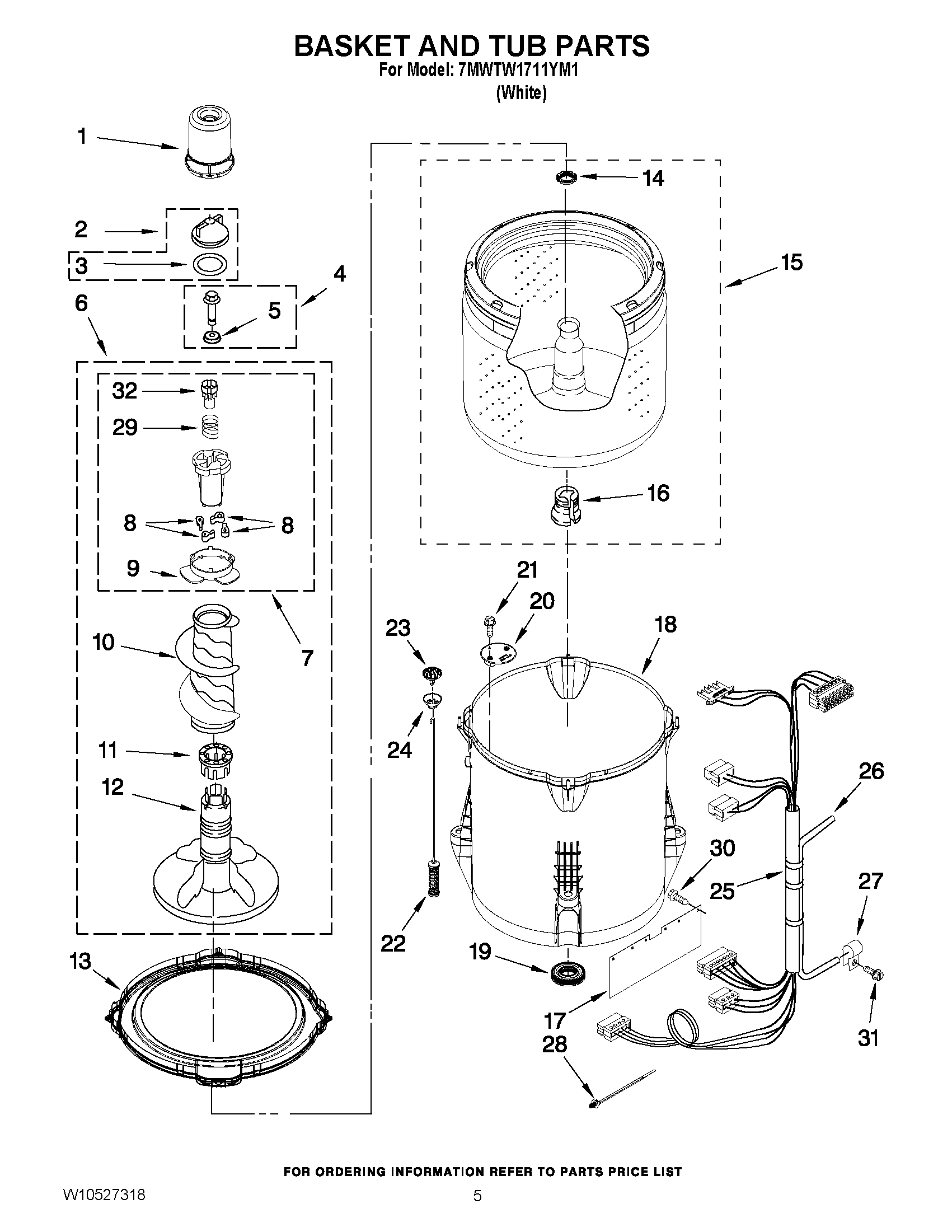

7MWTW1711YM1 03 – BASKET AND TUB PARTS

Products

Position	Product
1	WP8580006 Whirlpool Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	WP8578210 Whirlpool Agitator
7	WP8537434 Whirlpool Agitator Cam
8	80040 Whirlpool Washer Agitator Dog Kit
9	WP8055141 Whirlpool Bearing Assembly
10	WP8054468 Whirlpool Agitator Auger
11	WP8055228 Whirlpool Washer
12	WP8578209 Whirlpool Agitator
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10349185 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	W10339098 Whirlpool Shield
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
22	W10780046 Whirlpool Suspension Rod Kit
23	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSIONBUSHINGS)
24	W10440729 Whirlpool Suspension
25	HARNESS, LOWER (INCLUDES ITEMS 26 & 28)
26	WP353244 Whirlpool Hose
27	W10005430 Whirlpool Clamp
28	WPW10298887 Whirlpool Wire Tie Assembly
29	WP8055140 Whirlpool Spring
30	W10429200 Whirlpool Retainer
31	WPW10109200 Whirlpool Screw
32	WP8533540 Whirlpool Retainer Clip
