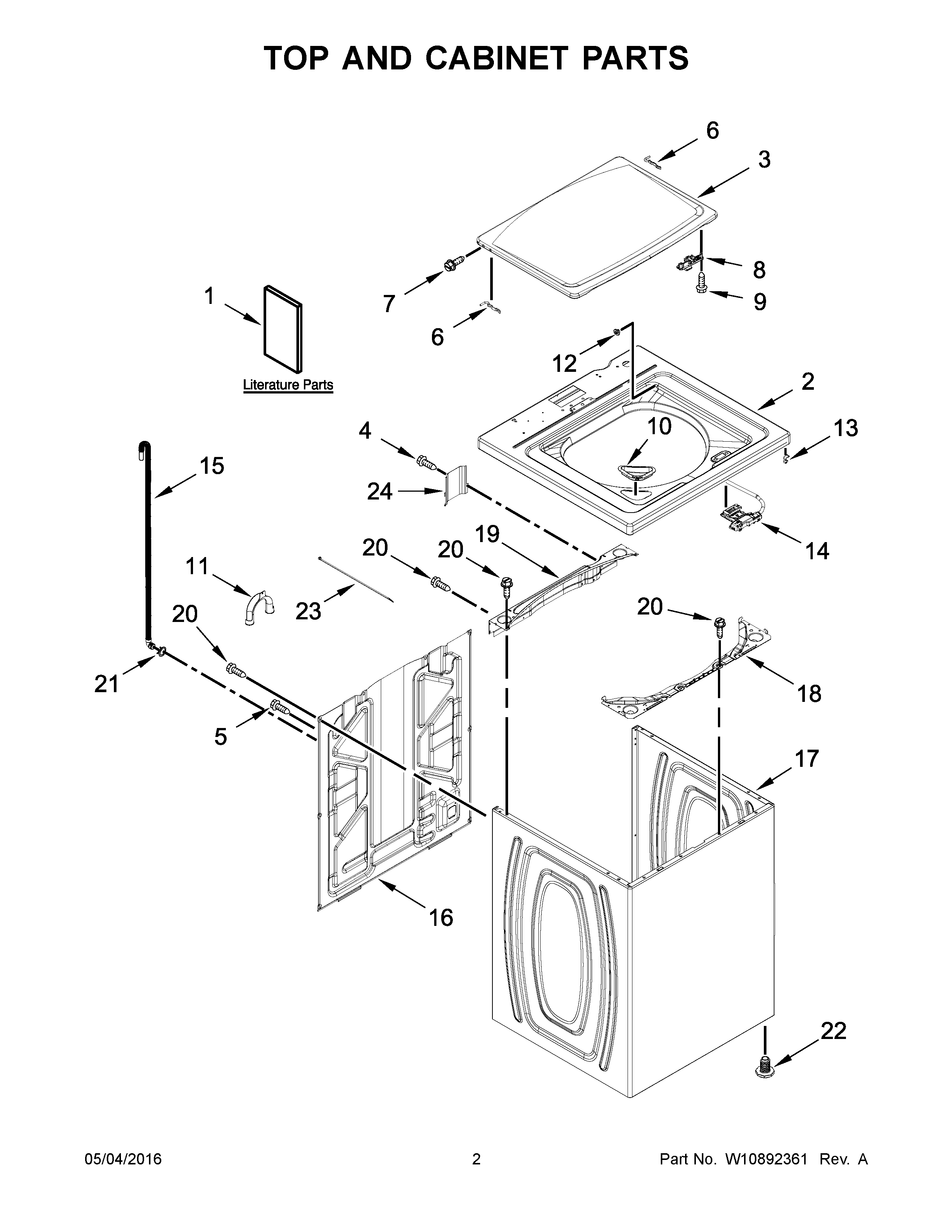

7MWTW1805EM1 02 – TOP AND CABINET PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1B	TECH SHEET
1A	USE & CARE GUIDE
1D	QUICK START GUIDE
1C	ENERGY GUIDE
2	TOP (WHITE)
3	W10551267 Whirlpool Lid
4	W10846509 Whirlpool Screw
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	W10837741 Whirlpool Washer Lid Strike
9	WPW10273971 Whirlpool Screw
10	WPW10192089 Whirlpool Washer Bleach Dispenser
11	WPW10280024 Whirlpool Retainer
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH-WASHER LID
15	W11244231 Whirlpool Hose
16	W11486091 Whirlpool Rear Panel
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	WP356138 Whirlpool Hose Clamp
22	WPW10687506 Whirlpool Washer Leveling Leg
23	WPW10339879 Whirlpool Wire Tie
24	W10676061 Whirlpool Cover Assembly
