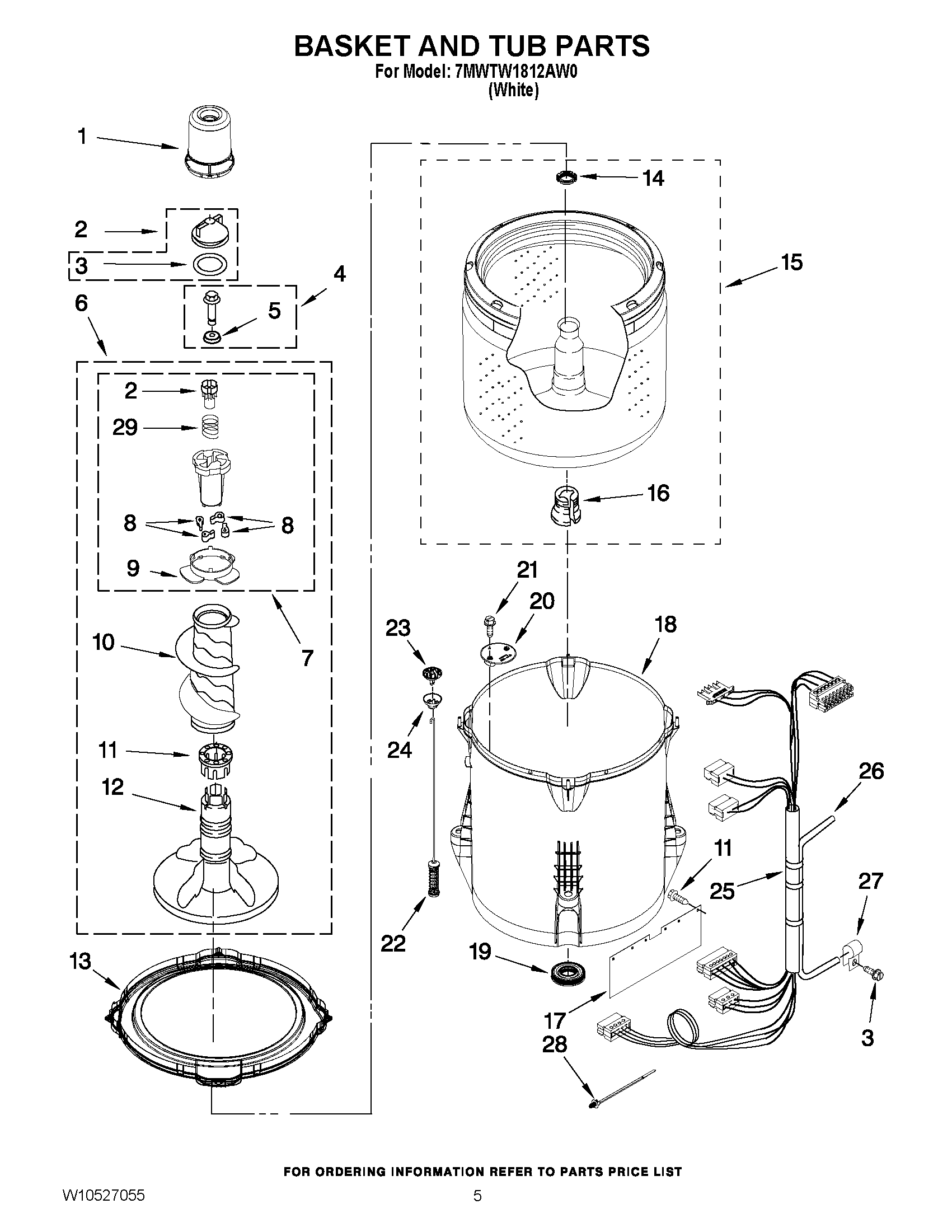

7MWTW1812AW0 03 – BASKET AND TUB PARTS

7MWTW1812AW0 03 – BASKET AND TUB PARTS

Written by

in

7MWTW1812AW0 03 – BASKET AND TUB PARTS

Products

PositionProduct
1WP8528278 Whirlpool Washer Fabric Softener Dispenser
2WP8533540 Whirlpool Retainer Clip
3WPW10109200 Whirlpool Screw
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6WP8538246 Whirlpool Agitator
7WP8537433 Whirlpool Agitator Cam
880040 Whirlpool Washer Agitator Dog Kit
9WP8055141 Whirlpool Bearing Assembly
10W11480892 Whirlpool Washer Agitator Auger
11W10429200 Whirlpool Retainer
12WP3947517 Whirlpool Agitator
13WPW10215108 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10349185 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17W10339098 Whirlpool Shield
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
21WP8533928 Whirlpool Refrigerator Screw
22W10780046 Whirlpool Suspension Rod Kit
23BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSIONBUSHINGS)
24W10440729 Whirlpool Suspension
25HARNESS, LOWER (INCLUDES ITEMS 26 & 28)
26WP353244 Whirlpool Hose
27W10005430 Whirlpool Clamp
28WPW10298887 Whirlpool Wire Tie Assembly
29WP3946997 Whirlpool Spring
