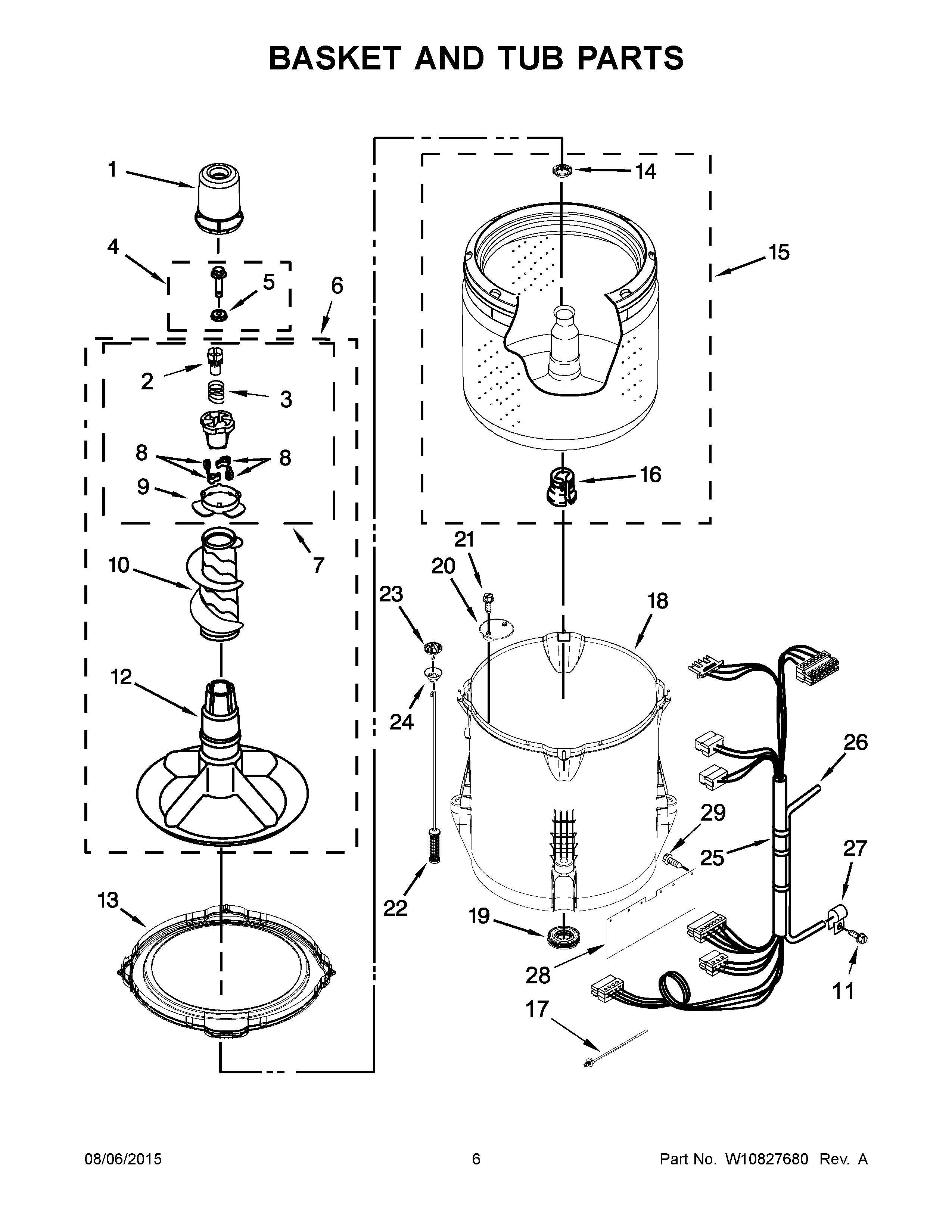

7MWTW1812AW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	WP8528278 Whirlpool Washer Fabric Softener Dispenser
2	WP8533540 Whirlpool Retainer Clip
3	WP3946997 Whirlpool Spring
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	WP8538246 Whirlpool Agitator
7	WP8537433 Whirlpool Agitator Cam
8	80040 Whirlpool Washer Agitator Dog Kit
9	WP8055141 Whirlpool Bearing Assembly
10	W11480892 Whirlpool Washer Agitator Auger
11	WPW10109200 Whirlpool Screw
12	WP3947517 Whirlpool Agitator
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10349185 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	WPW10339879 Whirlpool Wire Tie
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
23	W10780046 Whirlpool Suspension Rod Kit
24	W10440729 Whirlpool Suspension
25	HARNESS, LOWER (INCLUDES PRESSURE HOSE & CABLE TIE)
26	WP353244 Whirlpool Hose
27	W10005430 Whirlpool Clamp
28	W10339098 Whirlpool Shield
29	W10429200 Whirlpool Retainer
