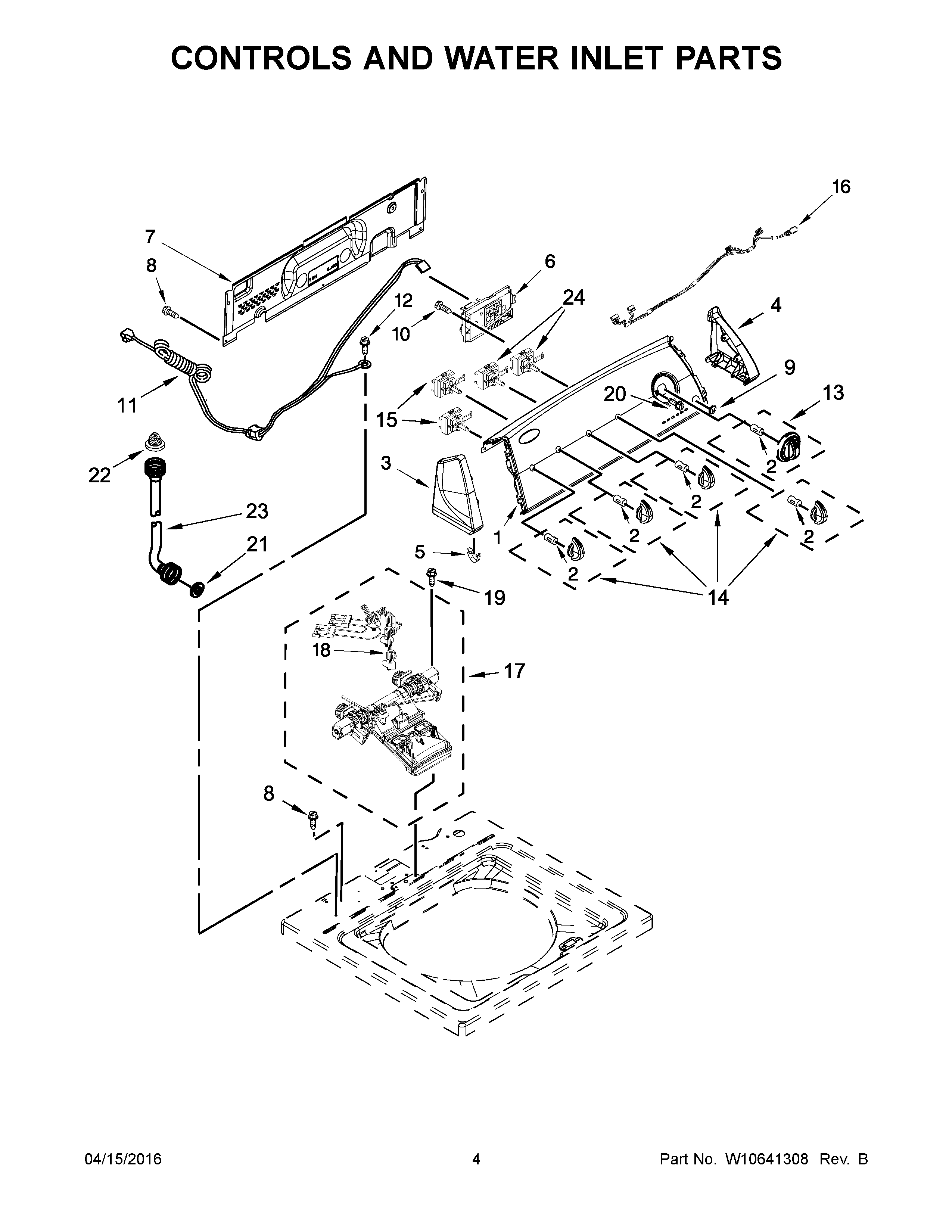

7MWTW1899BQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10723789 Whirlpool Electronic Control Board + Core
7	WPW10461159 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10251309 Whirlpool Push Button
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	WP8566061 Whirlpool Knob
14	Knob, Control
15	WPW10285512 Whirlpool Cycle Switch
16	WPW10291176 Whirlpool Wire Harness
17	WPW10683653 Whirlpool Valve Assembly
18	W10876654 Whirlpool Wire Harness
19	WP8281163 Whirlpool Refrigerator Screw
20	WP3400818 Whirlpool Screw
21	WP16123 Whirlpool Washer
22	285452A Whirlpool Hose Seal and Screen
23	WP89503 Whirlpool Washer Fill Hose
24	WPW10285511 Whirlpool Cycle Switch
